4907 Zebra

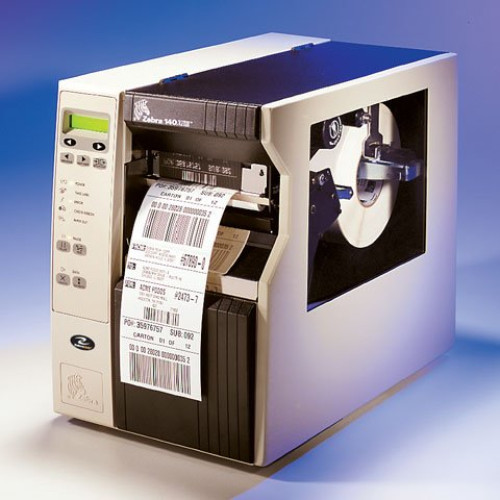

140-701-00000 - Zebra 140XiIIIPlus Bar code Printer

140XiIIIPlus, Thermal transfer Printing, 203 dpi, 5'
InStock
Free Shipping

Description

The 140XiIIIPlus is the fastest printer in Zebra's Xi Series printing at up to 12 inches per second (ips). With such powerful performance and steel construction it is the ideal choice for high-volume mission-critical applications with 24-hour duty cycles. The 140XiIIIPlus is also well-suited for applications in which labels are required quickly either on demand or in batches.
  • 32-bit RISC and CISC processors
  • Construction: 12-gauge steel frame
  • Multilingual backlit LCD display
  • PCMCIA socket
  • Transmissive and Reflective Media Sensors
  • ZebraLink

Additional Information

Print Speed 12
Printer Type Industrial
Print Method Thermal Transfer
Print Resolution 203 dpi
Interface Options USB
Maximum Print Width 5.04
Filter Filter
Manufacturer Zebra

Technical Information

  • Print Method:
    • Thermal Transfer (TT)
    • Direct Thermal
    • Direct Thermal (DT)
  • Print Resolution:
    • 200 dpi
    • 203 dpi
  • Print Speed: 12 ips
  • Interfaces:
    • 1 x Parallel
    • 1 x Serial
    • 1 x USB
  • Maximum Print Width: 5.04"
  • Maximum Label Width: 5.63"
  • Printer Language: ZPL II
  • Input Voltage: 120 V AC
  • RAM Memory: 16MB
  • Media Sensor:
    • Transmissive
    • Reflective
  • Input Voltage Range: 90 to 264 V AC
  • Mobile Printer: No

General Information

Physical Characteristics

  • Dimensions:
    • 15.5" (393.7mm) x 11.15" (283.21mm) x 19.5" (495mm)
    • 15.5" (393.7mm) x 11.15" (283.21mm) x x 19.5" (495mm)
  • Weight: 55 lb (24.95 kg)

Included Features

  • Included Features: Clear Media Side Door & Media Hanger

Agency Approvals

  • Agency Approvals:
    • FCC Class B
    • EN55024: 1998
    • R.O.C. CNS 13438
    • Australia AS/NZS 3548
    • EN55022: 1998 Class B
    • Argentina 92/98 Phase 3
    • Canadian ICES-003, Class B
    • EN61000-3-2,3 W/amendment A12
    • IEC 950/EN60950: 1992 W/amendments 1 thru 4 (CB Scheme)
    • Bi-National UL 60950 3rd edition/CSA CAN/CSA-C22.2 No. 60950-00 Third Edition

Other

  • Package Contents:
    • Zebra 140XiIIIPlus Label Printer
    • User's Guide
    • Utilities & Driver's CD
    • 140XiIIIPlus Label Printer
    • Xi IIIPlus User's Guide
    • Utility & Driver CD
    • ZebraNet Connectivity CD
    • North American Edition Power Cord

Environmental Conditions

  • Temperature:
    • 41°F (5°C) to 104°F (40°C) Operating
    • -40°F (-40°C) to 140°F (60°C) Storage
  • Humidity:
    • 20 to 85% Operating
    • 5 to 85% Storage

Media Characteristics

  • Maximum Label Roll Diameter: 8"
  • Label Core Size: 3"
  • Ribbon Core Size: 1"
  • Ribbon Setup: Wound Out

Warranty

  • Manufacturer Warranty:
    • 1 Year(s)
    • 1 Year(s) Limited
