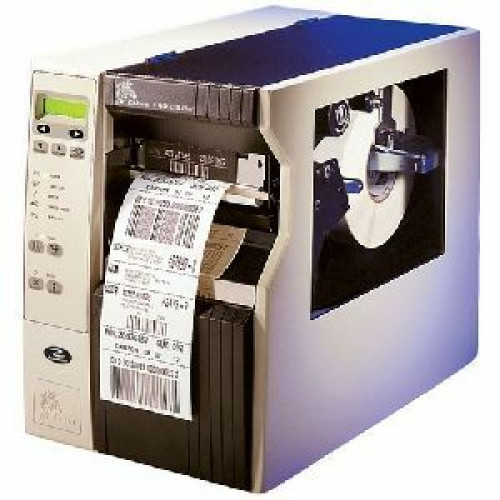

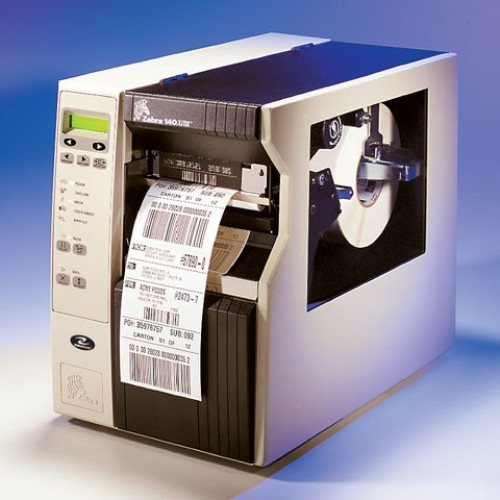

Zebra 140XiIIIPlus Barcode Label Printer
Part #: 140-741-00100 | SKU: ZEB15878

The 140XiIIIPlus is the fastest printer in Zebra's Xi Series printing at up to 12 inches per second (ips). With such powerful performance and steel construction it is the ideal choice for high-volume mission-critical applications with 24-hour duty cycles. The 140XiIIIPlus is also well-suited for applications in which labels are required quickly either on demand or in batches.

Zebra 140XiIIIPlus Barcode Label Printer

Part Details: Direct Thermal/Thermal Transfer Printing, 203 DPI, 5” Print Width, Ethernet/RS-232/Parallel Interfaces, Cutter. Includes US power supply. Interface cables sold separately: USB (Part# 13172), Parallel (Part# 02798), RS-232(Part# 52184).

Additional Information

Interface Options Parallel, Serial (RS-232)
Manufacturer Zebra
Max Label Width 5.51
Max Roll Outer Diameter 8
Model Name 140XiIIIPlus
Print Resolution 203 dpi
Print Speed 12 ips
Printer Options Cutter
Printer Type Industrial
Printing Technology Thermal Transfer
Ribbon Core Size 1 inch

Technical Information

  • Print Method:
    • Thermal Transfer (TT)
    • Direct Thermal
    • Direct Thermal (DT)
  • Print Resolution:
    • 200 dpi
    • 203 dpi
  • Print Speed: 12 ips
  • Interfaces:
    • 1 x RJ-45 10 Base-T Ethernet
    • 1 x Serial
    • 1 x USB
    • 1 x Ethernet
  • Maximum Print Width: 5.04"
  • Maximum Label Width: 5.63"
  • Printer Language: ZPL II
  • Input Voltage: 120 V AC
  • RAM Memory: 16MB
  • Media Sensor:
    • Reflective
    • Transmissive
  • Input Voltage Range: 90 to 264 V AC
  • Mobile Printer: No

General Information

Physical Characteristics

  • Dimensions:
    • 15.5" (393.7mm) x 11.15" (283.21mm) x 19.5" (495mm)
    • 15.5" (393.7mm) x 11.15" (283.21mm) x x 19.5" (495mm)
  • Weight: 55 lb (24.95 kg)

Included Features

  • Included Features:
    • Cutter
    • Internal ZebraNet PrintServer II
    • Clear Media Side Door & Media Hanger

Agency Approvals

  • Agency Approvals:
    • FCC Class B
    • EN55024: 1998
    • R.O.C. CNS 13438
    • Australia AS/NZS 3548
    • EN55022: 1998 Class B
    • Argentina 92/98 Phase 3
    • Canadian ICES-003, Class B
    • EN61000-3-2,3 W/amendment A12
    • IEC 950/EN60950: 1992 W/amendments 1 thru 4 (CB Scheme)
    • Bi-National UL 60950 3rd edition/CSA CAN/CSA-C22.2 No. 60950-00 Third Edition

Other

  • Package Contents:
    • Zebra 140XiIIIPlus Label Printer
    • User's Guide
    • Utilities & Driver's CD
    • ZebraNet Connectivity CD
    • 140XiIIIPlus Label Printer
    • Xi IIIPlus User's Guide
    • Utility & Driver CD
    • North American Edition Power Cord

Environmental Conditions

  • Temperature:
    • 41°F (5°C) to 104°F (40°C) Operating
    • -40°F (-40°C) to 140°F (60°C) Storage
  • Humidity:
    • 20 to 85% Operating
    • 5 to 85% Storage

Media Characteristics

  • Maximum Label Roll Diameter: 8"
  • Label Core Size: 3"
  • Ribbon Core Size: 1"
  • Ribbon Setup: Wound Out

Warranty

  • Manufacturer Warranty:
    • 1 Year(s)
    • 1 Year(s) Limited
Extended Details
