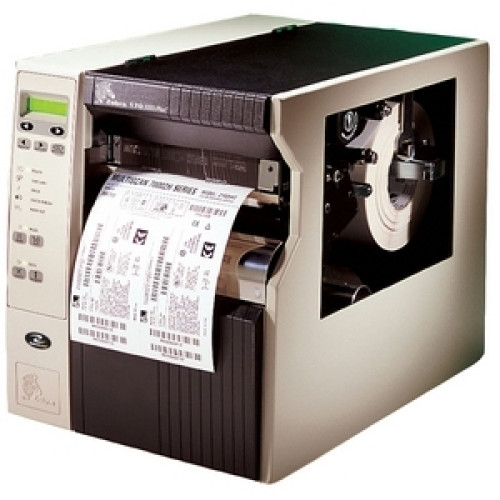

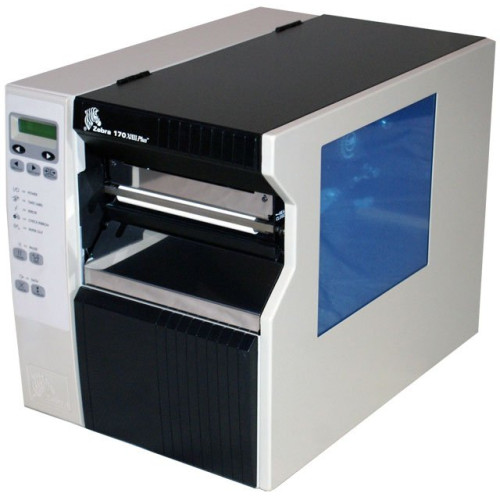

Zebra 170XiIIIPlus Barcode Label Printer Zebra 170XiIIIPlus Barcode Label Printer

Zebra 170XiIIIPlus Barcode Label Printer
Part #: 170-741-00000 | SKU: ZEB5839

The industrial-strength 170XiIIIPlus has a 12-gauge steel frame 300dpi print resolution and the ability to print labels up to 6.6 inches wide at eight inches per second (ips). Tough compliance labeling applications are no match for the 170XiIIIPlus since it can easily print large numbers of AIAG ODETTE UCC-EAN-128 and other compliance labels on demand or in batches.

Zebra 170XiIIIPlus Barcode Label Printer

Part Details: Thermal Transfer Industrial Printer (300 dpi, Ethernet, USB, Serial (RS-232), and Parallel interfaces, 6.6" max print width, 16MB SDRAM, Clear Media Side Door & Media Hanger). Includes power supply. Cables sold separately. See accessories.
Need a different version of the Zebra 170XiIIIPlus Barcode Label Printer? View all 20 configurations

Additional Information

Interface Options Ethernet, Serial (RS-232), USB
Manufacturer Zebra
Max Roll Outer Diameter 8
Model Name 170XiIIIPlus
Print Resolution 305 dpi
Print Speed 8 ips
Printer Type Industrial
Printing Technology Thermal Transfer
Ribbon Core Size 1 inch
Zebra 170XiIIIPlus Specs Zebra 170XiIIIPlus Specs (pdf)

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Brand Name: Zebra
  • Manufacturer: Zebra Technologies Corporation
  • Product Model: 170XiIIIPlus
  • Product Name: 170XiIIIPlus Thermal Label Printer

Technical Information

  • Maximum Mono Print Speed: 12 in/s
  • Maximum Print Width: 6.60"
  • Recommended Use: Label Print

Physical Characteristics

  • Height: 15.5"
  • Width: 13.2"
  • Depth: 19.5"

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes

Other

  • Package Contents:
    • 170Xiii Plus Label Printer
    • Xi IIIPlus User's Guide
    • Utility & Driver CD
    • ZebraNet Connectivity CD
    • North American Edition Power Cord
    • 170Xiii Plus Label Printer
    • Xi IIIPlus User's Guide
    • Utility & Driver CD
    • ZebraNet Connectivity CD
    • North American Edition Power Cord
  • Certifications & Standards:
    • Class B
    • FCC Class B
    • EN55024: 1998
    • R.O.C. CNS 13438
    • Canadian ICES-003
    • Australia AS/NZS 3548
    • EN55022: 1998 Class B
    • Argentina 92/98 Phase 3
    • EN61000-3-2,3 W/amendment A12
    • IEC 950/EN60950: 1992 W/amendments 1 thru 4 (CB Scheme
    • Bi-National UL 60950 3rd edition/CSA CAN/CSA-C22.2 No. 60950-00 Third Edition

Media Types & Handling

  • Maximum Label Width: 6.60"
  • Maximum Label Length: 39"
  • Media Sensor:
    • Reflective Media Sensor
    • Transmissive Media Sensor
  • Label Core Size: 3"
  • Ribbon Core Size: 1"
  • Maximum Roll Diameter: 8"

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC

Memory

  • Standard Memory: 16 MB
  • Flash Memory: 4 MB

Network & Communication

  • Ethernet: Yes
  • Ethernet Technology: Ethernet

Warranty

  • Limited Warranty: 1 Year

Fonts & Emulation

  • Language Emulation: ZPL II
Extended Details
