16651 Zebra

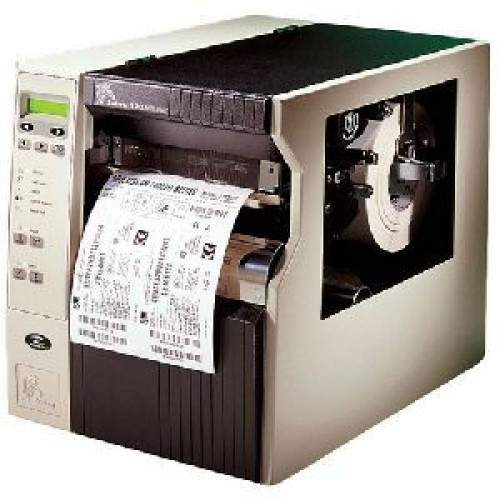

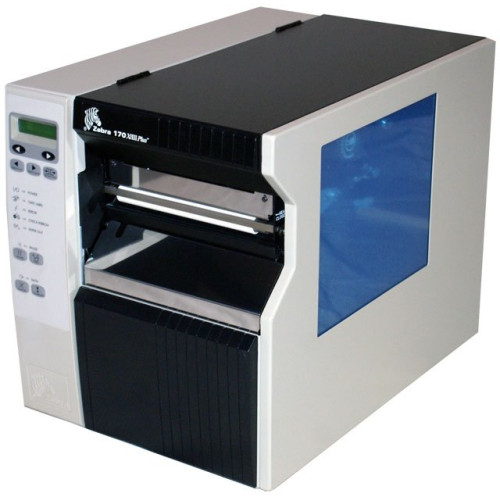

172-741-00000 - Zebra 170XiIIIPlus Bar code Printer

170XiIIIPlus, Thermal transfer printing, RFID ready, 203 dpi, 6.6" print width, Ethernet/USB/RS-232/Parallel interfaces. Includes US power supply. Interface cables sold separately.
InStock
Free Shipping

Description

The industrial-strength 170XiIIIPlus has a 12-gauge steel frame 300dpi print resolution and the ability to print labels up to 6.6 inches wide at eight inches per second (ips). Tough compliance labeling applications are no match for the 170XiIIIPlus since it can easily print large numbers of AIAG ODETTE UCC-EAN-128 and other compliance labels on demand or in batches.
  • Handles everything from paper to specialty label/tag stocks
  • Offers a wide range of connectivity solutions
  • Offers wide width capabilities
  • Satisfies high-volume media requirements

Additional Information

Print Speed 8
Printer Type Industrial
Print Method Thermal Transfer
Print Resolution 203 dpi
Interface Options USB
Maximum Print Width 6.60
Filter Filter
Manufacturer Zebra

Technical Information

  • Print Method:
    • Direct Thermal
    • Thermal Transfer (TT)
    • Direct Thermal (DT)
  • Print Resolution: 203 dpi
  • Print Speed: 8 ips
  • Interfaces:
    • 1 x Serial
    • 1 x 10 Base-T Ethernet
    • 1 x USB
    • 1 x Ethernet
  • Maximum Print Width: 6.6"
  • Maximum Label Width: 7.1"
  • Maximum Label Length: 39"
  • Media Sensor:
    • Transmissive
    • Reflective
  • Printer Language: ZPL II
  • Input Voltage Range: 90 to 264 V AC
  • RAM Memory: 16MB
  • Flash Memory: 4MB
  • Input Voltage: 120 V AC
  • Mobile Printer: No

General Information

Physical Characteristics

  • Dimensions:
    • 15.5" (393.7mm) x 13.15" (334.01mm) x 19.5" (495mm)
    • 15.5" (393.7mm) x 13.15" (334.01mm) x x 19.5" (495mm)
  • Weight: 67 lb (30.39 kg)

Included Features

  • Included Features:
    • Clear Media Side Door & Media Hanger
    • Internal ZebraNet PrintServer II

Agency Approvals

  • Agency Approvals:
    • BSMI
    • CB
    • CCC
    • CE
    • C-Tick
    • cUL
    • EN55022 Class B
    • EN55024
    • EN6100-3-2,3
    • FCC Class B
    • GOST-R
    • ICES-003 Class B
    • IEC 60950-1 / EN60950
    • NOM
    • S Mark
    • VCCI
    • ZIK
    • R.O.C. CNS 13438
    • Australia AS/NZS 3548
    • Argentina 92/98 Phase 3
    • Bi-National UL 60950 Third Edition/CSA /CAN/CSA-C22.2 No. 60950-00 Third Edition

Other

  • Package Contents:
    • 170XiIIIPlus Label Printer
    • User Guide
    • Accessories CD
    • ZebraNet Connectivity CD for PrintServer II
    • 120 VAC Power Cord
    • Xi IIIPlus User's Guide
    • Utility & Driver CD
    • ZebraNet Connectivity CD
    • North American Edition Power Cord

Environmental Conditions

  • Temperature:
    • 32°F (0°C) to 104°F (40°C) Operating - Direct Thermal
    • 41°F (5°C) to 104°F (40°C) Operating - Thermal Transfer
    • -40°F (-40°C) to 140°F (60°C) Storage
  • Humidity:
    • 20 to 85% Operating Non-condensing
    • 5 to 85% Storage Non-condensing

Media Characteristics

  • Maximum Label Roll Diameter: 8"
  • Label Core Size: 3"
  • Ribbon Core Size: 1"
  • Ribbon Setup: Wound Out

Warranty

  • Manufacturer Warranty: 1 Year(s) Limited
