16641 Zebra

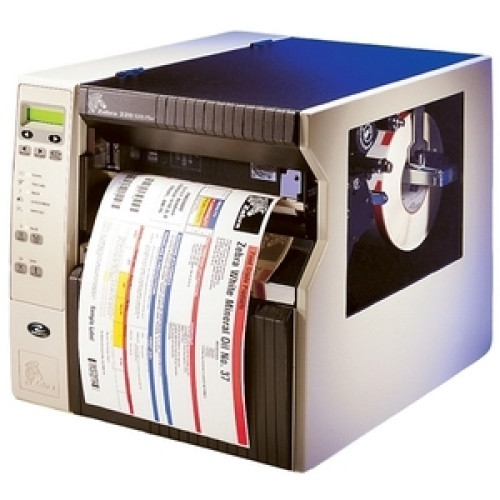

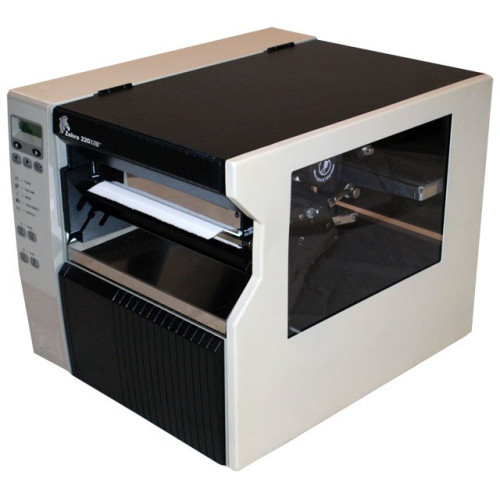

Zebra 220XiIIIPlus Bar code Printer Part # 220-741-00200

The 220XiIIIPlus quickly prints labels up to 8.5 inches wide at 10 inches per second (ips). It is ideal for wide label applications such as printing chemical drum labels primary metal standard labels automotive industry labels banner-sized labels and pallet and container shipping labels.

220-741-00200 - Zebra 220XiIIIPlus Bar code Printer

Part Details: 220XiIIIPlus, Thermal transfer Industrial Printer (203 dpi, Ethernet, USB, Parallel, and Serial (RS-232) interfaces, 8.5" max print width, 16MB SDRAM, Rewinder, Clear Media Side Door & Media Hanger). Includes power supply. Cables sold separately. See accessories.
InStock

Additional Information

Filter Filter
Interface Options Serial, USB
Label Core 3 inches
Manufacturer Zebra
Max Label Width 8.80
Max Roll Outer Diameter 8
Maximum Print Width 8.50
Print Method Thermal Transfer
Print Resolution 203 dpi
Print Speed 10
Printer Mobility Not Mobile
Printer Type Industrial
Product Condition New
Ribbon Core 1
  • 203 dpi Resolution (8 dots per mm)
  • Core Diameter: 3
  • Label Ribbon Roll Diameter: 8
  • Maximum Label Length (with Standard Memory): 39
  • Maximum Label Width: 8.8
  • Minimum Label Gap: 2 mm
  • Print width: 8.50
  • Programmable Print speeds: 2.4
  • Reflective Media Sensor
  • Ribbon Outside Diameter: 3.2
  • Thin Film Printhead with Element Energy Equalizer (E3) ASIC
  • Total Thickness: .003
  • Transmissive Media Sensor
  • Construction: 12-gauge steel frame
  • Zebra printer driver for Win 95/98, Win ME, Win NT 4.0, Win 2000, and Win XP
  • Advanced media-ribbon counter
  • Multi-level Element Energy Equalizer (E3) for superior print quality
  • PCMCIA socket
  • Serial and parallel ports
  • Single 32 bit 133 MHz RISC processor
  • Unicode - Compliant
  • Widest print width
  • Print methods: Thermal transfer or direct thermal
  • Transmissive and reflective media sensors
  • USB 2.0 port
  • 16 MB SDRAM, 4 MB non-volatile Flash memory
  • 300 unique darkness settings
  • Multilingual backlit LCD display
  • CompactFlash (up to 1 GB memory) for added label format/font storage
  • Enhanced Alert notification -- monitors printhead condition
  • ZebraLink Solutions

Technical Information

  • Print Method:
    • Thermal Transfer (TT)
    • Direct Thermal
    • Direct Thermal (DT)
  • Print Resolution: 203 dpi
  • Print Speed: 10 ips
  • Interfaces:
    • 1 x RS-232 Serial
    • 1 x 10 Base-T Ethernet
    • 1 x USB
    • 1 x Serial
    • 1 x Ethernet
  • Maximum Print Width: 8.5"
  • Maximum Label Width: 8.8"
  • Maximum Label Length: 39"
  • Media Sensor:
    • Transmissive
    • Reflective
  • Printer Language: ZPL II
  • Input Voltage Range: 90 to 264 V AC
  • RAM Memory: 16MB
  • Flash Memory: 4MB
  • Input Voltage: 120 V AC
  • Mobile Printer: No

General Information

Physical Characteristics

  • Dimensions:
    • 15.5" (393.7mm) x 15.65" (397.51mm) x 19.5" (495mm)
    • 15.5" (393.7mm) x 15.65" (397.51mm) x x 19.5" (495mm)
  • Weight: 72 lb (32.66 kg)

Included Features

  • Included Features:
    • Internal ZebraNet PrintServer II
    • Clear Media Side Door & Media Hanger
    • Rewinder

Agency Approvals

  • Agency Approvals:
    • FCC Class B
    • EN55024: 1998
    • R.O.C. CNS 13438
    • Australia AS/NZS 3548
    • EN55022: 1998 Class B
    • Argentina 92/98 Phase 3
    • Canadian ICES-003, Class B
    • EN61000-3-2,3 W/amendment A12
    • IEC 950/EN60950: 1992 W/amendments 1 thru 4 (CB Scheme)
    • Bi-National UL 60950 3rd edition/CSA CAN/CSA-C22.2 No. 60950-00 Third Edition

Other

  • Package Contents:
    • Zebra 220XiIIIPlus Label Printer
    • User's Guide
    • 120 VAC Cord
    • Utilities & Driver's CD
    • 220XiIIIPlus Label Printer
    • Xi IIIPlus User's Guide
    • Utility & Driver CD
    • ZebraNet Connectivity CD
    • North American Edition Power Cord

Environmental Conditions

  • Temperature:
    • 41°F (5°C) to 104°F (40°C) Operating - Thermal Transfer
    • 32°F (0°C) to 104°F (40°C) Operating - Direct Thermal
    • -40 to 140°F (60°C) Storage
    • -40°F (-40°C) to 140°F (60°C) Storage
  • Humidity:
    • 20 to 85% Operating Non-condensing
    • 5 to 85% Storage Non-condensing

Media Characteristics

  • Maximum Label Roll Diameter: 8"
  • Label Core Size: 3"
  • Ribbon Core Size: 1"
  • Ribbon Setup: Wound Out

Warranty

  • Manufacturer Warranty:
    • 1 Year(s)
    • 1 Year(s) Limited
Extended Details

Recommended Accessories

Recommended Labels

  • Zebra Z-Ultimate 3000T Label (10011705)

    Z-Ultimate 3000T White, 3.5" x 1" Thermal transfer polyester label. 5,570 labels/roll, 4 roll case.
    Price: $662.95
    In Stock
  • Zebra Z-Ultimate 3000T Label (10011703)

    Z-Ultimate 3000T White, 3" x 2" Thermal transfer polyester label. 2,950 labels/roll, 4 roll case. Also available as a roll (Part# 10011703-R).
    Price: $551.64
    In Stock
  • Zebra Z-Ultimate 3000T Label (10011704)

    Z-Ultimate 3000T White, 3" x 3" Thermal transfer polyester label. Not perforated. 1,880 labels/roll, 4 roll case. Also available as a roll (Part# 10011704-R)
    Price: $496.79
    In Stock
  • Zebra Z-Ultimate 3000T Label (10011700)

    Z-Ultimate 3000T White, 2.5" x 0.5" Thermal transfer polyester label. 10,020 labels/roll, 4 roll case.
    Price: $479.66
    Ships in 3-5 Days
  • Zebra Z-Perform 1000D Label (10003051)

    Z-Perform 1000D, 4" x 2" Direct thermal paper label. 2760 labels/roll, 4 roll case.
    Price: $80.10
    In Stock

Recommended Printheads

  • Zebra Printheads Print head (G22000M)

    220XiII & 220XiIII, Replacement Printhead Kit, 203 dpi, Compatible Printer Model 220XiII & 220XiIII
    MSRP: $1,045.00 Price: $888.25
    In Stock - Ships Free
  • Zebra Printheads Print head (G47426M)

    220XiII & 220XiIII, Replacement printhead, 305 dpi.
    MSRP: $1,100.00 Price: $935.00
    Ship Free in 3-5 Days

Recommended Ribbons

  • Zebra 5586 Premium Wax-Resin Ribbon (05586BK11045)

    5586 Premium Wax-Resin, 4.33" x 1476' Black Wax-Resin Ribbon, Compatible with Industrial printers and Polypropylene Labels, rolls/case: 6, Core Size: 1", Available as a single roll (05586BK11045-R)
    Price: $285.28
    In Stock
  • Zebra 5586 Premium Wax-Resin Ribbon (05586BK04045)

    5586 Premium Wax-Resin, 1.57" x 1,476' Black Wax-Resin Ribbon. Compatible with Industrial Printers. 6 ribbon case. Used with polypropylene labels. Also available as a single roll (Part# 05586BK04045-R).
    Price: $103.54
    Ships in 3-5 Days
  • Zebra 5586 Premium Wax-Resin Ribbon (05586BK08945)

    5586 Premium Wax-Resin, 3.5" x 1476' Black Wax-Resin Ribbon, Compatible with Industrial printers and Polypropylene Labels, rolls/case: 6, Core Size: 1", Available as a single roll (05586BK08945-R)
    Price: $230.72
    In Stock
  • Zebra 5586 Premium Wax-Resin Ribbon (05586BK10245)

    5586 Premium Wax-Resin, 4" x 1476' Black Wax-Resin Ribbon, Compatible with Industrial printers and Polypropylene Labels, rolls/case: 6, Core Size: 1", Available as a single roll (05586BK10245-R)
    Price: $265.00
    In Stock
  • Zebra 5586 Premium Wax-Resin Ribbon (05586BK08345)

    5586 Premium Wax-Resin, 3.27" x 1476' Black Wax-Resin Ribbon, Compatible with Industrial printers and Polypropylene Labels, rolls/case: 6, Core Size: 1", Available as a single roll (05586BK08345-R)
    Price: $215.74
    In Stock
