121314 Zebra

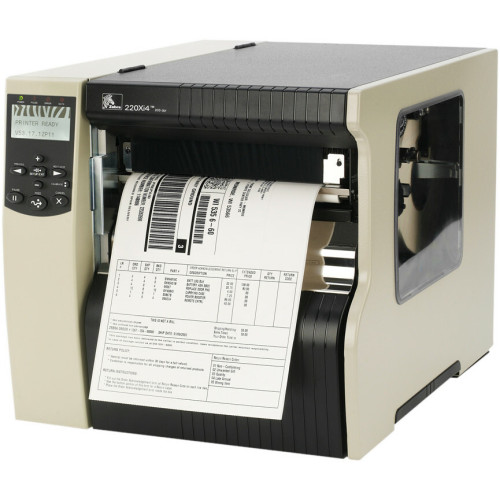

220-801-00000-GA - Zebra 220Xi4 Bar code Printer

220Xi4, Thermal transfer Industrial Printer (203 dpi, Ethernet, USB, Parallel, and Serial (RS-232) interfaces, 8.5" max print width, 16MB SDRAM, Clear Media Side Door & Media Hanger). Includes power supply. Cables sold separately. See accessories. This is the TAA compliant version of this product for government purchasers. Please Call for more information.
InStock
Call For Price
Ships In 3-5 Days
Free Shipping

Description

The Zebra 220Xi4 is designed to produce large labels up to 8.5" (216 mm) wide at 10" (254 mm) per second at 203 dpi and 6" per second at 300 dpi (152 mm) resolution. The 220Xi4 is ideal for industrial applications, including chemical drum (HAZMAT) identification labels, pallet/container shipping labels and product identification labels for large rolls of paper or textiles.
  • Print methods: Thermal transfer or direct thermal
  • 8.5\" max print width
  • 32 bit 133 MHz RISC processor
  • 8 MB Flash memory\"\"including 2.0 MB user-available non-volatile memory storage for downloadable objects
  • LCD content and navigation customizable to user needs
  • Flexible connectivity including simultaneous parallel/Ethernet
  • Advanced ribbon- and media-low LCD/e-mail alerts
  • On-board diagnostic tools and adjustments to ensure optimum print quality
  • Internal real-time clock
  • Auto calibration -printer calibrates when printer is turned on or when printhead is closed using approximately two labels
  • Thin film printhead with Element Energy Equalizer for superior print quality
  • Serial RS-232 and bi-directional parallel ports\"\"with auto detect
  • Internal ZebraNet 10/100 Print Server (Ethernet)
  • Dual media sensors - transmissive and reflective, selectable through software or front panel

Additional Information

Print Speed 10
Printer Type Industrial
Print Method Thermal Transfer
Print Resolution 203 dpi
Interface Options Ethernet
Maximum Print Width 8.50
Item Condition New
Filter Filter
Manufacturer Zebra

Recommended Accessories

Recommended Labels

Recommended Printheads  | View All Options

Recommended Ribbons  | View All Options

  • Zebra 5586 Premium Wax-Resin Ribbon (05586BK11045)

    5586 Premium Wax-Resin, 4.33" x 1476' Black Wax-Resin Ribbon, Compatible with Industrial printers and Polypropylene Labels, rolls/case: 6, Core Size: 1", Available as a single roll (05586BK11045-R)
    $288.19
    Ships Today
    - +
  • Zebra 5586 Premium Wax-Resin Ribbon (05586BK04045)

    5586 Premium Wax-Resin, 1.57" x 1,476' Black Wax-Resin Ribbon. Compatible with Industrial Printers. 6 ribbon case. Used with polypropylene labels. Also available as a single roll (Part# 05586BK04045-R).
    $104.59
    Ships Today
    - +
  • Zebra 5586 Premium Wax-Resin Ribbon (05586BK08945)

    5586 Premium Wax-Resin, 3.5" x 1476' Black Wax-Resin Ribbon, Compatible with Industrial printers and Polypropylene Labels, rolls/case: 6, Core Size: 1", Available as a single roll (05586BK08945-R)
    $233.06
    Ships Today
    - +
  • Zebra 5586 Premium Wax-Resin Ribbon (05586BK10245)

    5586 Premium Wax-Resin, 4" x 1476' Black Wax-Resin Ribbon, Compatible with Industrial printers and Polypropylene Labels, rolls/case: 6, Core Size: 1", Available as a single roll (05586BK10245-R)
    $267.69
    Ships In 3-5 Days
    - +
  • Zebra 5586 Premium Wax-Resin Ribbon (05586BK08345)

    5586 Premium Wax-Resin, 3.27" x 1476' Black Wax-Resin Ribbon, Compatible with Industrial printers and Polypropylene Labels, rolls/case: 6, Core Size: 1", Available as a single roll (05586BK08345-R)
    $217.93
    Ships Today
    - +

Recommended Warranties

  • Zebra 220Xi4 Service Contract (Z1RS-XI42-100)

    Service Contract - 1 year, Select, Renewal, Advanced Exchange, 220Xi4, 1 Years, Non-Comprehensive
    $410.00 $316.16
    Ships In 3-5 Days
    Free Shipping
    - +
  • Zebra 220Xi4 Service Contract (Z1R2-XI42-1C0)

    Service Contract - 1 year, Essential, Renewal, Second Business Day On-site (select counties only), 220Xi4, 1 Years, Comprehensive
    $750.00 $578.34
    Ships In 3-5 Days
    Free Shipping
    - +
  • Zebra 220Xi4 Service Contract (Z1R2-XI42-200)

    Service Contract - 2 year, Essential, Renewal, Second Business Day On-site (select counties only), 220Xi4, 2 Years, Non-Comprehensive
    $790.00 $609.18
    Ships In 3-5 Days
    Free Shipping
    - +
  • Zebra 220Xi4 Service Contract (Z1B4-XI42-300)

    Service Contract - 3 year, Select, Purchased after 30 days of Device, Same Business Day On-site (select counties only), 220Xi4, 3 Years, Non-Comprehensive
    $2,755.00 $2,124.41
    Ships In 3-5 Days
    Free Shipping
    - +
  • Zebra 220Xi4 Service Contract (Z1R4-XI42-2C0)

    Service Contract - 2 year, Select, Renewal, Same Business Day On-site (select counties only), 220Xi4, 2 Years, Comprehensive
    $2,078.00 $1,602.36
    Ships In 3-5 Days
    Free Shipping
    - +

Technical Information

  • Maximum Mono Print Speed: 10 in/s
  • Maximum Print Resolution: 203 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 8.50"
  • Recommended Use: Label Print
  • Features: LCD Display
  • Barcode Symbology Supported:
    • Code 11
    • Code 39
    • Code 93
    • Code 128
    • Code 128-B
    • Code 128-A
    • Code 128-C
    • Code 128 UCC
    • UPC-A
    • UPC-E
    • EAN-8
    • EAN-13
    • UPC 2 or 5 Digit Extension
    • EAN With 2 or 5 Digit Extension
    • Plessey
    • POSTNET
    • Standard 2 of 5
    • Industrial 2 of 5
    • Interleaved 2 of 5
    • LOGMARS
    • MSI
    • Planet Code
    • Codabar
    • Codablock
    • PDF-417
    • Code 49
    • Data Matrix
    • Maxi Code
    • QR Code
    • TLC 39
    • Micro PDF
    • Aztec Code
    • RSS
    • GS1 DataBar

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Product Series: Xi
  • Brand Name: Zebra
  • Manufacturer: Zebra Technologies Corporation
  • Product Model: 220Xi4
  • Product Name: 220Xi4 Thermal Label Printer

Physical Characteristics

  • Height: 15.5"
  • Width: 15.8"
  • Depth: 20.4"

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes
  • Parallel Port: Yes

Media Types & Handling

  • Maximum Label Width: 8.80"
  • Maximum Label Length: 12.50 ft
  • Media Type:
    • Black Mark
    • Continuous Form
    • Roll Fed
    • Die-cut Label
    • Fanfold
  • Media Thickness: 12 mil
  • Media Sensor:
    • Transmissive Media Sensor
    • Reflective Media Sensor
  • Label Core Size: 1"
  • Ribbon Core Size: 1"
  • Maximum Roll Diameter: 3.20"

Other

  • Platform Supported: PC
  • Package Contents:
    • 220Xi4 Thermal Label Printer
    • North American Edition Power Cord
    • Xi4 User's Guid
    • ZebraNet Connectivity CD
    • 220Xi4 Thermal Label Printer
    • North American Edition Power Cord
    • Xi4 User's Guid
    • ZebraNet Connectivity CD
  • Certifications & Standards: TAA

Fonts & Emulation

  • Language Emulation:
    • XML
    • ZPL II

Memory

  • Standard Memory: 16 MB
  • Memory Technology: SDRAM
  • Flash Memory: 8 MB

Power Description

  • Input Voltage: 110 V AC
  • Power Source: AC Supply

Network & Communication

  • Ethernet: Yes
  • Ethernet Technology: Fast Ethernet

Warranty

  • Limited Warranty: 1 Year

Display & Graphics

  • Display Screen Type: LCD
