81682 Zebra

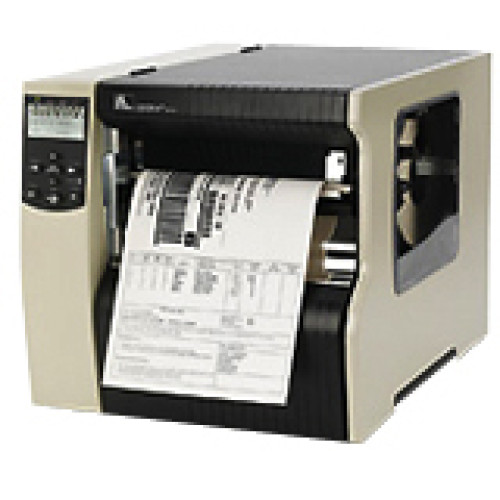

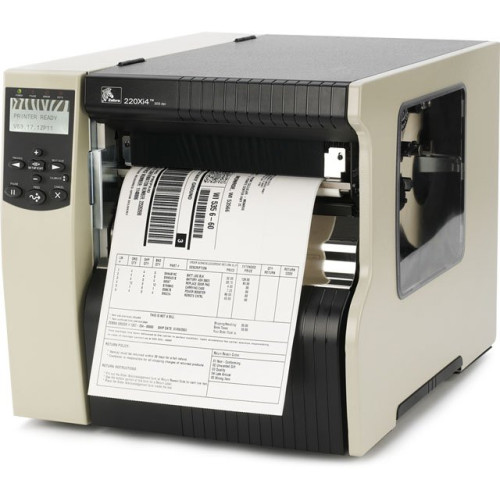

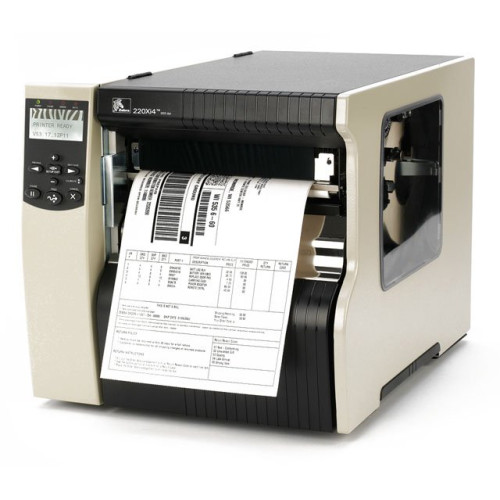

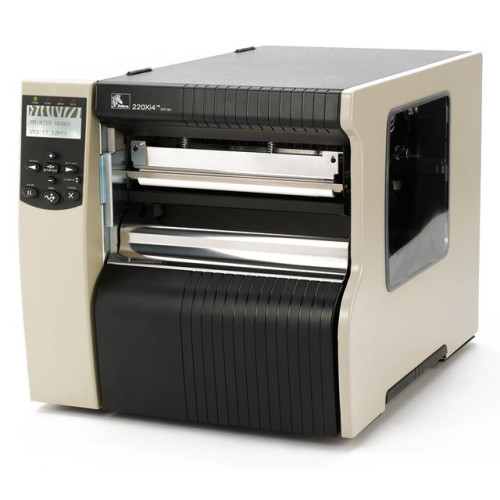

220-801-00000 - Zebra 220Xi4 Bar code Printer

220Xi4, Thermal Transfer Industrial Printer (203 dpi, Ethernet, USB, Parallel, and Serial (RS-232) interfaces, 8.5" max print width, 16MB SDRAM, Clear Media Side Door & Media Hanger). Includes power supply. Cables sold separately. See accessories.
InStock
$6,980.00 $5,933.00
Ships Today
Free Shipping
- +

Description

The Zebra 220Xi4 is designed to produce large labels up to 8.5" (216 mm) wide at 10" (254 mm) per second at 203 dpi and 6" per second at 300 dpi (152 mm) resolution. The 220Xi4 is ideal for industrial applications, including chemical drum (HAZMAT) identification labels, pallet/container shipping labels and product identification labels for large rolls of paper or textiles.
  • Print methods: Thermal transfer or direct thermal
  • 8.5\" max print width
  • 32 bit 133 MHz RISC processor
  • 8 MB Flash memory\"\"including 2.0 MB user-available non-volatile memory storage for downloadable objects
  • LCD content and navigation customizable to user needs
  • Flexible connectivity including simultaneous parallel/Ethernet
  • Advanced ribbon- and media-low LCD/e-mail alerts
  • On-board diagnostic tools and adjustments to ensure optimum print quality
  • Internal real-time clock
  • Auto calibration -printer calibrates when printer is turned on or when printhead is closed using approximately two labels
  • Thin film printhead with Element Energy Equalizer for superior print quality
  • Serial RS-232 and bi-directional parallel ports\"\"with auto detect
  • Internal ZebraNet 10/100 Print Server (Ethernet)
  • Dual media sensors - transmissive and reflective, selectable through software or front panel

Additional Information

Print Speed 10
Printer Type Industrial
Print Method Thermal Transfer
Print Resolution 203 dpi
Included Features ZPL2
Interface Options Ethernet
Labels Per Day more than 10,000
Maximum Print Width 8.50
Item Condition New
Filter Filter
Manufacturer Zebra

Recommended Accessories

Accessories, Kit (RTU Spindle) for the 220Xi3+ and Xi4
$220.00 $149.11
Ships In 3-5 Days
Free Shipping
- +
Accessories, Kit Ribbon Supply Spindle 140Xi4
$175.00 $142.33
Ships In 3-5 Days
Free Shipping
- +
Accessories, Kit Drive Motor with Pulley 203 dpi 220Xi4/Xi3+
$328.00 $266.77
Ships In 3-5 Days
Free Shipping
- +
Accessories, Kit Peel Tear bar 110Xi4
$31.00 $28.91
Ships In 3-5 Days
Free Shipping
- +
Accessories, Roller .37 x .312 x 4.437
$25.25
Ships In 3-5 Days
Free Shipping
- +

Recommended Labels

Z-Ultimate 3000T White, 3.5" x 1" Thermal transfer polyester label. 5,570 labels/roll, 4 roll case.
$623.28
Ships In 3-5 Days
- +
Z-Ultimate 3000T White, 3" x 2" Thermal transfer polyester label. 2,950 labels/roll, 4 roll case. Also available as a roll (Part# 10011703-R).
$535.82
Ships Today
- +
Z-Ultimate 3000T White, 3" x 3" Thermal transfer polyester label. Not perforated. 1,880 labels/roll, 4 roll case. Also available as a roll (Part# 10011704-R)
$482.52
Ships Today
- +
Z-Ultimate 3000T White, 2.5" x 0.5" Thermal transfer polyester label. 10,020 labels/roll, 4 roll case.
$465.87
Ships In 3-5 Days
- +
Z-Perform 1000D, 4" x 2" Direct thermal paper label. 2760 labels/roll, 4 roll case.
$77.79
Ships Today
- +

Recommended Printheads

220Xi4, Replacement Printhead Kit, 203 dpi, Compatible Printer Model 220Xi4
$950.00 $807.50
Ships In 3-5 Days
Free Shipping
- +
220Xi4, Replacement printhead, 305 dpi.
$1,000.00 $850.00
Ships Today
Free Shipping
- +

Recommended Ribbons

5586 Premium Wax-Resin, 4.33" x 1476' Black Wax-Resin Ribbon, Compatible with Industrial printers and Polypropylene Labels, rolls/case: 6, Core Size: 1", Available as a single roll (05586BK11045-R)
$288.19
Ships Today
- +
5586 Premium Wax-Resin, 1.57" x 1,476' Black Wax-Resin Ribbon. Compatible with Industrial Printers. 6 ribbon case. Used with polypropylene labels. Also available as a single roll (Part# 05586BK04045-R).
$104.59
Ships Today
- +
5586 Premium Wax-Resin, 3.5" x 1476' Black Wax-Resin Ribbon, Compatible with Industrial printers and Polypropylene Labels, rolls/case: 6, Core Size: 1", Available as a single roll (05586BK08945-R)
$233.06
Ships Today
- +
5586 Premium Wax-Resin, 4" x 1476' Black Wax-Resin Ribbon, Compatible with Industrial printers and Polypropylene Labels, rolls/case: 6, Core Size: 1", Available as a single roll (05586BK10245-R)
$267.69
Ships In 3-5 Days
- +
5586 Premium Wax-Resin, 3.27" x 1476' Black Wax-Resin Ribbon, Compatible with Industrial printers and Polypropylene Labels, rolls/case: 6, Core Size: 1", Available as a single roll (05586BK08345-R)
$217.93
Ships Today
- +

Recommended Warranties

Service Contract - 1 year, Select, Renewal, Advanced Exchange, 220Xi4, 1 Years, Non-Comprehensive
$410.00 $316.16
Ships In 3-5 Days
Free Shipping
- +
Service Contract - 1 year, Essential, Renewal, Second Business Day On-site (select counties only), 220Xi4, 1 Years, Comprehensive
$750.00 $578.34
Ships In 3-5 Days
Free Shipping
- +
Service Contract - 2 year, Essential, Renewal, Second Business Day On-site (select counties only), 220Xi4, 2 Years, Non-Comprehensive
$790.00 $609.18
Ships In 3-5 Days
Free Shipping
- +
Service Contract - 3 year, Select, Purchased after 30 days of Device, Same Business Day On-site (select counties only), 220Xi4, 3 Years, Non-Comprehensive
$2,755.00 $2,124.41
Ships In 3-5 Days
Free Shipping
- +
Service Contract - 2 year, Select, Renewal, Same Business Day On-site (select counties only), 220Xi4, 2 Years, Comprehensive
$2,078.00 $1,602.36
Ships In 3-5 Days
Free Shipping
- +

Technical Information

  • Maximum Mono Print Speed: 10 in/s
  • Maximum Print Resolution: 203 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 8.50"
  • Recommended Use: Label Print
  • Features: LCD Display
  • Barcode Symbology Supported:
    • Code 11
    • Code 39
    • Code 93
    • Code 128
    • Code 128-B
    • Code 128-A
    • Code 128-C
    • Code 128 UCC
    • UPC-A
    • UPC-E
    • EAN-8
    • EAN-13
    • UPC 2 or 5 Digit Extension
    • EAN With 2 or 5 Digit Extension
    • Plessey
    • POSTNET
    • Standard 2 of 5
    • Industrial 2 of 5
    • Interleaved 2 of 5
    • LOGMARS
    • MSI
    • Planet Code
    • Codabar
    • Codablock
    • PDF-417
    • Code 49
    • Data Matrix
    • Maxi Code
    • QR Code
    • TLC 39
    • Micro PDF
    • Aztec Code
    • RSS
    • GS1 DataBar

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Product Series: Xi
  • Brand Name: Zebra
  • Manufacturer: Zebra Technologies Corporation
  • Product Model: 220Xi4
  • Product Name: 220Xi4 Thermal Label Printer

Physical Characteristics

  • Height: 15.5"
  • Width: 15.8"
  • Depth: 20.4"

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes
  • Parallel Port: Yes

Other

  • Platform Supported: PC
  • Package Contents:
    • 220Xi4 Thermal Label Printer
    • North American Edition Power Cord
    • Xi4 User's Guid
    • ZebraNet Connectivity CD
    • 220Xi4 Thermal Label Printer
    • North American Edition Power Cord
    • Xi4 User's Guid
    • ZebraNet Connectivity CD
  • Additional Information:
    • Auto calibration
    • Unicode Compliant
    • Intelligent printhead
    • 300 unique darkness settings
    • Improved head test for element out
    • Construction: 12-gauge steel frame
    • Single 32 bit 133 Mhz RISC processor
    • Multi-level Element Energy Equalizer
    • Clear Media Side Door and Media Hanger
    • Automatic media/ribbon sensing capability
    • Mirror feature allows user-defined printer configurations to be retrieved from the network

Media Types & Handling

  • Maximum Label Width: 8.80"
  • Maximum Label Length: 12.50 ft
  • Media Type:
    • Black Mark
    • Continuous Form
    • Roll Fed
    • Die-cut Label
    • Fanfold
  • Media Thickness: 12 mil
  • Media Sensor:
    • Transmissive Media Sensor
    • Reflective Media Sensor
  • Label Core Size: 1"
  • Ribbon Core Size: 1"
  • Maximum Roll Diameter: 3.20"

Fonts & Emulation

  • Language Emulation:
    • XML
    • ZPL II

Memory

  • Standard Memory: 16 MB
  • Memory Technology: SDRAM
  • Flash Memory: 8 MB

Network & Communication

  • Ethernet: Yes
  • Ethernet Technology: Fast Ethernet

Warranty

  • Limited Warranty: 1 Year

Power Description

  • Input Voltage: 110 V AC
