47572 Zebra

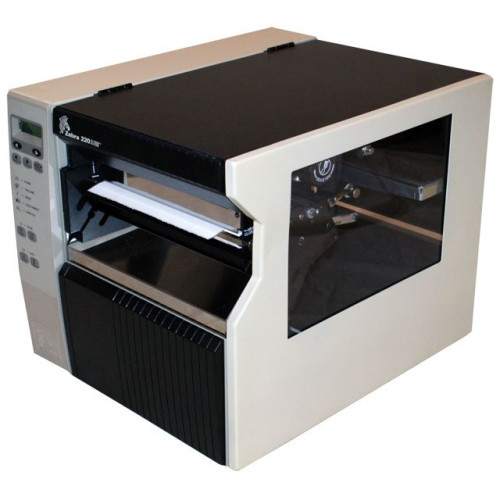

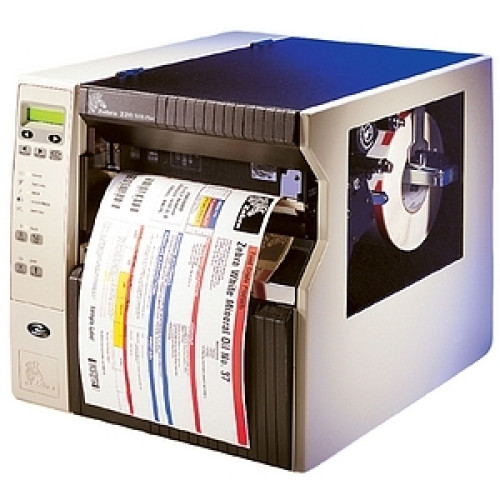

223-7A1-00200 - Zebra 220XiIIIPlus Bar code Printer

220XiIIIPlus, Thermal transfer Industrial Printer (300 dpi, Ethernet, USB, Parallel, and Serial (RS-232) interfaces, 8.5" max print width, 16MB SDRAM, Rewinder and Peeler, Clear Media Side Door & Media Hanger). Includes power supply. Cables sold separately. See accessories.
InStock
Free Shipping

Description

The 220XiIIIPlus quickly prints labels up to 8.5 inches wide at 10 inches per second (ips). It is ideal for wide label applications such as printing chemical drum labels primary metal standard labels automotive industry labels banner-sized labels and pallet and container shipping labels.
  • 203 dpi Resolution (8 dots per mm)
  • Core Diameter: 3
  • Label Ribbon Roll Diameter: 8
  • Maximum Label Length (with Standard Memory): 39
  • Maximum Label Width: 8.8
  • Minimum Label Gap: 2 mm
  • Print width: 8.50
  • Programmable Print speeds: 2.4
  • Reflective Media Sensor
  • Ribbon Outside Diameter: 3.2
  • Thin Film Printhead with Element Energy Equalizer (E3) ASIC
  • Total Thickness: .003
  • Transmissive Media Sensor
  • Construction: 12-gauge steel frame
  • Zebra printer driver for Win 95/98, Win ME, Win NT 4.0, Win 2000, and Win XP
  • Advanced media-ribbon counter
  • Multi-level Element Energy Equalizer (E3) for superior print quality
  • PCMCIA socket
  • Serial and parallel ports
  • Single 32 bit 133 MHz RISC processor
  • Unicode - Compliant
  • Widest print width
  • Print methods: Thermal transfer or direct thermal
  • Transmissive and reflective media sensors
  • USB 2.0 port
  • 16 MB SDRAM, 4 MB non-volatile Flash memory
  • 300 unique darkness settings
  • Multilingual backlit LCD display
  • CompactFlash (up to 1 GB memory) for added label format/font storage
  • Enhanced Alert notification -- monitors printhead condition
  • ZebraLink Solutions

Additional Information

Print Speed 10
Printer Type Industrial
Print Method Thermal Transfer
Print Resolution 305 dpi
Interface Options Ethernet
Maximum Print Width 8.50
Filter Filter
Manufacturer Zebra

Technical Information

  • Maximum Mono Print Speed: 6 in/s
  • Maximum Print Resolution: 300 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 8.50"
  • Recommended Use: Label Print
  • Features: Rewinder
  • Barcode Symbology Supported:
    • Codabar
    • Code 11
    • Code 39
    • Code 93
    • EAN-13
    • EAN-8
    • Interleaved 2 of 5
    • Industrial 2 of 5
    • LOGMARS
    • MSI
    • Planet Code
    • Plessey
    • POSTNET
    • Standard 2 of 5
    • EAN With 2 or 5 Digit Extension
    • UPC 2 or 5 Digit Extension
    • UPC-E
    • UPC-A
    • Code 128-A
    • Code 128-B
    • Code 128-C
    • UCC Case Codes
    • ISBT-128
    • Codablock
    • Code 49
    • Data Matrix
    • Maxi Code
    • PDF-417
    • QR Code
    • RSS
    • TLC 39
    • Micro PDF
    • Aztec Code

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Product Series: XiIIIPlus
  • Brand Name: Zebra
  • Manufacturer: Zebra Technologies Corporation
  • Product Model: 220XiIIIPlus
  • Product Name: 220XiIIIPlus Thermal Label Printer

Physical Characteristics

  • Height: 15.5"
  • Width: 15.7"
  • Depth: 19.5"

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes

Other

  • Platform Supported: PC
  • Package Contents:
    • 220XiIIIPlus Label Printer
    • 120 VAC North American Edition Power Cord
    • User Guide
    • Utility CD
    • 220XiIIIPlus Label Printer
    • 120 VAC North American Edition Power Cord
    • User Guide
    • Utility CD
  • Certifications & Standards:
    • CCC
    • CE
    • C-Tick
    • cUL
    • EN55022 Class B
    • EN55024
    • EN61000-3-2,3
    • FCC Class B
    • GOST-R
    • ICES-003 Class B
    • IEC 60950-1 / EN60950
    • NOM
    • S Mark
    • VCCI
    • ZIK
  • Additional Information:
    • 300 unique darkness settings
    • Advanced media/ribbon counter
    • North American Edition, 120 VAC Cord
    • Clear Media Side Door and Media Hanger
    • Transmissive and reflective media sensors
    • Enhanced Alert notification monitors printhead condition
    • Multi-level Element Energy Equalizer (E3) for superior print quality

Media Types & Handling

  • Maximum Label Width: 8.80"
  • Maximum Label Length: 39"
  • Media Type:
    • Continuous Form
    • Die-cut Label
    • Black Mark
    • Label
  • Media Size:
    • Letter - 8.50" x 11"
    • Custom Size - 8.80"
    • 8.80"
    • 4.25"
  • Media Sensor:
    • Reflective Media Sensor
    • Transmissive Media Sensor
  • Label Core Size: 3"
  • Ribbon Core Size: 1"
  • Maximum Roll Diameter: 8"

Memory

  • Standard Memory: 16 MB
  • Memory Technology: SDRAM
  • Flash Memory: 4 MB

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC

Network & Communication

  • Ethernet: Yes
  • Ethernet Technology: Fast Ethernet

Warranty

  • Limited Warranty: 1 Year
