81683 Zebra

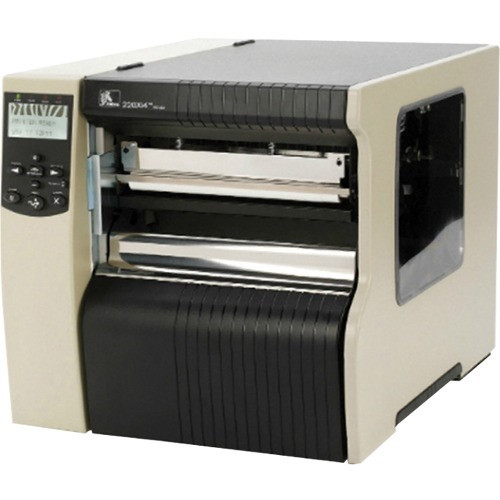

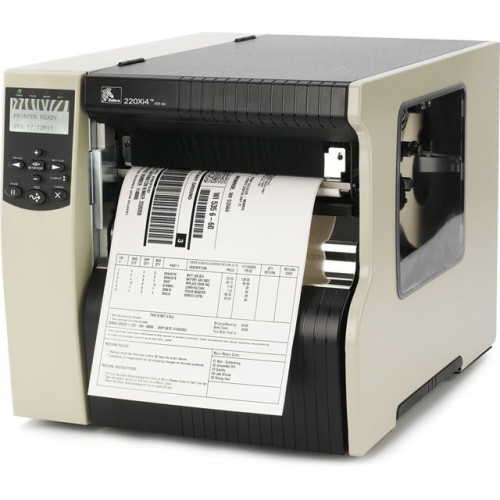

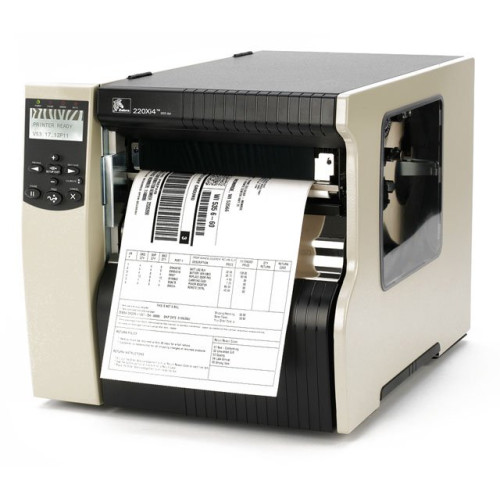

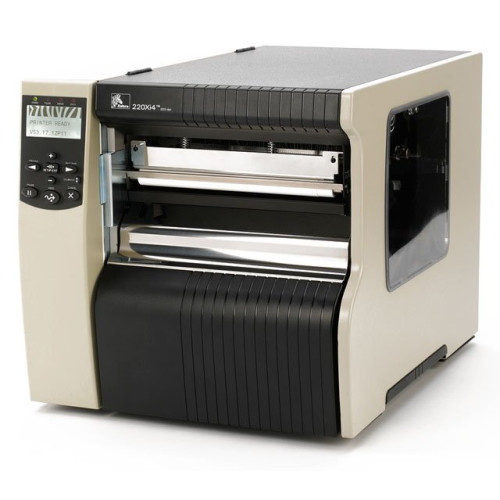

Zebra 220Xi4 Bar code Printer Part # 223-801-00000

The Zebra 220Xi4 is designed to produce large labels up to 8.5" (216 mm) wide at 10" (254 mm) per second at 203 dpi and 6" per second at 300 dpi (152 mm) resolution. The 220Xi4 is ideal for industrial applications, including chemical drum (HAZMAT) identification labels, pallet/container shipping labels and product identification labels for large rolls of paper or textiles.

223-801-00000 - Zebra 220Xi4 Bar code Printer

Part Details: 220Xi4, Thermal transfer Industrial Printer (300 dpi, USB, Parallel, and Serial (RS-232) interfaces, 8.5" max print width, 16MB SDRAM, Clear Media Side Door & Media Hanger). Includes power supply. Cables sold separately. See accessories.
InStock
MSRP: $7,175.00 Price: $6,098.75
In Stock - Ships Free

Additional Information

Brand Zebra
Filter Filter
Interface Options Parallel, Serial, USB
Label Core 3 inches
Labels Per Day more than 10,000
Manufacturer Zebra
Max Label Width 8.80
Max Roll Outer Diameter 8
Maximum Print Width 8.50
Print Method Thermal Transfer
Print Resolution 305 dpi
Print Speed 10
Printer Mobility Not Mobile
Printer Type Industrial
Product Condition New

Technical Information

  • Maximum Mono Print Speed: 6 in/s
  • Maximum Print Resolution: 300 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 8.50"
  • Recommended Use: Label Print
  • Features: LCD Display
  • Barcode Symbology Supported:
    • Code 11
    • Code 39
    • Code 93
    • Code 128
    • Code 128-B
    • Code 128-A
    • Code 128-C
    • Code 128 UCC
    • UPC-A
    • UPC-E
    • EAN-8
    • EAN-13
    • UPC 2 or 5 Digit Extension
    • EAN With 2 or 5 Digit Extension
    • Plessey
    • POSTNET
    • Standard 2 of 5
    • Industrial 2 of 5
    • Interleaved 2 of 5
    • LOGMARS
    • MSI
    • Planet Code
    • Codabar
    • Codablock
    • PDF-417
    • Code 49
    • Data Matrix
    • Maxi Code
    • QR Code
    • TLC 39
    • Micro PDF
    • Aztec Code
    • RSS
    • GS1 DataBar

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Product Series: Xi
  • Brand Name: Zebra
  • Manufacturer: Zebra Technologies Corporation
  • Product Model: 220Xi4
  • Product Name: 220Xi4 Thermal Label Printer

Physical Characteristics

  • Height: 15.5"
  • Width: 15.8"
  • Depth: 20.4"

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes
  • Parallel Port: Yes

Other

  • Platform Supported: PC
  • Package Contents:
    • 220Xi4 Thermal Label Printer
    • North American Edition Power Cord
    • Xi4 User's Guid
    • ZebraNet Connectivity CD
    • 220Xi4 Thermal Label Printer
    • North American Edition Power Cord
    • Xi4 User's Guid
    • ZebraNet Connectivity CD
  • Additional Information:
    • Auto calibration
    • Unicode Compliant
    • Intelligent printhead
    • 300 unique darkness settings
    • Improved head test for element out
    • Construction: 12-gauge steel frame
    • Single 32 bit 133 Mhz RISC processor
    • Multi-level Element Energy Equalizer
    • Clear Media Side Door and Media Hanger
    • Automatic media/ribbon sensing capability
    • Mirror feature allows user-defined printer configurations to be retrieved from the network

Media Types & Handling

  • Maximum Label Width: 8.80"
  • Maximum Label Length: 12.50 ft
  • Media Type:
    • Black Mark
    • Continuous Form
    • Roll Fed
    • Die-cut Label
    • Fanfold
  • Media Thickness: 12 mil
  • Media Sensor:
    • Transmissive Media Sensor
    • Reflective Media Sensor
  • Label Core Size: 1"
  • Ribbon Core Size: 1"
  • Maximum Roll Diameter: 3.20"

Fonts & Emulation

  • Language Emulation:
    • XML
    • ZPL II

Memory

  • Standard Memory: 16 MB
  • Memory Technology: SDRAM
  • Flash Memory: 8 MB

Network & Communication

  • Ethernet: Yes
  • Ethernet Technology: Fast Ethernet

Warranty

  • Limited Warranty: 1 Year

Power Description

  • Input Voltage: 110 V AC
Extended Details
