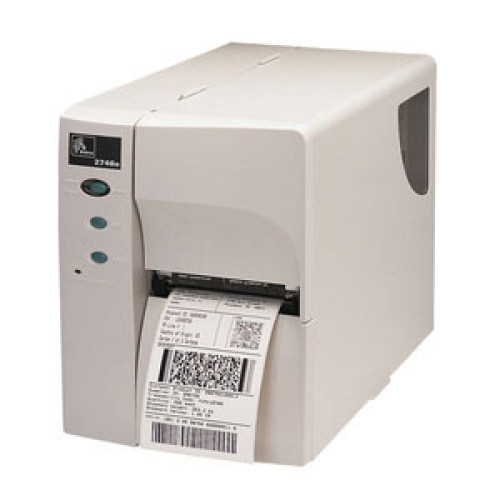

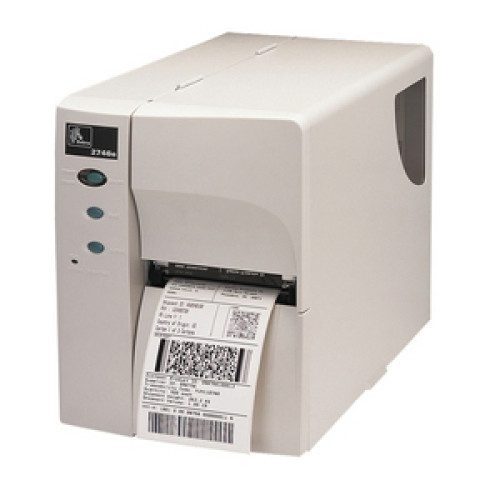

Zebra 2746e Barcode Label Printer
Part #: 274E-10411-0010 | SKU: ZEB6706

The steel-enclosed 2746e represents an affordable basic barcode print solution for entry-level applications that specify a durable metal printer. New feature enhancements on the 2746e include expanded connectivity capability (e.g. standard serial parallel new USB and internal Ethernet option) upgraded electronics improved ribbon spindle design additional memory and intelligent built-in media tracking capabilities that provide additional value and reliability and a compelling sales argument. The 2746e's moderate duty cycle output capability is ideal for individual or batch labeling applications within warehousing/distribution air freight/parcel tracking manufacturing and office printing. Its sturdy metal frame and intuitive design make the 2746e a natural choice for users who need a dependable full-size easy-to-use 4 inch (101.6 mm) printer.

Zebra 2746e Barcode Label Printer

Part Details: Direct Thermal/Thermal Transfer, 203 dpi, 4" print width, RS-232/USB/Ethernet interfaces. Includes US power cable. Interface cables sold separately.

Additional Information

Interface Options Ethernet, Serial (RS-232), USB
Manufacturer Zebra
Max Label Width 4.1
Max Roll Outer Diameter 8
Model Name 2746e
Print Resolution 203 dpi
Print Speed 6 ips
Printer Type Industrial
Printing Technology Thermal Transfer

Technical Information

  • Print Method:
    • Direct Thermal
    • Thermal Transfer (TT)
    • Direct Thermal (DT)
  • Print Resolution: 203 dpi
  • Print Speed: 6 ips
  • Interfaces:
    • 1 x Serial
    • 1 x USB
  • Maximum Print Width: 4.09"
  • Maximum Label Width: 4.50"
  • Maximum Label Length: 22"
  • Media Sensor:
    • Reflective
    • Transmissive
  • Printer Language: EPL II
  • Input Voltage: 120 V AC
  • RAM Memory: 512KB
  • Flash Memory: 1MB

General Information

  • Manufacturer: Zebra
  • Product Name: 2746e Label Printer

Physical Characteristics

  • Dimensions: 12.38" (314.45mm) x 9.5" (241.3mm) x 16.75" (425mm)
  • Weight: 28.6 lb (12.97 kg)
  • Shipping Weight: 36lb (16.33kg)

Included Features

  • Included Features:
    • Label Dispenser
    • Internal ZebraNet PrintServer II

Agency Approvals

  • Agency Approvals:
    • FCC
    • UL
    • CE
    • VCCI
    • CB
    • C-Tic
    • EN55022
    • CISPR22B
    • EN50082-1
    • EN60950
    • IEC 950

Environmental Conditions

  • Temperature:
    • 41°F (5°C) to 104°F (40°C) Operating - Thermal Transfer
    • 32°F (0°C) to 104°F (40°C) Operating - Direct Thermal
    • -40°F (-40°C) to 140°F (60°C) Storage
  • Humidity:
    • 10 to 80% Operating Non-condensing
    • 10 to 90% Storage Non-condensing

Media Characteristics

  • Maximum Label Roll Diameter: 8"
  • Label Core Size: 3"
  • Ribbon Core Size: 1"
  • Ribbon Setup: Wound Out

Other

  • Package Contents:
    • 2746e Label Printer
    • US Power Cord
    • English/US Documentation

Warranty

  • Manufacturer Warranty: 1 Year(s) Limited
Extended Details
