Navigation
Additional Information
| Interface Options | Serial (RS-232), USB |
|---|---|
| Manufacturer | Zebra |
| Max Roll Outer Diameter | 5 |
| Model Name | LP 2824 |
| Print Resolution | 203 dpi |
| Printer Type | Desktop |
| Printing Technology | Direct Thermal |

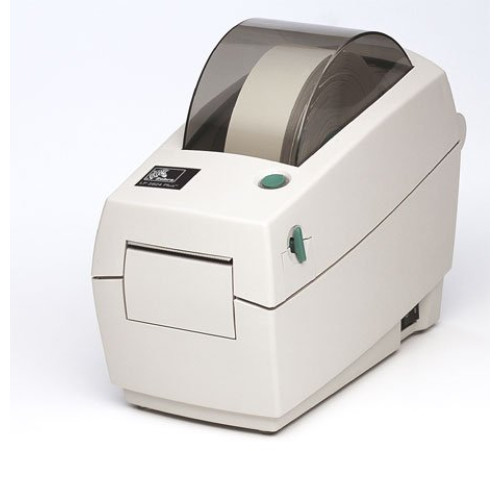

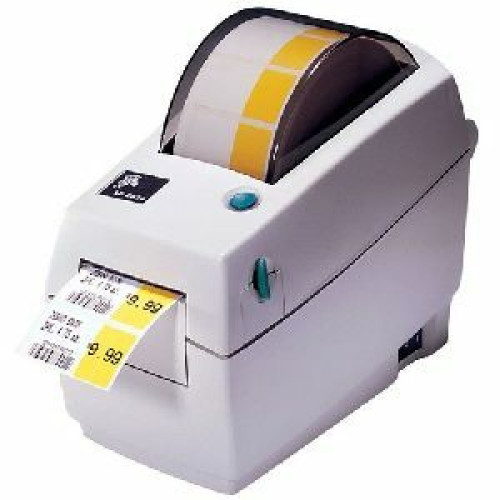

Zebra LP 2824 Specs
Technical Information
- Print Method:
- Direct Thermal
- Direct Thermal (DT)
- Print Resolution: 203 dpi
- Print Speed: 4 ips
- Interfaces:
- 1 x DB-9 Serial
- 1 x USB
- Maximum Print Width: 2.2"
- Maximum Label Width: 2.36"
- Maximum Label Length: 11"
- Media Sensor:
- Reflective
- Transmissive
- Printer Language: EPL II
- Input Voltage Range: 100 to 240 V AC
- Power Supply: External
- RAM Memory: 128KB
- Flash Memory: 512KB
General Information
- Manufacturer:
- Product Name: LP 2824S Label Printer
Physical Characteristics
- Dimensions:
- 6.8" (172.72mm) x 3.9" (99.06mm) x 7.5" (190mm)
- 6.8" (172.72mm) x 3.9" (99.06mm) x x 7.5" (190mm)
- Weight: 2.7 lb (1.22 kg)
Included Features
- Included Features: Dispenser
Agency Approvals
- Agency Approvals:
- UL-CUL 1950
- FCC Class B
- VCCI Class B
- C-TICK
- EN 500082-1
- EN 55022 Class B / CISPR 24
- EN 55021/CISPR 24
- EN 60950/IEC 950
- EN 61000-3-2-3
- CCC/CCIB
- NOM
Environmental Conditions
- Temperature:
- 40°F (4°C) to 105°F (41°C) Operating
- -40°F (-40°C) to 140°F (60°C) Storage
- Humidity:
- 10 to 90% Operating
- 5 to 95% Storage
Media Characteristics
- Maximum Label Roll Diameter: 5"
- Label Core Size: 1.5"
Warranty
- Manufacturer Warranty: 1 Year(s)
