Additional Information
| Interface Options | Serial (RS-232), USB |
|---|---|
| Manufacturer | Zebra |
| Max Roll Outer Diameter | 5 |
| Model Name | TLP 2824-Z |
| Print Resolution | 203 dpi |
| Print Speed | 4 ips |
| Printer Type | Desktop |
| Printing Technology | Thermal Transfer |
| Ribbon Core Size | 0.5 inch |

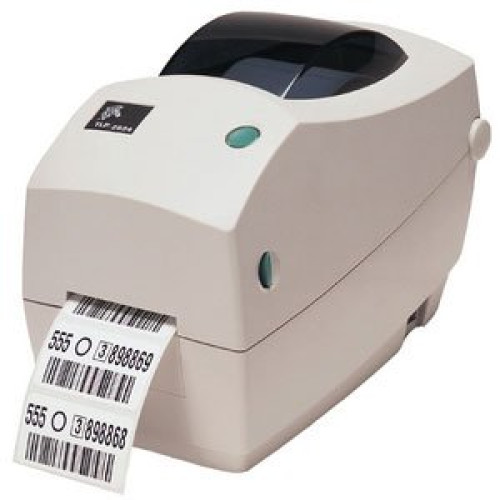

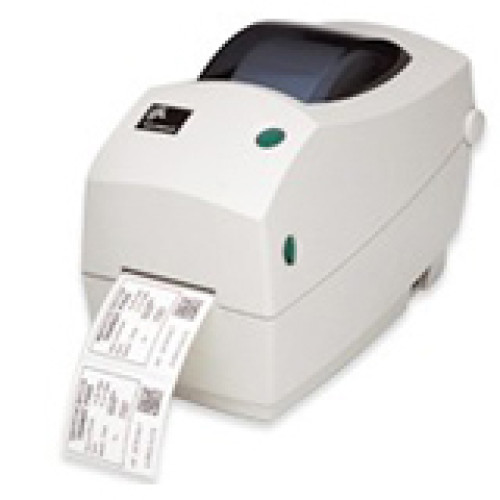

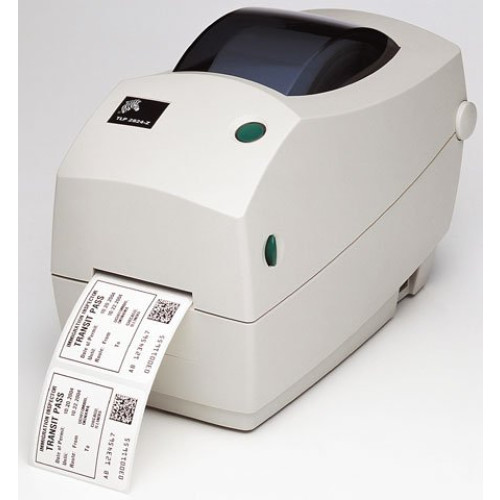

Zebra TLP 2824-Z Specs
Technical Information
- Maximum Mono Print Speed: 4 in/s
- Maximum Print Resolution: 203 dpi
- Maximum Print Width: 2.20"
- Recommended Use: Label Print
- Barcode Symbology Supported:
- Code 11
- Code 39
- Code 93
- Code 128
- EAN-13
- EAN-8
- UPC-A
- UPC-E
- Plessey
- POSTNET
- Industrial 2 of 5
- Interleaved 2 of 5
- LOGMARS
- MSI
- Codabar
- RSS14 Limited
- RSS14 Truncated
- RSS14 Stacked
- UPC-A with 2 or 5 Digit Extension
- UPC-E with 2 or 5 Digit Extension
- Standard 2 of 5
- PDF-417
- Micro PDF-417
- Code 49
- Maxi Code
- Codablock
- Data Matrix
- QR Code
- RSS
- UCC/EAN 128
- UPC-A with 2 and 5 Add-on
- UPC E with 2 and 5 add on
- EAN-13 With 2 and 5 Digit Extension
- EAN 8 With 2 and 5 Digit Extension
- Japan Postal
- MSI-3
- MSI1
- German Post Code
- Macro PDF-417
- Maxi Code Mode 2
- Maxi Code Mode 3
- Maxi Code Mode 4
- Maxi Code Mode 6
General Information
- Product Type: Direct Thermal/Thermal Transfer Printer
- Product Series: TLP
- Brand Name: Zebra
- Manufacturer: Zebra Technologies Corporation
- Product Model: TLP 2824-Z
- Product Name: TLP 2824-Z Thermal Label Printer
- Product Line: Desktop
Physical Characteristics
- Height: 7"
- Width: 5.5"
- Depth: 9.5"
Other
- Package Contents:
- TLP 2824-Z Label Printer
- User Documentation: English/European/Latin America
- TLP 2824-Z Label Printer
- User Documentation: English/European/Latin America
- Certifications & Standards:
- UL-CUL
- FCC
- VCCI/PSE
- C-TICK
- CB
- CSA
- NOM
- CE
- IRAM
- CCC/SRRC
- GOST-R
- BSMI
- IEC
- AAMI
- Additional Information:
- No Real Time Clock
- Printer Font Set: USA and European (standard)
- User Documentation: English/European/Latin America
Media Types & Handling
- Maximum Label Width: 2.36"
- Maximum Label Length: 39"
- Media Type:
- Black Bar
- Continuous Form
- Continuous Receipt
- Die-cut Label
- Fanfold
- Notched
- Perforated Label
- Receipt
- Roll Fed
- Tag
- Tag Stock
- Media Sensor:
- Reflective Media Sensor
- Transmissive Media Sensor
- Label Core Size: 3"
- Ribbon Core Size: 0.50"
- Maximum Roll Diameter: 5"
Power Description
- Input Voltage:
- 110 V AC
- 220 V AC
Memory
- Standard Memory: 8 MB
- Memory Technology: SDRAM
- Flash Memory: 4 MB
Warranty
- Limited Warranty: 1 Year
Fonts & Emulation
- Language Emulation: ZPL II
