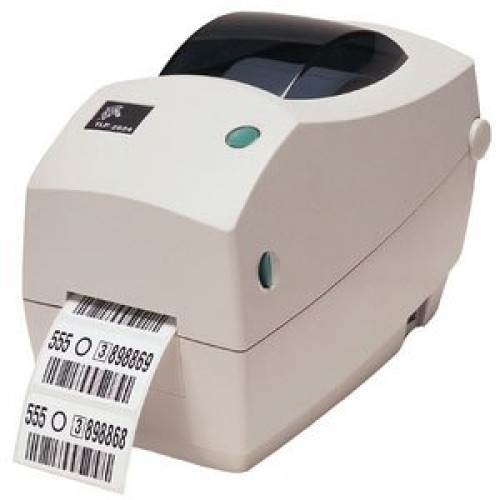

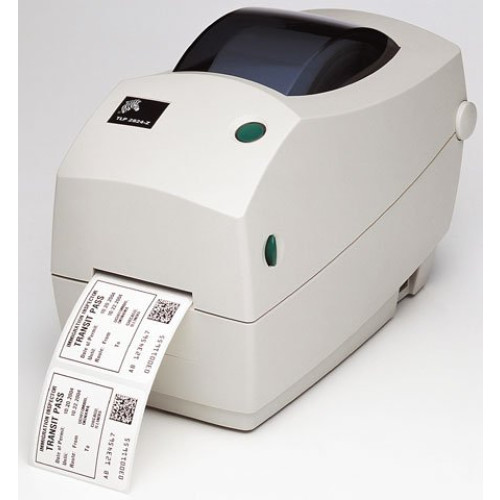

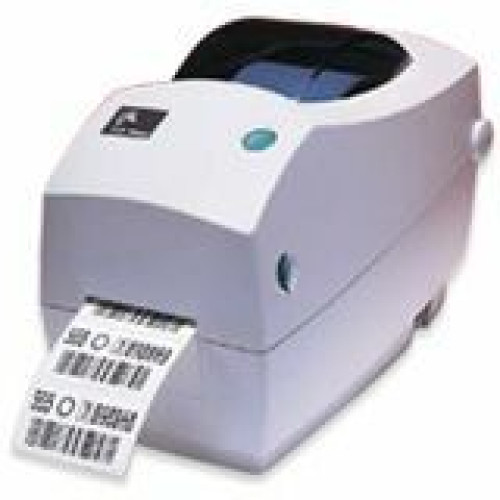

Zebra TLP 2824-Z Barcode Label Printer
Part #: 282Z-11101-0001 | SKU: ZEB20145

The TLP 2824-Z is capable of direct thermal or thermal transfer printing and has one of the smallest footprints of any two-inch desktop printer in the industry, this easy-to-use TLP 2824-Z fits into places other printers cannot, without sacrificing speed, print quality or media capacity. This space conservation is great for the typically congested areas around cash registers, desks, and countertops. The TLP 2824-Z integrates easily into a variety of mid- to low-volume printing applications including: Shipping/Receiving, Warehouse shelf labeling and inventory control, Retail product marking, and coupon/receipt printing, E-commerce applications and Postage printing.

Zebra TLP 2824-Z Barcode Label Printer

Part Details: Direct Thermal/Thermal Transfer printing, 203 dpi, 2.25" print width, Serial and USB Interfaces, Dispenser, and US power cord. Order cables separately.

Additional Information

Interface Options Serial (RS-232), USB
Manufacturer Zebra
Max Label Width 2.36
Max Roll Outer Diameter 5
Model Name TLP 2824-Z
Print Resolution 203 dpi
Print Speed 4 ips
Printer Type Desktop
Printing Technology Thermal Transfer
Ribbon Core Size 0.5 inch

Technical Information

  • Print Method: Thermal Transfer (TT)
  • Print Resolution: 203 dpi
  • Print Speed: 4 ips
  • Interfaces:
    • 1 x USB
    • 1 x Serial
  • Maximum Print Width: 2.2"
  • Maximum Label Width: 2.36"
  • Maximum Label Length: 39"
  • Media Sensor:
    • Reflective
    • Transmissive
  • Printer Language: ZPL II
  • Input Voltage Range: 100 to 240 V AC - USA & European
  • RAM Memory: 8MB
  • Flash Memory: 4MB
  • Mobile Printer: No

General Information

Physical Characteristics

  • Dimensions:
    • 6.8" (172.72mm) x 3.6" (91.44mm) x 7.5" (190mm)
    • 6.8" (172.72mm) x 3.6" (91.44mm) x x 7.5" (190mm)
  • Weight: 2.7 lb (1.22 kg)
  • Shipping Weight: 5.3lb (2.4kg)

Included Features

  • Included Features: Dispenser

Agency Approvals

  • Agency Approvals:
    • FCC
    • VCCI
    • IRAM
    • PSE
    • C-TICK
    • UL-CUL
    • NOM
    • GOST-R
    • CSA
    • CE
    • CCC
    • SRRC
    • CB
    • BSMI

Environmental Conditions

  • Temperature:
    • 40°F (4°C) to 105°F (41°C) Operating
    • -40°F (-40°C) to 140°F (60°C) Storage
  • Humidity:
    • 10 to 90% Operating Non-condensing
    • 5 to 95% Storage Non-condensing

Other

  • Package Contents:
    • LP 2824-Z Label Printer
    • User Documentation: English/European/Latin America

Media Characteristics

  • Maximum Label Roll Diameter: 5"
  • Label Core Size: 1.5"

Warranty

  • Manufacturer Warranty: 1 Year(s) Limited
Extended Details

Recommended Accessories for Model: Zebra TLP 2824-Z Barcode Label Printer

  • BCI Cables Accessory
    Part #: 2901-6MF9 | SKU: BCI21160

    6' Serial cable (25 pin male to 9 pin female)
    Price: $13.20
    In Stock
  • Cables To Go Accessory
    Part #: 13400 | SKU: 143521

    10ft USB cable (USB 2.0, A to B). Replaces (Part# USB-5000-03M).
    Price: $13.07
    In Stock
  • Cables To Go Accessory
    Part #: 13172 | SKU: 143509

    6ft USB cable (USB 2.0, A to B). Replaces (Part# USB-5000-02M).
    Price: $12.82
    In Stock
  • Zebra 2844 Accessory
    Part #: 105850-006 | SKU: 29706

    USB Interface Cable, 6FT (A to B)
    $20.13
    In Stock
  • Zebra 2824 Accessory
    Part #: 120181-005 | SKU: 21350

    Keyboard display unit - requires serial interface. No auxilliary port.

Recommended Labels for Model: Zebra TLP 2824-Z Barcode Label Printer

  • Zebra Z-Select 4000D Barcode Label
    Part #: 10010037-R | SKU: ZEB71502

    1.2" x 0.85" Direct thermal paper label. 2,710 labels/roll, single roll. Also available as a case (Part# 10010037).
    Price: $17.51
    In Stock
  • Zebra Z-Select 4000D Barcode Label
    Part #: 10010038-R | SKU: ZEB71503

    1.25" x 1" Direct thermal paper label. 2,340 labels/roll, single roll. Also available as a case (Part# 10010038).
    Price: $17.03
    In Stock
  • Zebra Z-Select 4000D Barcode Label
    Part #: 10010039-R | SKU: 71504

    2" x 1" Direct thermal paper label. 2,340 labels/roll, single roll. Also available as a case (Part# 10010039).
    Price: $23.87
    In Stock
  • Zebra Z-Select 4000D Barcode Label
    Part #: 10015340-R | SKU: 164761

    2.25" x 0.75" Direct thermal paper label, Perforated, 1" core, 5" outer diameter, 3315 labels/roll, single roll. Does not required a ribbon. Also available as a 12 roll case (Part# 10015340).
    Price: $21.59
    In Stock
  • Zebra Z-Select 4000T Barcode Label
    Part #: 10009523 | SKU: 66358

    Labels - Zebra - 1.25" X 1" Thermal Transfer Paper Label. 2,580 Labels/Roll - 6 Roll Case
    $44.98
    In Stock

Recommended Ribbons for Model: Zebra TLP 2824-Z Barcode Label Printer

  • Zebra 5319 Performance Ribbon
    Part #: 800132-001 | SKU: 48145

    1.3" x 244' Black Wax Ribbon, Compatible with Desktop printers and Paper Labels, Rolls per Case: 12, Core Size: 0.5", Available as a single roll (800132-001-R)
    MSRP: $26.28 Price: $26.03
    In Stock
  • Zebra 3200 Performance Ribbon
    Part #: 800132-101 | SKU: 48055

    1.3" x 244' Black Wax-Resin Ribbon, Compatible with Desktop printers and Polypropylene Labels, Rolls per Case: 12, Core Size: 0.5", Available as a single roll (800132-101-R)
    MSRP: $29.16 Price: $27.78
    In Stock
  • Zebra 5095 Performance Resin Ribbon
    Part #: 800132-201 | SKU: 48101

    1.3" x 244' Black Resin Ribbon, Compatible with Desktop printers and Polyester Labels, Rolls per Case: 12, Core Size: 0.5", Available as a single roll (800132-201-R)
    MSRP: $46.68 Price: $38.52
    In Stock
  • Zebra 5095 Performance Resin Ribbon
    Part #: 800132-201-R | SKU: 10449

    1.3" x 244' Black Resin Ribbon, Compatible with Desktop printers and Polyester Labels, Rolls per Case: 1, Core Size: 0.5", Priced per roll. Available as a case(800132-201)
    Price: $12.86
  • Zebra 5319 Performance Ribbon
    Part #: 800132-001-R | SKU: 10445

    1.3" x 244' Black Wax Ribbon, Compatible with Desktop printers and Paper Labels, Rolls per Case: 1, Core Size: 0.5", Priced per roll. Available as a case(800132-001)
    Price: $11.61
