Newer Version Is Available

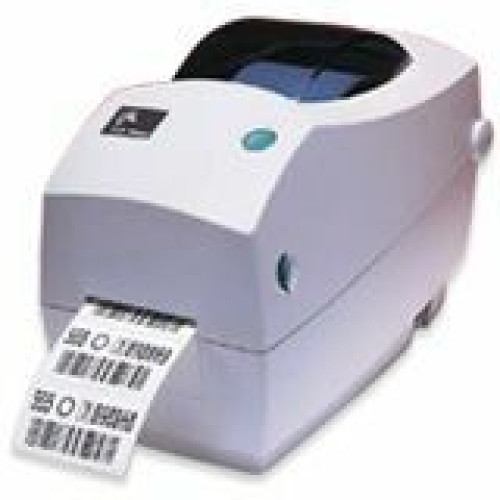

TLP 2824 Plus, Thermal transfer printing, 203 dpi, 2.25" print width, Parallel interface. Includes US Power cord. Interface cables sold separately.
$495.00 $297.00
Ships Today
Free Shipping
- +

Product was successfully added to your shopping cart.
20146 Zebra

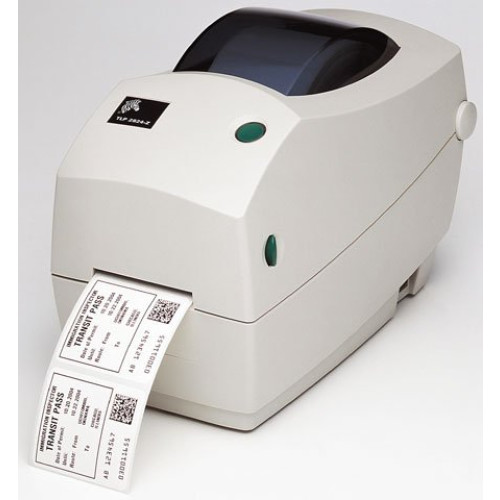

282Z-11200-0001 - Zebra TLP 2824-Z Bar code Printer

TLP 2824-Z, Thermal transfer printing, 203 dpi, 2.25" print width, Parallel Interface, and US power cord. Order cables separately.
InStock
Free Shipping

Description

The TLP 2824-Z is capable of direct thermal or thermal transfer printing and has one of the smallest footprints of any two-inch desktop printer in the industry, this easy-to-use TLP 2824-Z fits into places other printers cannot, without sacrificing speed, print quality or media capacity. This space conservation is great for the typically congested areas around cash registers, desks, and countertops. The TLP 2824-Z integrates easily into a variety of mid- to low-volume printing applications including: Shipping/Receiving, Warehouse shelf labeling and inventory control, Retail product marking, and coupon/receipt printing, E-commerce applications and Postage printing.
  • Resident scalable font
  • Print methods: Direct thermal or Thermal transfer
  • Head-up sensor
  • Construction: ABS double-walled casing
  • OpenACCESS design
  • 32 bit RISC processor

Additional Information

Print Speed 4
Printer Type Desktop
Print Method Thermal Transfer
Print Resolution 203 dpi
Interface Options Parallel
Maximum Print Width 2.20
Filter Filter
Manufacturer Zebra

Technical Information

  • Maximum Mono Print Speed: 4 in/s
  • Maximum Print Resolution: 203 dpi
  • Maximum Print Width: 2.20"
  • Recommended Use: Label Print
  • Barcode Symbology Supported:
    • Code 11
    • Code 39
    • Code 93
    • EAN 128
    • EAN-13
    • EAN-8
    • UPC-A
    • UPC-E
    • Plessey
    • Industrial 2 of 5
    • Interleaved 2 of 5
    • LOGMARS
    • MSI
    • Codabar
    • RSS14 Limited
    • RSS14 Truncated
    • RSS14 Stacked
    • UPC-A with 2 or 5 Digit Extension
    • UPC-E with 2 or 5 Digit Extension
    • PDF-417
    • Micro PDF-417
    • Code 49
    • Maxi Code
    • Codablock
    • Data Matrix
    • QR Code
    • POSTNET

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Product Series: TLP
  • Brand Name: Zebra
  • Manufacturer: Zebra Technologies Corporation
  • Product Model: TLP 2824-Z
  • Product Name: TLP 2824-Z Thermal Label Printer
  • Product Line: Desktop

Physical Characteristics

  • Height: 7"
  • Width: 5.5"
  • Depth: 9.5"

Interfaces/Ports

  • Parallel Port: Yes

Other

  • Platform Supported: PC
  • Package Contents:
    • TLP 2824-Z Label Printer
    • User Documentation: English/European/Latin America
    • TLP 2824-Z Label Printer
    • User Documentation: English/European/Latin America
  • Certifications & Standards:
    • UL-CUL
    • FCC
    • VCCI/PSE
    • C-TICK
    • CB
    • CSA
    • NOM
    • CE
    • IRAM
    • CCC/SRRC
    • GOST-R
    • BSMI
    • IEC
    • AAMI
  • Additional Information:
    • Head-up sensor
    • No Real Time Clock
    • Power: USA and Europe
    • Printer Font Set: USA and European (standard)
    • User Documentation: English/European/Latin America

Media Types & Handling

  • Maximum Label Width: 2.36"
  • Maximum Label Length: 39"
  • Media Type:
    • Fanfold
    • Roll Fed
    • Die-cut Label
    • Continuous Form
    • Tag Stock
    • Continuous Receipt
    • Linerless
    • Black Bar
    • Black Mark
    • Notched
    • Receipt
  • Media Sensor:
    • Reflective Media Sensor
    • Transmissive Media Sensor
  • Label Core Size: 1.50"
  • Ribbon Core Size: 0.50"
  • Maximum Roll Diameter: 5"

Memory

  • Standard Memory: 8 MB
  • Memory Technology: SDRAM
  • Flash Memory: 4 MB

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC

Warranty

  • Limited Warranty: 1 Year

Fonts & Emulation

  • Language Emulation: ZPL II
