20148 Zebra

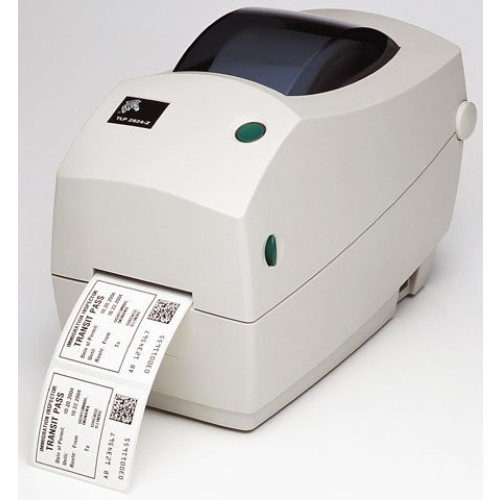

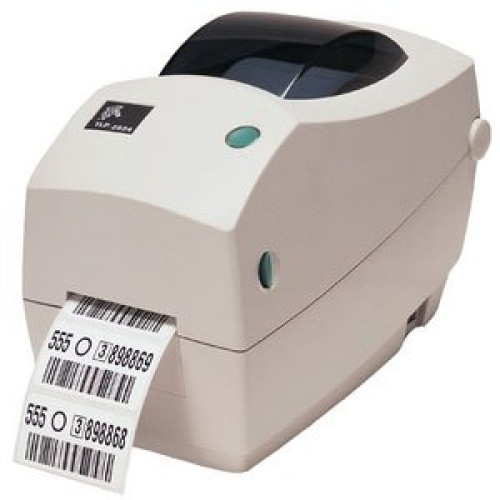

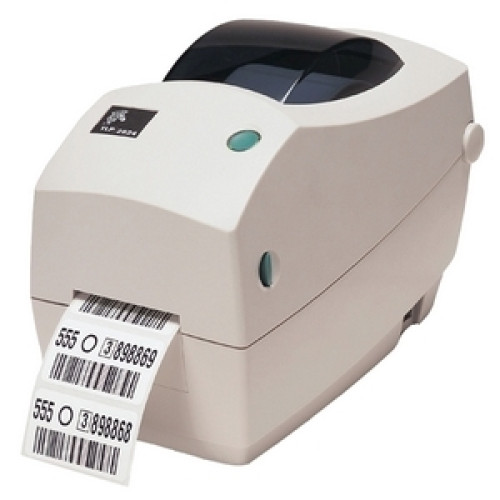

Zebra TLP 2824-Z Bar code Printer Part # 282Z-11400-0001

The TLP 2824-Z is capable of direct thermal or thermal transfer printing and has one of the smallest footprints of any two-inch desktop printer in the industry, this easy-to-use TLP 2824-Z fits into places other printers cannot, without sacrificing speed, print quality or media capacity. This space conservation is great for the typically congested areas around cash registers, desks, and countertops. The TLP 2824-Z integrates easily into a variety of mid- to low-volume printing applications including: Shipping/Receiving, Warehouse shelf labeling and inventory control, Retail product marking, and coupon/receipt printing, E-commerce applications and Postage printing.

282Z-11400-0001 - Zebra TLP 2824-Z Bar code Printer

Part Details: TLP 2824-Z, Thermal transfer printing, 203 dpi, 2.25" print width, Ethernet and Serial Interfaces, and US power cord. Order cables separately.
InStock

Additional Information

Filter Filter
Interface Options Ethernet, Serial
Label Core 1 inch
Manufacturer Zebra
Max Label Width 2.36
Max Roll Outer Diameter 5
Maximum Print Width 2.20
Print Method Thermal Transfer
Print Resolution 203 dpi
Print Speed 4
Printer Mobility Not Mobile
Printer Type Desktop
Product Condition New
Ribbon Core 0.5
  • Resident scalable font
  • Print methods: Direct thermal or Thermal transfer
  • Head-up sensor
  • Construction: ABS double-walled casing
  • OpenACCESS design
  • 32 bit RISC processor

Technical Information

  • Print Method: Thermal Transfer (TT)
  • Print Resolution: 203 dpi
  • Print Speed: 4 ips
  • Interfaces:
    • 1 x Ethernet
    • 1 x Serial
  • Maximum Print Width: 2.2"
  • Maximum Label Width: 2.36"
  • Maximum Label Length: 39"
  • Media Sensor:
    • Reflective
    • Transmissive
  • Printer Language: ZPL II
  • Input Voltage Range: 100 to 240 V AC - USA & European
  • RAM Memory: 8MB
  • Flash Memory: 4MB
  • Mobile Printer: No

General Information

Physical Characteristics

  • Dimensions:
    • 6.8" (172.72mm) x 3.6" (91.44mm) x 7.5" (190mm)
    • 6.8" (172.72mm) x 3.6" (91.44mm) x x 7.5" (190mm)
  • Weight: 2.7 lb (1.22 kg)
  • Shipping Weight: 5.3lb (2.4kg)

Included Features

  • Included Features: Internal ZebraNet PrintServer II

Agency Approvals

  • Agency Approvals:
    • FCC
    • VCCI
    • IRAM
    • PSE
    • C-TICK
    • UL-CUL
    • NOM
    • GOST-R
    • CSA
    • CE
    • CCC
    • SRRC
    • CB
    • BSMI

Environmental Conditions

  • Temperature:
    • 40°F (4°C) to 105°F (41°C) Operating
    • -40°F (-40°C) to 140°F (60°C) Storage
  • Humidity:
    • 10 to 90% Operating Non-condensing
    • 5 to 95% Storage Non-condensing

Other

  • Package Contents:
    • LP 2824-Z Label Printer
    • User Documentation: English/European/Latin America

Media Characteristics

  • Maximum Label Roll Diameter: 5"
  • Label Core Size: 1.5"

Warranty

  • Manufacturer Warranty: 1 Year(s) Limited
Extended Details

Recommended Accessories

Recommended Labels

  • Zebra Z-Select 4000T Label (10009523)

    Z-Select 4000T, 1.25" x 1" Thermal transfer paper label. 2,580 labels/roll, 6 roll case. Also available as a roll (Part# 10009523-R).
    Price: $39.21
    In Stock
  • Zebra Z-Select 4000T Label (10009522)

    Z-Select 4000T, 1.188" x 0.84" Thermal transfer paper label. 3,000 labels/roll, 6 roll case.
    Price: $39.74
    In Stock
  • Zebra Z-Select 4000T Label (10009525)

    Z-Select 4000T, 2.25" x 2" Thermal transfer paper label. 1370 labels/roll, 6 roll case.
    Price: $64.20
    In Stock
  • Zebra Z-Select 4000T Label (10009526)

    Z-Select 4000T, 2.25" x 3" Thermal transfer paper label. 930 labels/roll, 6 roll case. Also available as a roll (Part# 10009526-R)
    Price: $64.10
    In Stock
  • Zebra Z-Select 4000T Label (10009524)

    Z-Select 4000T, 2.25" x 0.75" Thermal transfer paper label. 3,320 labels/roll, 6 roll case. Also available as a roll (Part# 10009524-R).
    Price: $64.20
    In Stock

Recommended Printheads

  • Zebra Z4M Plus Print head (G79082)

    Z4M+, Z4M & Z4000, Replacement Printhead Kit, 300 dpi, Compatible Printer Model Z4M+, Z4M & Z4000
    MSRP: $660.00 Price: $561.00
    Ship Free in 3-5 Days
  • Zebra Z4M Plus Print head (G79056-1M)

    Z4M+, Z4M & Z4000, Replacement Printhead Kit, 203 dpi, Compatible Printer Model Z4M+, Z4M & Z4000
    MSRP: $630.00 Price: $535.50
    In Stock - Ships Free
  • Zebra Z4M Plus Print head (79057-2M)

    Z4M & Z4M+, Extended Life Printhead for Zebra Models Z4Mplus & Z4M & Z4000, 300 dpi.
    MSRP: $900.00 Price: $765.00
    Ship Free in 3-5 Days
  • Zebra Z4M Plus Print head (G79057M)

    Z4M+, Z4M & Z4000, Replacement Printhead Kit, 300 dpi, Compatible Printer Model Z4M+, Z4M & Z4000
    MSRP: $660.00 Price: $561.00
    In Stock - Ships Free
  • Zebra 105SL Printhead Print head (G32433M)

    105SL, Replacement Printhead Kit, 300 dpi, Compatible Printer Model 105SL
    MSRP: $575.00 Price: $488.75
    In Stock - Ships Free

Recommended Ribbons

  • Zebra 3200 Performance Wax-Resin Ribbon (800132-101)

    3200 Performance Wax-Resin, 1.3" x 244' Black Wax-Resin Ribbon, Compatible with Desktop printers and Polypropylene Labels, rolls/case: 12, Core Size: 0.5", Available as a single roll (800132-101-R)
    Price: $30.11
    In Stock
  • Zebra 5095 Performance Resin Ribbon (800132-201)

    5095 Performance Resin, 1.3" x 244' Black Resin Ribbon, Compatible with Desktop printers and Polyester Labels, rolls/case: 12, Core Size: 0.5", Available as a single roll (800132-201-R)
    Price: $46.63
    In Stock
  • Zebra 5319 Performance Wax Ribbon (800132-001)

    5319 Performance Wax, 1.3" x 244' Black Wax Ribbon, Compatible with Desktop printers and Paper labels, rolls/case: 12, Core Size: 0.5", Available as a single roll (800132-001-R)
    Price: $25.65
    In Stock
  • Zebra 5095 Performance Resin Ribbon (800132-201-R)

    5095 Performance Resin, 1.3" x 244' Black Resin Ribbon, Compatible with Desktop printers and Polyester Labels, rolls/case: 1, Core Size: 0.5", single roll. Available as a case (800132-201)
    Price: $12.06
    In Stock
  • Zebra TLP 2824-Z Ribbon (800132-001-R)

    5319 Wax, 1.3" x 244' Black Wax Ribbon, Compatible with Desktop printers and Paper labels, rolls/case: 1, Core Size: 0.5", single roll. Available as a case (800132-001)
    Price: $11.14
    Ships in 3-5 Days
