20164 Zebra

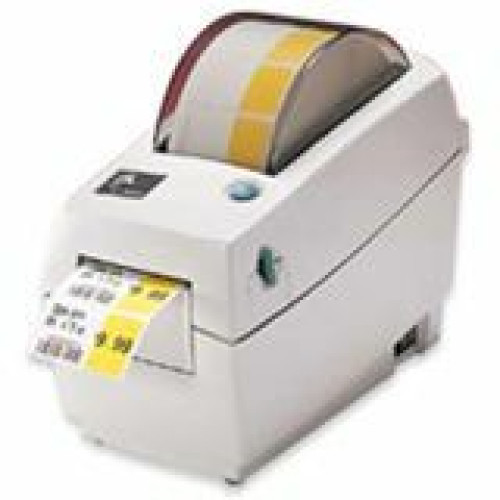

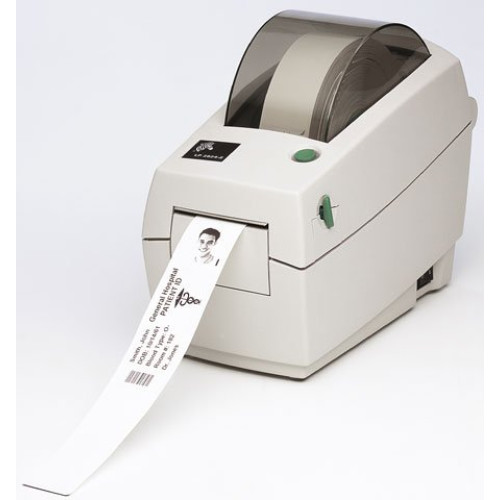

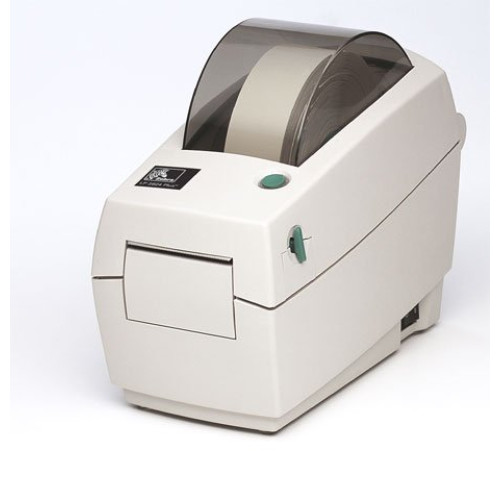

Zebra LP 2824-Z Bar code Printer Part # 282Z-21100-0001

With one of the smallest footprints of any two-inch desktop printer in the industry, this easy-to-use direct thermal LP 2824-Z fits into places other printers cannot, without sacrificing speed, print quality or media capacity. This space conservation is great for the typically congested areas around cash registers, desks, and countertops. The Zebra LP 2824-Z integrates easily into a variety of mid- to low-volume printing applications including: Shipping/Receiving, Warehouse shelf labeling and inventory control, Retail product marking, and coupon/receipt printing, Transportation and Logistics.

282Z-21100-0001 - Zebra LP 2824-Z Bar code Printer

Part Details: LP 2824-Z, Direct thermal printing, 203 dpi, 2.25" max print width, Serial and USB Interfaces, and US power cord. Cables sold separately.
InStock

Additional Information

Filter Filter
Interface Options Serial, USB
Label Core 1 inch
Manufacturer Zebra
Max Label Width 2.40
Max Roll Outer Diameter 5
Maximum Print Width 2.00
Print Method Direct Thermal
Print Resolution 203 dpi
Print Speed 4
Printer Mobility Not Mobile
Printer Type Desktop
Product Condition New
Ribbon Core 0.5
  • Head-up sensor
  • Print method: Direct thermal (LP)
  • OpenACCESS design
  • Construction: ABS double-walled casing
  • Resident scalable font
  • 32 bit RISC processor

Technical Information

  • Print Method: Direct Thermal (DT)
  • Print Resolution: 203 dpi
  • Print Speed: 4 ips
  • Interfaces:
    • 1 x Serial
    • 1 x USB
  • Maximum Print Width: 2.2"
  • Maximum Label Width: 2.36"
  • Maximum Label Length: 39"
  • Media Sensor:
    • Reflective
    • Transmissive
  • Printer Language: ZPL II
  • Input Voltage Range: 100 to 240 V AC - USA & European
  • RAM Memory: 8MB
  • Flash Memory: 4MB
  • Mobile Printer: No

General Information

Physical Characteristics

  • Dimensions:
    • 6.8" (172.72mm) x 3.6" (91.44mm) x 7.5" (190mm)
    • 6.8" (172.72mm) x 3.6" (91.44mm) x x 7.5" (190mm)
  • Weight: 2.7 lb (1.22 kg)
  • Shipping Weight: 5.3lb (2.4kg)

Agency Approvals

  • Agency Approvals:
    • UL-CUL
    • FCC
    • VCCI/PSE
    • C-TICK
    • CB
    • CE
    • CCC/SRRC
    • NOM
    • IRAM
    • BSMI
    • GOST-R
    • CSA

Environmental Conditions

  • Temperature:
    • 40°F (4°C) to 105°F (41°C) Operating
    • -40°F (-40°C) to 140°F (60°C) Storage
  • Humidity:
    • 10 to 90% Operating Non-condensing
    • 5 to 95% Storage Non-condensing

Other

  • Package Contents:
    • LP 2824-Z Label Printer
    • User Documentation: English/European/Latin America

Media Characteristics

  • Maximum Label Roll Diameter: 5"
  • Label Core Size: 1.5"

Warranty

  • Manufacturer Warranty: 1 Year(s) Limited
