15872 Zebra

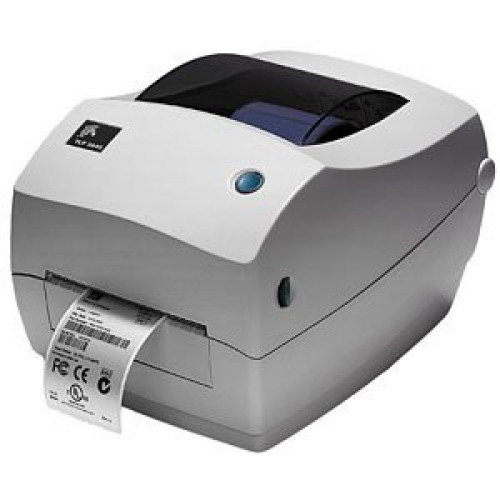

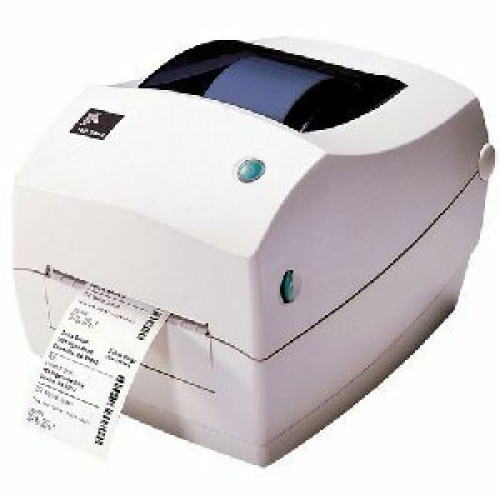

2844-10302-0001 - Zebra TLP 2844 Bar code Printer

TLP 2844, Thermal transfer printing, 203 dpi, 4" print width, USB, Parallel, and Serial Interfaces, Cutter, and US power cord. Order cables separately.
InStock
Free Shipping

Description

The TLP 2844 direct thermal and TLP 2844 thermal transfer desktop label printers expand Zebra's 28-Series product family offering 4-inch print-width capability. These models provide a sturdy double-walled case design and come equipped with a new-generation of controller board motor and power supply that drive the TLP 2844's at a print speed of 4 inches per second! An improved print head provides 203dpi resolution with enhanced print quality and the choice of direct thermal or thermal transfer printing technology ensures greater flexibility in supporting a broad variety of labeling applications.
  • Thermal transfer printing
  • 203 dpi print resolution
  • Construction: ABS double-walled casing
  • 512KB Flash memory, 256KB SRAM
  • OpenACCESS design
  • Serial, parallel, and USB interfaces
  • Head-up sensor
  • Windows drivers (95, 98, Me, NT v.4.0, 2000)
  • Windows printer utilities

Additional Information

Print Speed 4
Printer Type Desktop
Print Method Thermal Transfer
Print Resolution 203 dpi
Included Features Cutter
Interface Options USB
Maximum Print Width 4.09
Filter Filter
Manufacturer Zebra

Technical Information

  • Maximum Mono Print Speed: 4 in/s
  • Maximum Print Resolution: 203 dpi
  • Maximum Print Width: 4.09"
  • Recommended Use: Label Print
  • Features: Cutter
  • Barcode Symbology Supported:
    • Code 39
    • Code 128-A
    • Code 128-B
    • Code 128-C
    • Code 93
    • Codabar
    • Interleaved 2 of 5
    • UCP-E
    • UPC-A
    • UPC-A with 2 or 5 Digit Extension
    • EAN-13
    • EAN-8
    • EAN-13 With 2 or 5 Digit Extension
    • EAN-8 With 2 or 5 Digit Extension
    • POSTNET
    • Plessey
    • German Post Code
    • RSS-14
    • MSI-3
    • Maxi Code
    • Micro PDF-417
    • Macro PDF-417
    • QR Code
    • Data Matrix

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Product Series: TLP
  • Brand Name: Zebra
  • Manufacturer: Zebra Technologies Corporation
  • Product Model: TLP 2844
  • Product Name: TLP 2844 Thermal Label Printer

Physical Characteristics

  • Height: 6.8"
  • Width: 7.8"
  • Depth: 9.4"

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes
  • Parallel Port: Yes

Other

  • Platform Supported: PC
  • Package Contents:
    • TLP 2844 Label Printer
    • User Documentation: English, European, Latin America
    • TLP 2844 Label Printer
    • User Documentation: English, European, Latin America
  • Certifications & Standards:
    • UL-CUL 1950
    • FCC Class B
    • VCCI Class B
    • C-TICK
    • EN 500082-1
    • EN 55022 Class B
    • .
    • CB
    • CE
    • CCC
    • NOM
    • IRAM
    • BSMI
    • GOST
  • Additional Information:
    • Status reporting
    • Line mode support
    • Element Energy Equalizer
    • Counter support (up to 10)
    • Form, font, and graphics storage
    • Variable field support (up to 100)
    • Printer font set: USA and European
    • Variable field addition and subtraction
    • Text and barcodes printed in 0°, 90°, 180°, 270°
    • User Documentation: English/European/Latin America
    • 128 KB SRAM & 512 KB Flash with no Real Time Clock

Media Types & Handling

  • Maximum Label Width: 4.25"
  • Maximum Label Length: 11"
  • Media Type:
    • Fanfold
    • Tag Stock
    • Roll Fed
    • Die-cut Label
    • Continuous Form
    • Continuous Receipt
  • Media Thickness: 7 mil
  • Media Sensor:
    • Reflective Media Sensor
    • Transmissive Media Sensor
  • Label Core Size: 1.50"
  • Maximum Roll Diameter: 5"

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC

Memory

  • Standard Memory: 256 KB
  • Flash Memory: 512 KB

Warranty

  • Limited Warranty: 1 Year

Fonts & Emulation

  • Language Emulation: EPL II
