Additional Information
| Interface Options | Bluetooth |
|---|---|
| Manufacturer AIDC | Zebra |
| Max Roll Outer Diameter | 2.2 |
| Model Name | Cameo 3 |
| Print Resolution | 203 dpi |
| Printer Type | Mobile |
| Printing Technology | Direct Thermal |

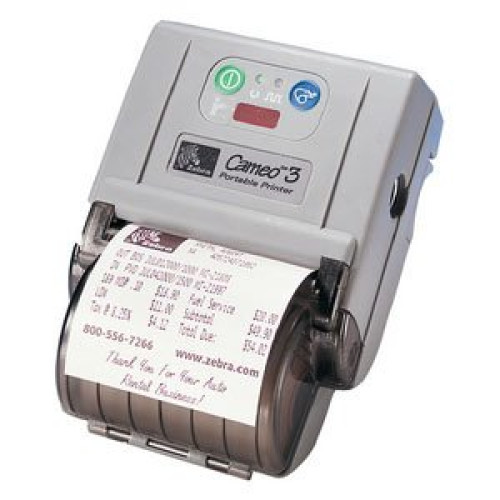

Zebra Cameo 3 Specs
Zebra Cameo 3 Driver
Technical Information
- Print Method:
- Direct Thermal
- Direct Thermal (DT)
- Print Resolution: 203 dpi
- Print Speed: 3 ips
- Interfaces:
- Wireless
- Bluetooth
- Maximum Print Width: 2.83"
- Maximum Label Width: 3.1"
- Maximum Label Length: 10"
- Media Sensor: Reflective
- Power Supply: External Not Included
- RAM Memory: 256KB
- Flash Memory: 1MB
- Data Buffer: 256 KB
- Printer Language: CPCL-native
- Mobile Printer: Yes
- Power Source: Battery
General Information
- Manufacturer:
- Product Name:
- Cameo 3 Label Printer
- Cameo 3 Mobile Receipt Printer
Physical Characteristics
- Dimensions:
- 6.2" (157.48mm) x 4.7" (119.38mm) x 2.6" (66mm)
- 6.2" (157mm) x 4.7" (119mm) x 2.6" (66mm)
- 6.2" (157mm) x 4.7" (119mm) x x 2.6" (66mm)
- Weight: 1.4 lb (0.64 kg)
Included Features
- Included Features:
- VAR(UMAN/Accessories CD)
- Belt Clip
- Linered Platen
Agency Approvals
- Agency Approvals:
- FCC Part 15 Subpart B/ClassA
- FCC Class B
- CE compliance
- CSA
- NOM
- C-Tick
Environmental Conditions
- Temperature:
- 5°F (-15°C) to 122°F (50°C) Operating
- -13°F (-25°C) to 158°F (70°C) Storage
- Humidity: 10 to 90% Storage
Warranty
- Manufacturer Warranty:
- 1 Year(s)
- 1 Year(s) Limited
Other
- Package Contents:
- Cameo 3 Mobile Receipt Printer
- NiMH Battery
Media Characteristics
- Maximum Label Roll Diameter: 2.2"
- Label Core Size: 0.75"
Mobile Features
- Network Connectivity: Bluetooth
