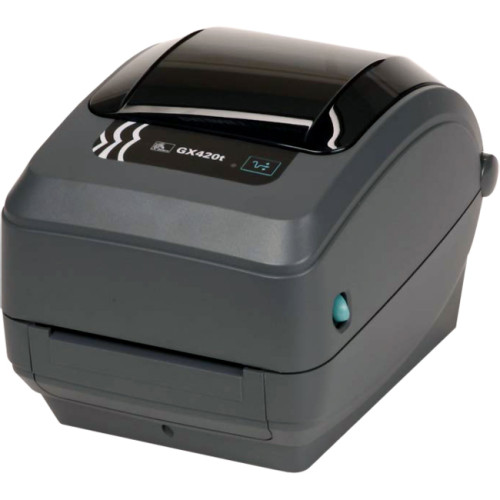

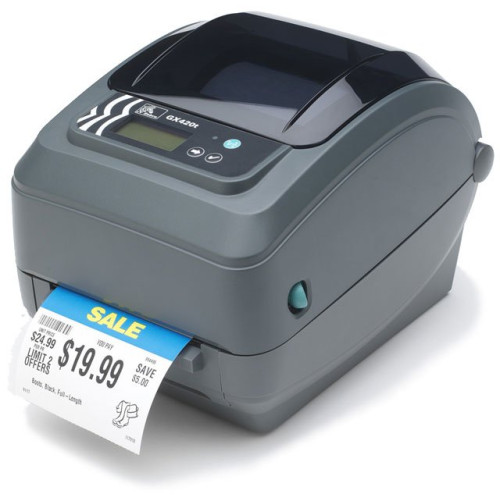

Zebra GX420t Barcode Label Printer Zebra GX420t Barcode Label Printer

Zebra GX420t Barcode Label Printer
Part #: GX42-102411-000 | SKU: ZEB142349

The best-in-class Zebra GX420t thermal transfer printer offers the widest range of features, and fast 6 inches per second print speed to meet all your low- to medium-volume printing requirements. The GX420t has a sleek and compact design, boasts the easiest ribbon loading system on the market, and supports a variety of applications and industries. The GX420t comes standard with EPL and ZPL programming languages and triple connectivity for easy integration into existing systems. For additional flexibility, 10/100 internal Ethernet is also available. Well-suited to any industry and with options such as an adjustable media sensor, cutter and peeler, the reliable Zebra GX420t desktop printer is a smart investment that's always a perfect fit.

Zebra GX420t Barcode Label Printer

Part Details: Thermal transfer/Direct thermal printing, 203 dpi, 4" print width, USB, Serial, Ethernet Interfaces, Dispenser. Includes power cord and USB cable.
Need a different version of the Zebra GX420t Barcode Label Printer? View all 37 configurations

Additional Information

Included Features EPL2
Interface Options Ethernet, Parallel, Serial (RS-232), USB
Manufacturer AIDC Zebra
Max Roll Outer Diameter 5
Model Name GX420t
Print Resolution 203 dpi
Print Speed 6 ips
Printer Type Desktop
Ribbon Core Size 0.5 inch
Zebra GX420t Specs Zebra GX420t Specs (pdf)

Technical Information

  • Maximum Mono Print Speed: 6 in/s
  • Maximum Print Resolution: 203 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 4.09"
  • Recommended Use: Label Print
  • Features: Dispenser
  • Barcode Symbology Supported:
    • Codabar
    • Code 11
    • Code 128
    • Code 128-A
    • Code 128-B
    • Code 128-C
    • Code 39
    • Code 93
    • EAN-13
    • EAN-14
    • EAN-8
    • EAN With 2 or 5 Digit Extension
    • EAN-13 With 2 or 5 Digit Extension
    • EAN-8 With 2 or 5 Digit Extension
    • UCC/EAN 128
    • UPC-A
    • UPC-E
    • UPC-A with 2 or 5 Digit Extension
    • UPC-E with 2 or 5 Digit Extension
    • German Post Code
    • Industrial 2 of 5
    • Interleaved 2 of 5
    • Japan Postal
    • MSI
    • MSI-3
    • POSTNET
    • RSS
    • Standard 2 of 5
    • Aztec Code
    • Codablock
    • Code 49
    • QR Code
    • Data Matrix
    • Macro PDF-417
    • Maxi Code
    • Micro PDF-417
    • PDF-417
    • GS1 DataBar

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Product Series: G
  • Brand Name: Zebra
  • Manufacturer: Zebra Technologies Corporation
  • Product Model: GX420t
  • Product Name: GX420t Label Printer

Physical Characteristics

  • Height: 7.5"
  • Width: 7.6"
  • Depth: 10"
  • Form Factor: Desktop
  • Weight (Approximate): 4.60 lb

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes

Media Types & Handling

  • Maximum Label Width: 4.25"
  • Maximum Label Length: 39"
  • Media Type:
    • Black Bar
    • Black Mark
    • Continuous Label
    • Continuous Receipt
    • Die-cut Label
    • Fanfold
    • Gap
    • Notched
    • Perforated Label
    • Receipt
    • Roll Fed
    • Tag
    • Tag Stock
    • Direct Thermal Label
    • Wristband
  • Media Thickness: 7.50 mil
  • Media Sensor:
    • Reflective Media Sensor
    • Transmissive Media Sensor
  • Label Core Size: 1.50"
  • Ribbon Core Size: 0.50"
  • Maximum Roll Diameter: 5"

Other

  • Platform Supported: PC
  • Package Contents:
    • GX420t Label Printer
    • USA Power Cords
    • User Documentation
    • GX420t Label Printer
    • USA Power Cords
    • User Documentation
  • Certifications & Standards:
    • FCC Part 15
    • Subpart 15
    • VCCI
    • C-Tick
    • EN55022 Class-B
    • EN6100-3-2
    • EN6100-3-3
    • EN55024
    • CCC
    • CB Scheme IEC 60950: 1991 +A1 +A2 + A3 +A4
    • TUV NRTL
    • IRAM
    • NOM
    • AAMI
    • PFC

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC
  • Power Source: AC Supply

Fonts & Emulation

  • Language Emulation:
    • EPL2
    • XML
    • ZPL II

Memory

  • Standard Memory: 8 MB
  • Memory Technology: SDRAM
  • Flash Memory: 4 MB

Network & Communication

  • Ethernet: Yes
  • Ethernet Technology: Fast Ethernet

Warranty

  • Limited Warranty: 1 Year
Extended Details
