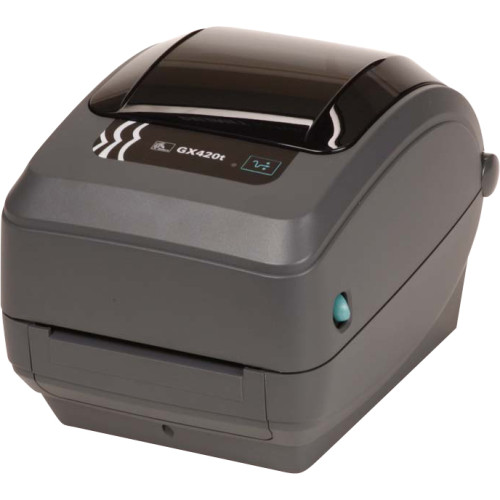

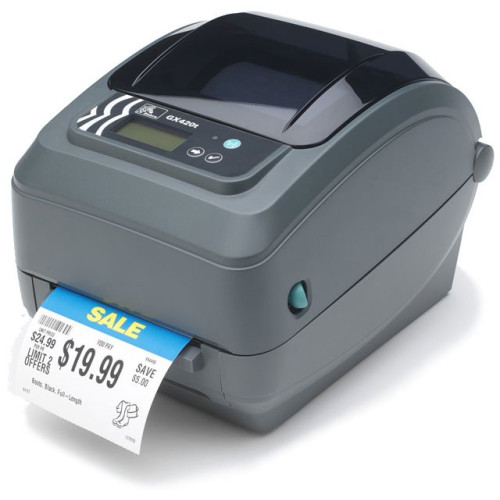

Zebra GX420t Barcode Label Printer Zebra GX420t Barcode Label Printer

Zebra GX420t Barcode Label Printer
Part #: GX42-102810-000 | SKU: ZEB146025

The best-in-class Zebra GX420t thermal transfer printer offers the widest range of features, and fast 6 inches per second print speed to meet all your low- to medium-volume printing requirements. The GX420t has a sleek and compact design, boasts the easiest ribbon loading system on the market, and supports a variety of applications and industries. The GX420t comes standard with EPL and ZPL programming languages and triple connectivity for easy integration into existing systems. For additional flexibility, 10/100 internal Ethernet is also available. Well-suited to any industry and with options such as an adjustable media sensor, cutter and peeler, the reliable Zebra GX420t desktop printer is a smart investment that's always a perfect fit.

Zebra GX420t Barcode Label Printer

Part Details: Thermal transfer/Direct thermal printing, 203 dpi, 4" print width, USB, Serial, Bluetooth Interfaces, LCD. Includes power cord and USB cable.
Need a different version of the Zebra GX420t Barcode Label Printer? View all 37 configurations

Additional Information

Interface Options USB
Manufacturer Zebra
Model Name GX420t
Print Resolution 203 dpi
Printer Type Desktop
Ribbon Core Size 0.5 inch
Zebra GX420t Specs Zebra GX420t Specs (pdf)

Technical Information

  • Maximum Mono Print Speed: 6 in/s
  • Maximum Print Resolution: 203 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 4.09"
  • Recommended Use: Label Print
  • Barcode Symbology Supported:
    • Aztec Code
    • Codablock
    • Code 49
    • Data Matrix
    • QR Code
    • Macro PDF-417
    • Micro PDF-417
    • PDF-417
    • RSS
    • GS1 DataBar
    • Codabar
    • Code 11
    • Code 128-A
    • Code 128-B
    • Code 128-C
    • Code 39
    • Code 93
    • EAN-14
    • EAN-13
    • EAN-8
    • EAN-8 With 2 or 5 Digit Extension
    • EAN-13 With 2 or 5 Digit Extension
    • German Post Code
    • Industrial 2 of 5
    • Interleaved 2 of 5
    • Japan Postal
    • LOGMARS
    • MSI
    • MSI-3
    • Plessey
    • POSTNET
    • UCC/EAN 128
    • Standard 2 of 5
    • UPC-A
    • UPC-E
    • UPC 2 or 5 Digit Extension
    • EAN With 2 or 5 Digit Extension
    • UPC-A with EAN 2 or 5 Digit Extension

General Information

  • Product Type: Thermal Transfer Printer
  • Product Series: G
  • Brand Name: Zebra
  • Manufacturer: Zebra Technologies Corporation
  • Product Model: GX420t
  • Product Name: GX420t Label Printer

Physical Characteristics

  • Height: 7.5"
  • Width: 7.6"
  • Depth: 10"
  • Form Factor: Desktop
  • Weight (Approximate): 4.60 lb

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes

Other

  • Platform Supported: PC
  • Package Contents:
    • GX420t Label Printer
    • USA Power Cord
    • English/European/Latin America/Asian User Documentation
    • GX420t Label Printer
    • USA Power Cord
    • English/European/Latin America/Asian User Documentation
  • Certifications & Standards:
    • FCC Part 15
    • Subpart 15
    • VCCI
    • C-Tick
    • EN55022 Class-B
    • EN6100-3-2
    • EN6100-3-3
    • EN55024
    • CCC
    • CB Scheme IEC 60950: 1991 +A1 +A2 + A3 +A4
    • TUV NRTL
    • IRAM
    • NOM
    • AAMI
    • PFC
    • Unicode

Media Types & Handling

  • Maximum Label Width: 4.25"
  • Maximum Label Length: 39"
  • Media Type:
    • Black Bar
    • Black Mark
    • Continuous Label
    • Continuous Receipt
    • Gap
    • Fanfold
    • Die-cut Label
    • Notched
    • Perforated Label
    • Receipt
    • Tag
    • Roll Fed
    • Tag Stock
    • Wristband
  • Media Thickness: 7.50 mil
  • Media Sensor:
    • Transmissive Media Sensor
    • Reflective Media Sensor
  • Label Core Size: 1.50"
  • Ribbon Core Size: 0.50"
  • Maximum Roll Diameter: 5"

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC
  • Power Source: AC Supply

Fonts & Emulation

  • Language Emulation:
    • EPL2
    • ZPL II
    • XML

Memory

  • Standard Memory: 8 MB
  • Memory Technology: SDRAM
  • Flash Memory: 4 MB

Warranty

  • Limited Warranty: 1 Year

Display & Graphics

  • Display Screen Type: LCD

Network & Communication

  • Bluetooth: Yes
Extended Details
