223161 Zebra

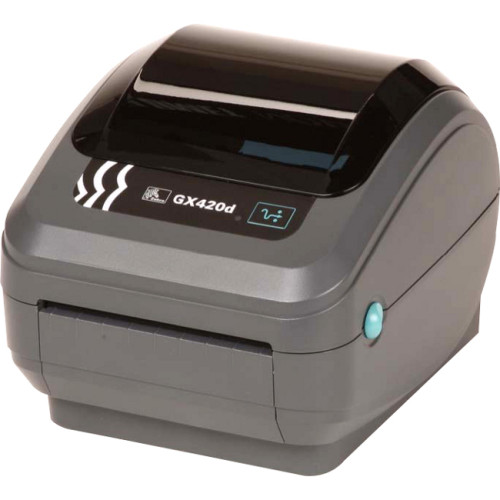

GX42-202812-000 - Zebra GX420d Bar code Printer

GX420d, Direct thermal, 203 dpi, Serial/USB/Bluetooth interfaces, LCD, Cutter. Includes 6' USB cable.
InStock
$1,044.00 $626.40
Ships Today
Free Shipping
- +

Description

The best-in-class Zebra GX420d direct thermal printer offers the widest range of features, and fast 6 inches per second print speed to meet all your low- to medium-volume printing requirements. The GX420d has a sleek and compact design, boasts the smallest footprint in a 4-inch desktop printer, and supports a variety of applications and industries. The GX420d comes standard with EPL and ZPL programming languages and triple connectivity for easy integration into existing systems. For additional flexibility, 10/100 internal Ethernet is also available. Well-suited to any industry and with options such as an adjustable media sensor, cutter and peeler, the reliable Zebra GX420d desktop printer is a smart investment that's always a perfect fit.
  • Print method: direct thermal
  • Resolution: 203 dpi (8 dots/mm)
  • Print speed: up to 6\" (152 mm) per second
  • USB, Serial, and Paralle connectivity
  • OpenACCESS design for easy media loading
  • Smallest footprint in a 4-inch thermal printer
  • Dual-wall reinforced plastic construction
  • 32 bit RISC processor
  • XML-enabled printing
  • Optional cutter, dispenser, Wi-Fi, and Bluetooth interfaces

Additional Information

Item Condition New
Manufacturer Zebra

Recommended Accessories

Recommended Labels

Recommended Printheads  | View All Options

Recommended Warranties

Technical Information

  • Maximum Mono Print Speed: 6 in/s
  • Maximum Print Resolution: 203 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 4.09"
  • Recommended Use: Label Print
  • Features:
    • Auto-calibration
    • Cutter
  • Barcode Symbology Supported:
    • Codabar
    • Code 11
    • Code 128
    • Code 128-A
    • Code 128-B
    • Code 128-C
    • Code 39
    • Code 93
    • EAN-13
    • EAN-14
    • EAN-8
    • EAN-13 With 2 or 5 Digit Extension
    • EAN-8 With 2 or 5 Digit Extension
    • German Post Code
    • Industrial 2 of 5
    • Interleaved 2 of 5
    • Japan Postal
    • LOGMARS
    • MSI
    • MSI-3
    • Plessey
    • POSTNET
    • RSS
    • Standard 2 of 5
    • UCC 128
    • EAN 128
    • UPC 2 or 5 Digit Extension
    • EAN With 2 or 5 Digit Extension
    • UPC-A
    • UPC-E
    • UPC-A with 2 or 5 Digit Extension
    • UPC-E with 2 or 5 Digit Extension
    • UPC-A with EAN 2 or 5 Digit Extension
    • UPC-E with EAN 2 or 5 Digit Extension
    • Aztec Code
    • Codablock
    • Code 49
    • Data Matrix
    • Micro PDF-417
    • Maxi Code
    • PDF-417
    • QR Code
    • GS1 DataBar
    • ISBT-128

General Information

  • Product Type: Direct Thermal Printer
  • Product Series: G
  • Brand Name: Zebra
  • Manufacturer: Zebra Technologies Corporation
  • Product Model: GX420d
  • Product Name: GX420d Label Printer

Physical Characteristics

  • Height: 6"
  • Width: 6.8"
  • Depth: 8.3"
  • Form Factor: Desktop
  • Weight (Approximate): 3.10 lb

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Platform Supported: PC
  • Package Contents:
    • GX420d Label Printer
    • US Power Cords
    • User Programming Manuals
    • Softwares & Drivers CD
    • Usb Cable
    • GX420d Label Printer
    • US Power Cords
    • User Programming Manuals
    • Softwares & Drivers CD
    • Usb Cable
  • Certifications & Standards:
    • PFC
    • FCC Part 15
    • Subpart B
    • VCCI
    • C-Tick
    • EN55022 Class-B
    • EN61000-3-2
    • EN61000-3-0 and EN55024
    • CCC
    • CB Scheme IEC IEC 60950
    • TUV NRTL
    • IRAM NOM
    • AAMI
    • Unicode

Media Types & Handling

  • Maximum Label Width: 4.20"
  • Maximum Label Length: 39"
  • Media Type:
    • Black Bar
    • Black Mark
    • Continuous Label
    • Continuous Receipt
    • Die-cut Label
    • Gap
    • Notched
    • Fanfold
    • Perforated Label
    • Receipt
    • Tag
    • Tag Stock
    • Direct Thermal Label
    • Wristband
    • Linered Media
  • Media Thickness: 7 mil
  • Media Sensor:
    • Transmissive Media Sensor
    • Reflective Media Sensor
  • Label Core Size: 1.50"
  • Maximum Roll Diameter: 5"

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC
  • Power Source: AC Supply

Fonts & Emulation

  • Language Emulation:
    • XSim
    • ZPL II
    • EPL2

Memory

  • Standard Memory: 8 MB
  • Memory Technology: SDRAM
  • Flash Memory: 4 MB

Display & Graphics

  • Display Screen Type: LCD

Network & Communication

  • Bluetooth: Yes

Warranty

  • Limited Warranty: 1 Year
