Additional Information
| Manufacturer | Zebra |
|---|---|
| Model Name | MZ 320 |
| Print Resolution | 203 dpi |

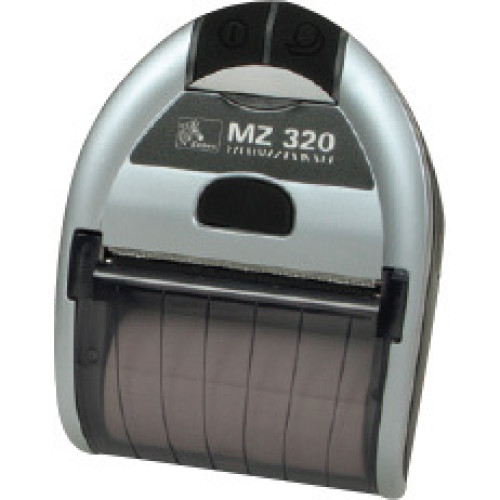

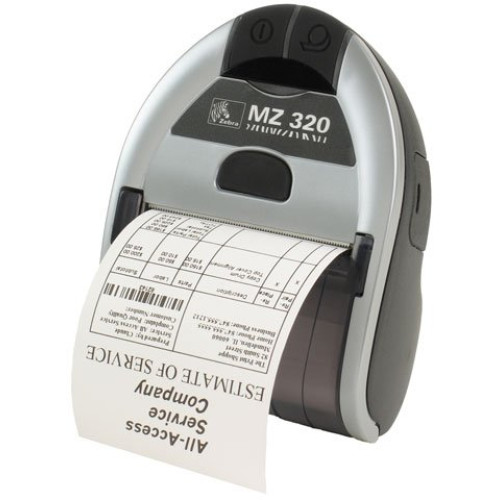

Zebra MZ 320 Specs
Technical Information
- Maximum Mono Print Speed: 3 in/s
- Maximum Print Resolution: 203 dpi
- Print Color: Monochrome
- Maximum Print Width: 2.90"
- Recommended Use: Receipt Print
- Features:
- Smart Battery Management
- Water Resistant
- Belt Clip
- Error Condition Indicator
- Barcode Symbology Supported:
- Codabar
- Code 128
- Code 39
- Code 93
- EAN-8
- MSI
- Interleaved 2 of 5
- Plessey
- POSTNET
- UCC/EAN 128
- UPC-A
- UPC-E
- EAN-18
- NW-7
- UPC-A with 2 or 5 Digit Extension
- UPC-E with 2 or 5 Digit Extension
- UPC-A with EAN 2 or 5 Digit Extension
- UPC-E with EAN 2 or 5 Digit Extension
- FIM
- Maxi Code
- PDF-417
- Aztec Code
- QR Code
- RSS
- GS1 DataBar
- EAN-13
- EAN-14
General Information
- Product Type: Direct Thermal Printer
- Product Series: MZ
- Brand Name: Zebra
- Manufacturer: Zebra Technologies Corporation
- Product Model: MZ 320
- Product Name: MZ 320 Mobile Printer
Physical Characteristics
- Height: 5.3"
- Width: 4.1"
- Depth: 2.3"
- Form Factor: Portable
- Weight (Approximate): 12 oz
Interfaces/Ports
- Infrared: Yes
- USB: Yes
Other
- Country of Origin: China
- Platform Supported: PC
- Package Contents:
- MZ 320 Mobile Printer
- Battery
- US/Japan Power Plug AC Adapter
- Roll of Media
- Cleaning Pen
- Quick Reference Guide
- Mail-in Registration Card
- Belt Clip
- MZ 320 Mobile Printer
- Battery
- US/Japan Power Plug AC Adapter
- Roll of Media
- Cleaning Pen
- Quick Reference Guide
- Mail-in Registration Card
- Belt Clip
- Certifications & Standards:
- FCC Part 15
- EN55022 Class B limits
- FCC
- ICS
- CSA
- IEC 60950
- NOM
- C-tick
- VCCI
- S-Mark
- IP42
- PSE
- CCC
- MII
Media Types & Handling
- Maximum Label Width: 3"
- Media Type:
- Receipt
- Continuous Receipt
- Direct Thermal Paper
- UV Coated Media
- Media Thickness: 4 mil
- Media Sensor:
- Out Of Paper Sensor
- Reflective Media Sensor
- Media Door Open Sensor
- Label Core Size: 0.75"
- Maximum Roll Diameter: 1.88"
Battery Information
- Battery Included: Yes
- Battery Rechargeable: Yes
- Battery Chemistry: Lithium Ion (Li-Ion)
Memory
- Standard Memory: 8 MB
- Flash Memory: 4 MB
Fonts & Emulation
- Language Emulation: CPCL
Network & Communication
- Bluetooth: Yes
Warranty
- Limited Warranty: 1 Year
Power Description
- Power Source: Battery
