Additional Information
| Manufacturer AIDC | Zebra |
|---|---|
| Model Name | MS954 |
| Scanner Capability | 1D |
| Scanner Type | Laser |

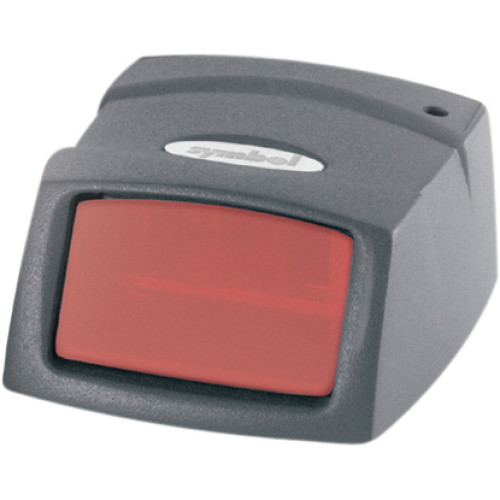

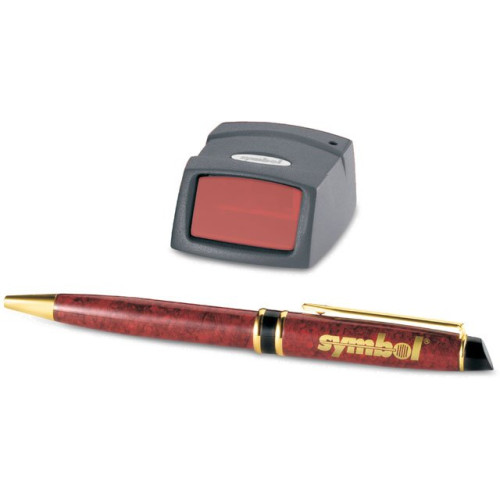

Zebra MS954 Specs
Technical Information
- Barcode Dimension: 1D
- Scan Pattern: Linear
- Scan Rate: 12 scan/s
- Connectivity Technology: Cable
- Light Source: Laser
- Barcode Symbology Supported:
- UPC/EAN
- Code 128
- UCC/EAN 128
- Code 39
- Code 93
- Discrete 2 of 5
- Codabar
- MSI
- RSS
- 1-D Composite Codes
- UPC/EAN
- Code 128
- UCC/EAN 128
- Code 39
- Code 93
- Discrete 2 of 5
- Codabar
- MSI
- RSS
- 1-D Composite Codes
- Depth of Field:
- 0.70" - 7.30"@5 mil
- 0.90" - 12.30"@7.50 mil
- 0.90" - 22"@ - 100%UPC
- 0 mil - 27.50"@20 mil
- 0 mil - 28"@40 mil
- 0 mil - 36"@55 mil
General Information
- Product Type: Fixed Mount Barcode Scanner
- Brand Name: Motorola
- Manufacturer: Motorola, Inc
- Product Model: MS954
- Product Name: Symbol MiniScan 954 Barcode Reader
- Product Line: MiniScan
Physical Characteristics
- Height: 1"
- Width: 1.9"
- Depth: 2.3"
- Weight (Approximate): 1.67 oz
Interfaces/Ports
- Host Interface: Serial
Power Description
- Input Voltage: 5 V DC
Warranty
- Limited Warranty: 1 Year
