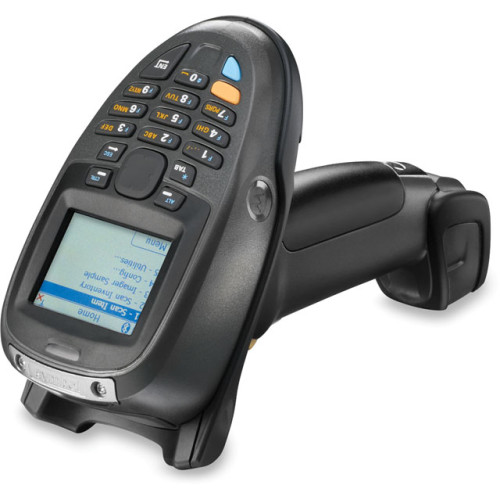

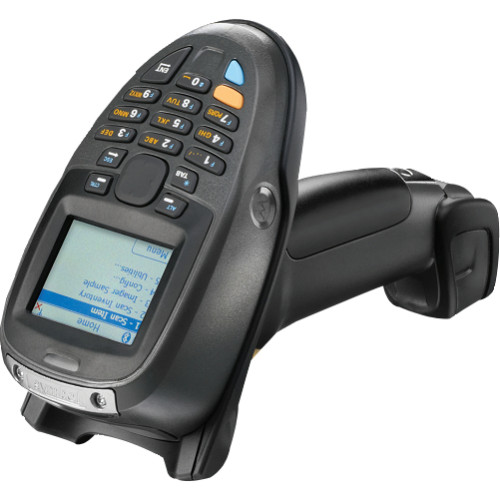

Zebra MT2070 Mobile Computer
Part #: MT2070-HD4D62370WR | SKU: ZEB236128

Two models provide the flexibility to meet a wide variety of business needs - the MT2090 and the MT2070. The MT2090 offers integrated 802.11a/b/g for real-time direct application connectivity anywhere in your environment, ideal for put-away and picking in the retail backroom and warehouse aisles to material tracking, quality control and error-proofing on the manufacturing floor. Both models offer integrated Bluetooth® for a convenient cordless connection to a host device up to 300 feet (91.44 m) away - such as a Point-of-Sale (POS) or workstation. The MT2000 Series can operate in real-time or batch mode, increasing application flexibility. And regardless of whether the device is connected to your wireless LAN or to a host device, support for the latest wireless security protocols keeps your data safe - and helps ensure compliance with PCI and other government regulations.

Zebra MT2070 Mobile Computer

Part Details: SCANNER ONLY. 2D Imager, High-Density, Windows CE 5.0, Color Display, Numeric Keypad, MCL compatible. Does not include necessary cables or accessories. Use either RS-232 cable (Part# CBA-R12-S07PAR) or USB cable (Part# CBA-U12-S07PAR) plus 12v PS (Part# PWRS-14000-148R) for tethered mode for this configuration.

Additional Information

Display Resolution 320 x 240
IP Rating IP54
Interface Options Bluetooth
Keypad 21 Keys, Numeric
Manufacturer AIDC Zebra
Model Name MT2000
Operating System Windows CE 5.0
Operating Temperature -4 F - 122 F (-20 C - 50 C)
Processor Marvell PXA270 (312 MHz)
RAM Memory 64 MB
Scanner Capability 2D
Scanner Type Imager
Style Gun

Technical Information

  • Scanner Range: High Density
  • Connectivity Technology: Batch
  • Image Sensor: Imager
  • Electrostatic Discharge (ESD):
    • +/-15 kV DC Air Discharge
    • +/-8 kV DC Direct Discharge
    • +/-8 kV DC Indirect Discharge
  • Drop Specification: 72" To Concrete @ -4°F (-20°C) to 122°F (50°C)

General Information

  • Product Type: Handheld Terminal
  • Product Series: MT2000
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: MT2070
  • Product Name: MT2070 Handheld Terminal

Physical Characteristics

  • Height: 7.8"
  • Width: 3.1"
  • Depth: 5"
  • Weight (Approximate): 13.50 oz

Interfaces/Ports

  • USB: Yes
  • Serial: Yes

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Certifications & Standards:
    • IP54
    • FIPS 140-2
    • Electrical Safety:
    • Certified to UL60950-1
    • CSA C22.2 No. 60950-1
    • EN60950-1
    • EMI/RFI:
    • FCC Part 2 (SAR)
    • FCC Part 15 Subpart B - Class B
    • RSS210
    • EN 301-489-1, 489-17
    • Laser Safety:
    • IEC Class 2
    • FDA Class II in Accordance with IEC60825-1
    • EN60825-1

Display & Graphics

  • Screen Mode: QVGA
  • Display Color: Color
  • Screen Resolution: 320 x 240

Processor & Chipset

  • Processor Manufacturer: Intel
  • Processor Speed: 312 MHz
  • Processor Type: XScale PXA270

Memory

  • Flash Memory: 64 MB
  • Standard Memory: 64 MB

Battery Information

  • Battery Capacity: 2400 mAh
  • Battery Chemistry: Lithium Ion (Li-Ion)

Keyboard/Keypad

  • Keyboard Type: Numeric
  • Number of Keys: 21

Network & Communication

  • Bluetooth: Yes

Warranty

  • Limited Warranty: 3 Year

Software

  • Operating System: Windows CE 5.0
Extended Details
