Additional Information
| Manufacturer AIDC | Zebra |
|---|---|
| Max Roll Outer Diameter | 2.2 |
| Model Name | QL220 |
| Print Resolution | 203 dpi |
| Printer Type | Mobile |
| Printing Technology | Direct Thermal |
Zebra QL220 Specs
Technical Information
- Print Method:
- Direct Thermal
- Direct Thermal (DT)
- Print Resolution: 203 dpi
- Print Speed: 3 ips
- Maximum Print Width: 1.89"
- Maximum Label Width: 2.18"
- Maximum Label Length: 32"
- Media Sensor:
- Reflective
- Transmissive
- Printer Language: CPCL-native
- RAM Memory: 2MB
- Flash Memory: 2MB
- Mobile Printer: Yes
- Power Source: Battery
General Information
- Manufacturer:

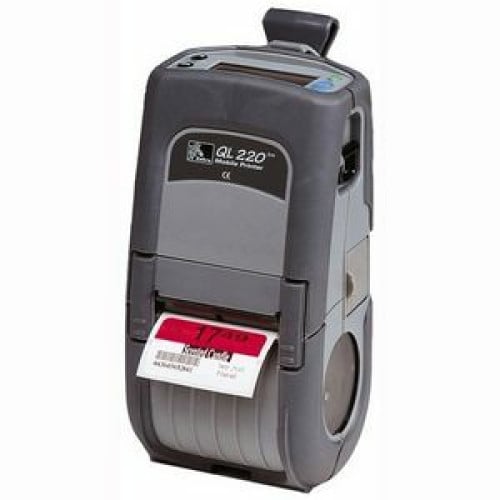

- Product Name: QL 220 Mobile Label Printer
Physical Characteristics
- Dimensions:
- 7.15" (181.61mm) x 3.57" (90.68mm) x 2.96" (75mm)
- 7.15" (181.61mm) x 3.57" (90.68mm) x x 2.96" (75mm)
- Weight: 1.04 lb (0.47 kg)
Included Features
- Included Features:
- LCD Display
- Linered Platen
- Shoulder Strap
Agency Approvals
- Agency Approvals:
- FCC Class B
- CE Class B
- CSA
- CB
- NOM
- C-Tick
Environmental Conditions
- Temperature:
- 5°F (-15°C) to 122°F (50°C) Operating
- -13°F (-25°C) to 158°F (70°C) Storage
- Humidity:
- 10 to 80% Operating Non-condensing
- 10 to 90% Storage Non-condensing
Other
- Package Contents:
- QL 220 Mobile Label Printer
- Lithium Ion Battery
Media Characteristics
- Maximum Label Roll Diameter: 2.2"
- Label Core Size: 1.38"
Warranty
- Manufacturer Warranty: 1 Year(s) Limited
