24101 Zebra

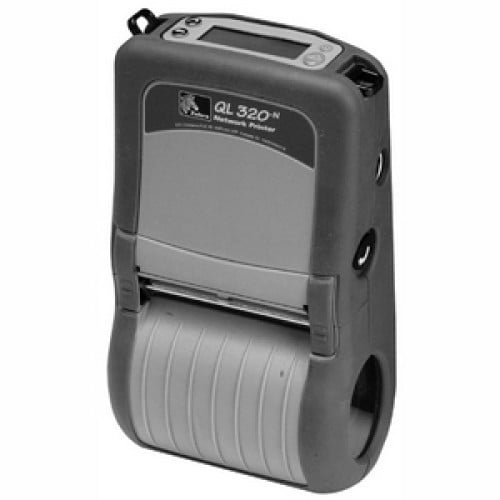

Zebra QL320 Portable Bar code Printer Part # Q3B-LUNA0000-00

The QL320 direct thermal mobile printer has been designed with the most advanced technology in rubberized over-molding to maintain both rugged construction and minimal weight. With center-loading media smart battery monitoring and an optional LCD it provides user-friendly options to keep your business moving.

Q3B-LUNA0000-00 - Zebra QL320 Portable Bar code Printer

Part Details: QL320, Direct thermal, 3 inch Print width, 2MB SRAM, 2MB Flash, LCD, 802.11b. Power supply (Part# CC16614-G4) not included. See accessories.
InStock

Additional Information

Filter Filter
Interface Options Wireless
Label Core 0.75 inches
Manufacturer Zebra
Max Roll Outer Diameter 2.6
Maximum Print Width 3.00
Print Method Direct Thermal
Print Resolution 203 dpi
Printer Mobility Mobile
Printer Type Mobile
Product Condition New
  • Accommodates situations real-time and at the point of application
  • Compatible with a wide variety of terminals
  • Offers a rugged, lightweight mobile solution

Technical Information

  • Print Method:
    • Direct Thermal
    • Direct Thermal (DT)
  • Print Resolution: 203 dpi
  • Print Speed: 4 ips
  • Interfaces:
    • 1 x Wireless
    • Wireless
  • Maximum Print Width: 2.9"
  • Maximum Label Width: 3.12"
  • Maximum Label Length: 16"
  • Media Sensor:
    • Reflective
    • Transmissive
  • Printer Language: CPCL-native
  • Power Supply: External Not Included
  • RAM Memory: 2MB
  • Flash Memory: 2MB
  • Mobile Printer: Yes
  • Power Source: Battery

General Information

Physical Characteristics

  • Dimensions:
    • 8" (203.2mm) x 4.6" (116.84mm) x 3.1" (79mm)
    • 8" (203.2mm) x 4.6" (116.84mm) x x 3.1" (79mm)
  • Weight: 1.65 lb (0.75 kg) - With Battery

Included Features

  • Included Features:
    • Linered Platen
    • Cleaning Pen
    • Belt Clip
    • LCD Display

Environmental Conditions

  • Temperature:
    • 5°F (-15°C) to 122°F (50°C) Operating
    • 32°F (0°C) to 122°F (50°C) Operating - With LCD
    • -13°F (-25°C) to 158°F (70°C) Storage
    • -4°F (-20°C) to 158°F (70°C) Storage - With LCD
  • Humidity:
    • 10 to 80% Operating Non-condensing
    • 10 to 90% Storage Non-condensing

Agency Approvals

  • Agency Approvals:
    • CSA
    • CB
    • NOM
    • C-Tick
    • CE Class B
    • FCC Class B

Other

  • Package Contents:
    • QL 320 Mobile Label Printer
    • Lithium ion battery

Warranty

  • Manufacturer Warranty:
    • 1 Year(s)
    • 1 Year(s) Limited

Media Characteristics

  • Maximum Label Roll Diameter: 2.625"
  • Label Core Size: 1.38"

Mobile Features

  • Network Connectivity: 802.11b (Symbol CF) Worldwide
Extended Details
