Additional Information
| Interface Options | Serial (RS-232), USB |
|---|---|
| Manufacturer | Zebra |
| Max Roll Outer Diameter | 2.6 |
| Model Name | QL 420 Plus |
| Print Resolution | 203 dpi |
| Printer Type | Mobile |
| Printing Technology | Direct Thermal |

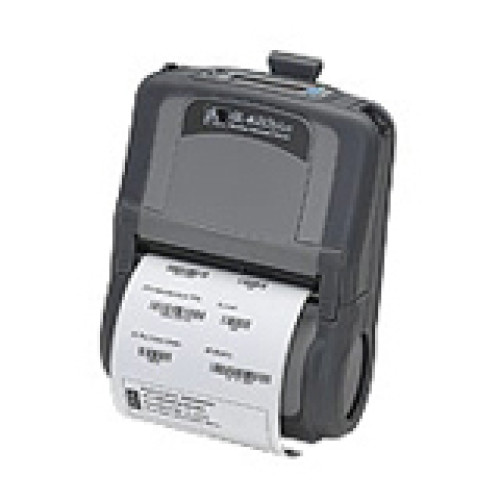

Zebra QL 420 Plus Specs
Technical Information
- Maximum Mono Print Speed: 3 in/s
- Peel Facility: Yes
- Maximum Print Resolution: 203 dpi
- Print Color: Monochrome
- Maximum Print Width: 4.09"
- Recommended Use: Label Print
- Features:
- Peel Facility
- Belt Clip
- LCD Display
- Barcode Symbology Supported:
- Codabar
- Code 128
- Code 93
- Code 39
- EAN-13
- EAN-8
- Interleaved 2 of 5
- MSI
- Plessey
- POSTNET
- UCC/EAN 128
- UPC-A
- UPC-E
- EAN-18
- FIM
- Maxi Code
- PDF-417
- Aztec Code
- Data Matrix
- QR Code
- RSS
- GS1 DataBar
General Information
- Product Type: Direct Thermal Printer
- Product Series: QL
- Brand Name: Zebra
- Manufacturer: Zebra Technologies Corporation
- Product Model: QL 420 Plus
- Product Name: QL 420 Plus Thermal Label Printer
Physical Characteristics
- Height: 7.5"
- Width: 6"
- Depth: 3"
- Form Factor: Portable
Interfaces/Ports
- USB: Yes
Other
- Platform Supported: PC
- Package Contents:
- QL 420 Plus Thermal Label Printer
- Battery
- QL 420 Plus Thermal Label Printer
- Battery
- Additional Information:
- Present Mode
- Media Handling : Direct Thermal/Linered Platen
- Open access design and center locking media loading
- Rubber infused plastic over mold design for tough conditions
- Backward compatible with Encore and Cameo media and cables
- Character Set : US/Canadian English/Latin 1 & 5 (Including Turkish)
- Grouping "0": (US/Canada/Australia/New Zealand/ Mexico/Nicaragua)
Media Types & Handling
- Maximum Label Width: 4.12"
- Media Type:
- Roll Fed
- Die-cut Label
- Linerless
- Receipt
- Fanfold
- Black Bar
- Media Thickness: 6.50 mil
- Label Core Size: 1.38"
- Maximum Roll Diameter: 2.63"
Fonts & Emulation
- Language Emulation:
- CPCL
- ZPL
- EPL II
- XML
- EPL
Battery Information
- Battery Included: Yes
- Battery Chemistry: Lithium Ion (Li-Ion)
Memory
- Standard Memory: 16 MB
- Flash Memory: 8 MB
Warranty
- Limited Warranty: 1 Year
