86503 Zebra

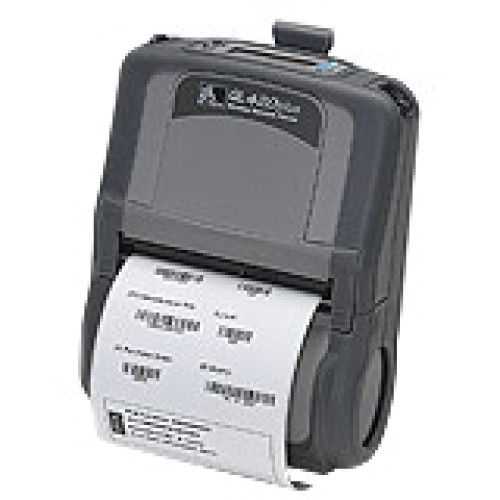

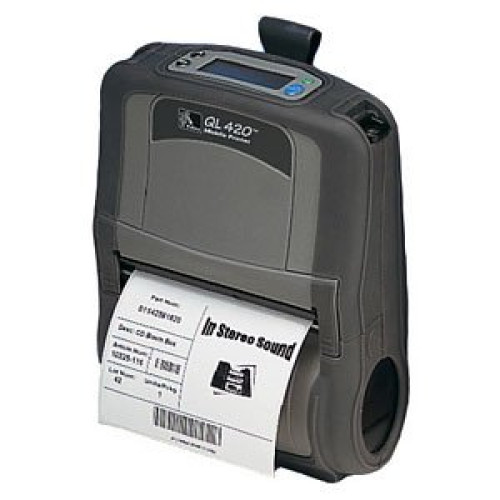

Zebra QL 420 Plus Portable Bar code Printer Part # Q4D-LUGA0000-00

The newly-updatedQL 420 Plus direct thermal mobile printer has been designed with the most advanced technology in rubberized over molding to maintain both rugged construction and minimal weight. With center-loading media smart battery monitoring and an optional LCD it provides user-friendly options to keep your business moving.

Q4D-LUGA0000-00 - Zebra QL 420 Plus Portable Bar code Printer

Part Details: QL 420 Plus, Mobile Printer, Direct thermal printing, 203 dpi, 4" print width, 16MB RAM, 8MB Flash, USB, Wi-Fi (802.11b/g), Linered Platen, LCD, and Belt Clip. Power supply (Part# CC16614-G4) not included. See accessories.
InStock

Additional Information

Filter Filter
Interface Options USB, Wireless
Label Core 0.75 inches
Manufacturer Zebra
Max Label Width 4.12
Max Roll Outer Diameter 2.6
Maximum Print Width 4.09
Print Method Direct Thermal
Print Resolution 203 dpi
Printer Mobility Mobile
Printer Type Mobile
Product Condition New
  • Accommodates situations real-time and at the point of application
  • Compatible with a wide variety of terminals
  • Offers a rugged, lightweight mobile solution

Technical Information

  • Maximum Mono Print Speed: 3 in/s
  • Peel Facility: Yes
  • Maximum Print Resolution: 203 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 4.09"
  • Recommended Use: Label Print
  • Features:
    • Peel Facility
    • Belt Clip
  • Barcode Symbology Supported:
    • Codabar
    • Code 128
    • Code 39
    • Code 93
    • EAN-13
    • EAN-8
    • Interleaved 2 of 5
    • MSI
    • POSTNET
    • Plessey
    • UCC/EAN 128
    • UPC-A
    • UPC-E
    • EAN-18
    • FIM
    • Maxi Code
    • PDF-417
    • Aztec Code
    • Data Matrix
    • QR Code
    • RSS
    • GS1 DataBar

General Information

  • Product Type: Direct Thermal Printer
  • Product Series: QL
  • Brand Name: Zebra
  • Manufacturer: Zebra Technologies Corporation
  • Product Model: QL 420 Plus
  • Product Name: QL 420 Plus Thermal Printer

Physical Characteristics

  • Height: 7.5"
  • Width: 6"
  • Depth: 3"
  • Form Factor: Portable

Interfaces/Ports

  • USB: Yes

Media Types & Handling

  • Maximum Label Width: 4.12"
  • Maximum Label Length: 32"
  • Media Type:
    • Receipt
    • Roll Fed
    • Die-cut Label
    • Linerless
    • Fanfold
    • Black Bar
  • Media Size: Custom Size
  • Media Thickness: 6.50 mil
  • Label Core Size: 1.38"
  • Maximum Roll Diameter: 2.63"

Other

  • Platform Supported: PC
  • Package Contents:
    • QL 420Plus Label Printer
    • Battery
    • QL 420Plus Label Printer
    • Battery

Fonts & Emulation

  • Language Emulation:
    • CCPL
    • ZPL
    • EPL II
    • XML
    • EPL

Memory

  • Standard Memory: 16 MB
  • Flash Memory: 8 MB

Network & Communication

  • Wireless LAN: Yes

Display & Graphics

  • Display Screen Type: LCD

Warranty

  • Limited Warranty: 1 Year

Battery Information

  • Battery Chemistry: Lithium Ion (Li-Ion)
Extended Details

Recommended Accessories

Recommended Labels

  • Zebra Portable Printer Label (LD-R7BL5B)

    PolyPro 4000D, 2" x 1" Direct thermal polypropylene label. Black mark sensing, Not perforated. 350 labels/roll, 36 roll case. Also available as a roll (Part# LD-R7BL5B-R).
    Price: $162.60
    In Stock
  • Zebra Portable Printer Label (LD-R2BF5W)

    PolyPro 4000D, 2" x 1.25" Direct thermal polypropylene label. Shelf mark adhesive. 280 labels/roll, 36 roll case. Also available as a roll (Part# LD-R2BF5W-R).
    Price: $178.00
    In Stock
  • Zebra Z-Perform 1000D Label (LD-R2AL5B)

    Z-Perform 1000D, 2" x 1.25" Direct thermal paper label. Black mark sensing, Not perforated. 280 labels/roll, 36 roll case. Also available as a roll (Part# LD-R2AL5B-R).
    Price: $99.40
    In Stock
  • Zebra Z-Perform 1000D Label (LD-R4AW5B)

    Z-Perform 1000D, 4" x 6" Direct thermal paper label. Black mark sensing. 105 labels/roll. 36 roll case. Also available as a roll (Part# LD-R4AW5B-R).
    Price: $328.50
    In Stock
  • Zebra Z-Perform 1000D Label (LD-R7AM5R)

    Z-Perform 1000D, 2" x 3" Direct thermal paper label. Black mark sensing, Not perforated. 125 labels/roll, 36 roll case.
    Price: $114.20
    In Stock
