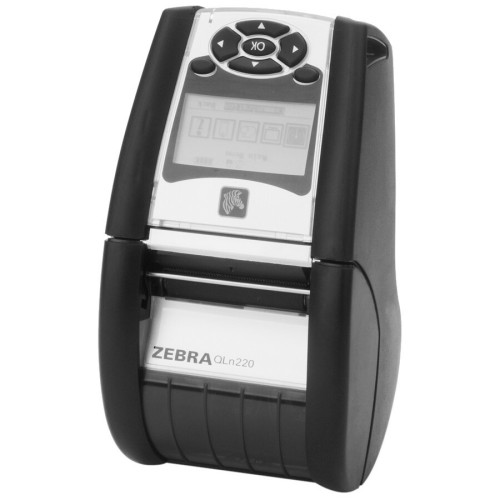

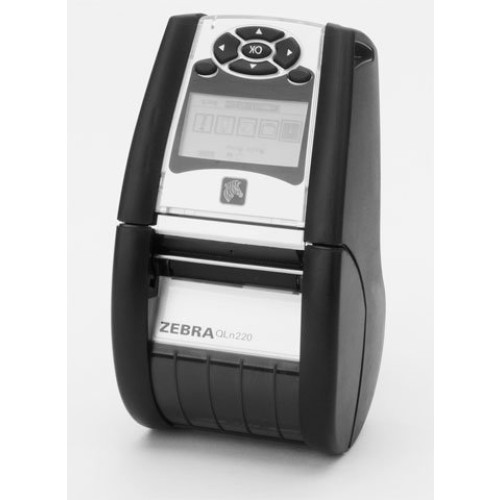

Zebra QLn220 Portable Barcode Printer
Part #: QN2-AU1A0M00-00 | SKU: ZEB289702

More Standard Features

• Apple^® iOS, Android, Windows Mobile and BlackBerry^® connectivity
• CPCL, EPL™ and ZPL^® programming languages
• 256 MB Flash supports downloadable programs, receipt formats, fonts and graphics (64 MB available for user storage)
• 2450 mAh (nominal) 18.1 Wh removable, rechargeable Li-Ion battery
• Built-in battery charger
• Belt clip for unobtrusive and convenient printing (not compatible with extended capacity battery)
• Black mark and gap media sensing using fixed center position sensors
• Easy-to-use peel and present mode
• Label present sensor for issuing labels one at a time
• Tear bar for easy media dispensing
• Center-loading media locking for variable roll widths
• “Clamshell” design for easy media loading
• Management: Mirror, SNMP, Web server, Profile Manager, AirWatch^® and Wavelink Avalanche^®
• Large, easy-to-read LCD control panel (240 x 128 pixels)
• LCD can be customized using WML (text and icons)
• 5-way navigation buttons, two software defined keys
• Printer alerts on the display, help menus
• Tolerance of multiple drops from 5’/1.52 m to concrete
• IP43 dust- and water-resistance rating (IP54 with soft case)
• 400 MHz 32-bit ARM processor
• XML support
• Supports vertical and horizontal printing
• Printers can be used in any orientation
• QR barcode links to web-based help pages
• Zebra Print Touch simplifies Bluetooth pairing and launches web-based help pages with Near Field Communication (NFC) enabled devices
• Label odometer
• Real-time clock

Printer Specifications

Resolution: 203 dpi (8 dots/mm)

Memory

• 128 MB RAM
• 256 MB Flash


Max print width: 1.9\" (48 mm)
Max print length: 32\" (813 mm)
Print speed: up to 4 ips (102 mm/s)

Media Characteristics

• Maximum label and liner width: 2.18\" (55.4 mm)
• Minimum label and liner width: .63\" (16 mm)
• Maximum label and liner length: 32\" (813 mm)
• Maximum roll diameter: 2.2\" (55.9 mm)
• Core diameter: .75\" (19 mm) or 1.375\" (34.9 mm)
• Media thickness: 2.3 mil to 5.5 mil
• Media types: Die-cut labels and tags, linerless labels, receipt paper, black bar and gap sensing

Programming Lanuages

• CPCL, EPL™ and ZPL^®

Operating Characteristics

• Operating temperature: -4° F (-20° C) to 122° F (50° C)
• Storage temperatures: -13° F (-25° C) to 158° F (65° C)
• Operating humidity: 10% to 90% non-condensing
• Storage humidity: 10% to 90% non-condensing
• Electrical DC charging input: 12 VDC ± 10% at 2A maximum
• 2.45 AH, 7.4V removable, rechargeable Li-ion battery

Agency approvals

• FCC Part 15, Subpart B
• EN55022 Class-B
• EN60950
• EN55024
• VCCI class B
• EN55024
• EN61000-4-2
• EN61000-4-3
• EN61000-4-4
• EN61000-4-5
• CE
• UL
• TUV
• CSA

Physical Characteristics

Height: 2.75\" (70 mm)
Depth: 6.5\" (165 mm)
Weight: 1.25 lbs (.57 kg)

Communication and Interface Capabilities

• 802.11 a/b/g/n with BT 3.0
• Bluetooth 3.0
• 10/100 Ethernet support (via docking cradle)
• USB 2.0 Full Speed Interface (12 Mbps) with mini-B connector
• Serial interface: 14-pin RS-232C

barcodes/Symbologies

Linear Code 39
Code 93
UCC/EAN-128
Code 128
Codabar
Interleaved 2-of-5
UPC-A
UPC-E
EAN-8
EAN-13
EAN-8 and EAN-13 with 2 or 5 digit extensions
UPC-A and UPC-E with 2 or 5 digit extensions
2-dimensional PDF417
MicroPDF417
MaxiCode
QR Code
RSS / GS1 DataBar family (12 barcodes)
Aztec
Data Matrix
TLC 39
