Additional Information
| Manufacturer | Zebra |
|---|---|
| Model Name | QLn320 |
| Print Resolution | 203 dpi |

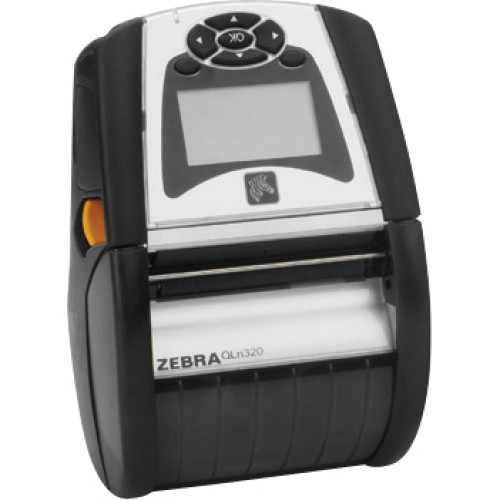

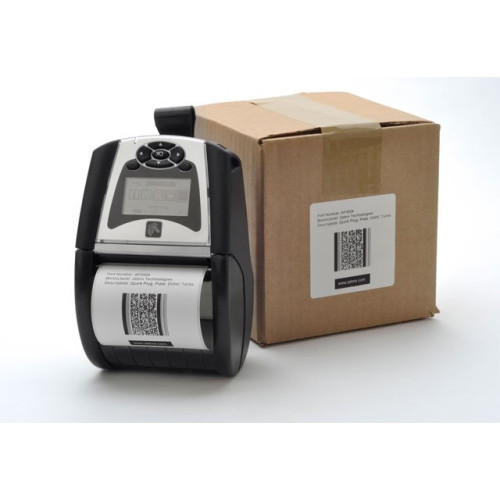

Zebra QLn320 Specs
Zebra QLn320 Driver
Technical Information
- Maximum Mono Print Speed: 4 in/s
- Peel Facility: Yes
- Maximum Print Resolution: 203 dpi
- Print Color: Monochrome
- Maximum Print Width: 2.90"
- Recommended Use: Label Print
- Features:
- Peel Facility
- Tear Bar
- Label Odometer
- Real Time Clock
- Barcode Symbology Supported:
- Code 39
- Code 93
- UCC/EAN 128
- Code 128
- Codabar
- Interleaved 2 of 5
- UPC-A
- UPC-E
- EAN-8
- EAN-13
- PDF-417
- Micro PDF-417
- Maxi Code
- QR Code
- RSS
- GS1 DataBar
- Aztec Code
- Data Matrix
- TLC 39
- MSI
- Plessey
- POSTNET
- FIM
General Information
- Product Type: Direct Thermal Printer
- Product Series: QLn
- Brand Name: Zebra
- Manufacturer: Zebra Technologies Corporation
- Product Model: QLn320
- Product Name: QLn320 Label Printer
Physical Characteristics
- Height: 3.3"
- Width: 4.6"
- Depth: 6.8"
- Form Factor: Portable
- Weight (Approximate): 1.60 lb
Interfaces/Ports
- USB: Yes
- Serial Port: Yes
Other
- Platform Supported: PC
- Package Contents:
- QLn320 Label Printer
- Battery
- QLn320 Label Printer
- Battery
- Certifications & Standards:
- FCC Part 15, Subpart B
- EN55022 Class-B
- EN60950
- EN55024
- VCCI class B
- EN55024
- EN61000-4-2
- EN61000-4-3
- EN61000-4-4
- EN61000-4-5
- CE
- UL
- TUV
- CSA
Media Types & Handling
- Maximum Label Width: 3.13"
- Maximum Label Length: 32"
- Media Type:
- Direct Thermal Label
- Linered Label
- Black Mark
- Gap
- Roll Fed
- Die-cut Label
- Receipt
- Black Bar
- Media Thickness: 6.50 mil
- Media Sensor:
- Label Taken Sensor
- Transmissive Media Sensor
- Label Core Size: 0.75"
- Maximum Roll Diameter: 2.60"
Battery Information
- Battery Included: Yes
- Battery Rechargeable: Yes
- Battery Chemistry: Lithium Ion (Li-Ion)
Fonts & Emulation
- Language Emulation:
- CPCL
- ZPL
Memory
- Standard Memory: 128 MB
- Flash Memory: 256 MB
Power Description
- Input Voltage: 7.4 V DC
- Power Source: Battery
Warranty
- Limited Warranty: 1 Year
Network & Communication
- Bluetooth: Yes
Display & Graphics
- Display Screen Type: LCD
