Newer Version Is Available

QLn320, Bluetooth, Direct Thermal Printer, MFi Certified compatible, Ethernet, CPCL/EPL/ZPL, 128 MB RAM, 256 MB Flash, XML, Requires a cradle. Works with Apple iOS (iPad, iPhone, iPod)
$1,040.00 $800.80
Ships Today
Free Shipping
- +

Product was successfully added to your shopping cart.
118594 Zebra

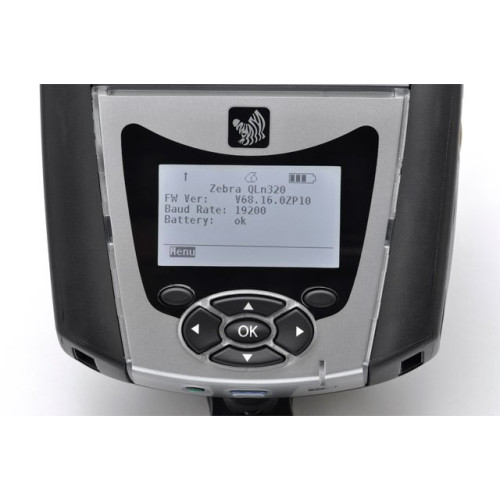

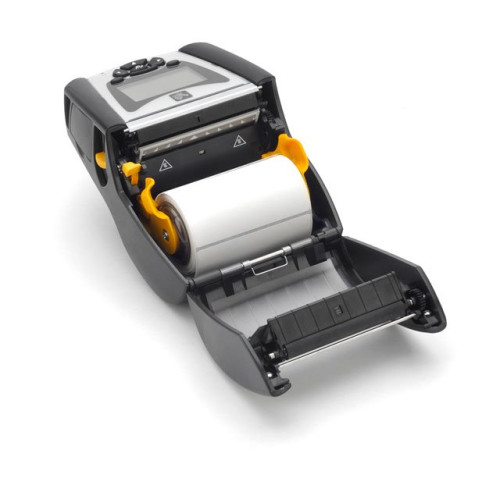

QN3-AUBA0E00-00 - Zebra QLn320 Portable Bar code Printer

QLn320, 3 INCH, USB, Ethernet, Bluetooth, 128MB/256MB, CPCL, LCD, DT, LINERED PLATEN, 3/4 INCH MEDIA CORE SIZE. Power supply (Part# P1031365-063) not included. See accessories.
InStock
Free Shipping

Description

Boost productivity and print anywhere with drop-resistant mobile printers that offer high-quality printing, easy integration, proactive alerts and convenient charging. Trust these mobile printers to improve efficiencies throughout operations–in the warehouse, shipping and receiving and merchandising. Quickly and easily print barcode labels, receipts, tickets and more, on-site and on-demand.
  • Direct thermal printing technology
  • 203 dpi resolution (8 dots/mm)
  • Print speed: up to 4 ips
  • Apple iOS, Android, Windows Mobile and BlackBerry connectivity
  • CPCL, EPL and ZPL programming languages
  • 256 MB Flash supports downloadable programs, receipt formats, fonts and graphics
  • Built-in battery charger
  • Belt clip for unobtrusive and convenient printing
  • Black mark and gap media sensing
  • Easy-to-use peel and present mode
  • Label present sensor for issuing labels one at a time
  • Tear bar for easy media dispensing
  • \"Clamshell\"

Additional Information

Printer Type Mobile
Print Method Direct Thermal
Print Resolution 203 dpi
Interface Options Ethernet
Maximum Print Width 3.00
Filter Filter
Manufacturer Zebra

Recommended Accessories

QLn Accessories, Belt clip replacement kit (quantity 20)
$35.07 $30.34
Ships Today
Free Shipping
- +
Smart spare battery for the QLN220 and the QLN320
$99.00 $76.56
Ships Today
Free Shipping
- +
QLn Series Software and Documentation User CD
$20.17
Ships In 3-5 Days
Free Shipping
- +
4-bay Ethernet/charging Cradle with AC adapter and power plug, US
$569.83 $394.57
Ships Today
Free Shipping
- +
Single Bay Ethernet/Charging Cradle Only, No Ac Adapter And Us Power Plug
$166.57 $116.39
Ships In 3-5 Days
Free Shipping
- +

Recommended Warranties

Service Contract - 5 year, Essential, Purchased within 30 days of Device, 3 Day TAT NA, MX, 5 DAY TAT ROW, QLn220, QLn320, QLn420, 5 Years, Comprehensive
$450.00
Ships In 3-5 Days
Free Shipping
- +

Technical Information

  • Maximum Mono Print Speed: 4 in/s
  • Peel Facility: Yes
  • Maximum Print Resolution: 203 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 2.90"
  • Recommended Use: Label Print
  • Features:
    • Belt Clip
    • Tear Bar
    • Mirror Printing
    • Label Odometer
    • Real Time Clock
    • Vertical Printing
    • Horizontal Printing
    • Peel Facility
    • Dust Resistant
    • Water Resistant
    • Hand Strap
    • Shoulder Strap
  • Barcode Symbology Supported:
    • Code 39
    • Code 93
    • UCC/EAN 128
    • Code 128
    • Codabar
    • Interleaved 2 of 5
    • UPC-A
    • UPC-E
    • EAN-13
    • EAN-8
    • PDF-417
    • Micro PDF-417
    • Maxi Code
    • QR Code
    • RSS
    • GS1 DataBar
    • Aztec Code
    • Data Matrix
    • TLC 39
    • FIM
    • POSTNET
    • Plessey

General Information

  • Product Type: Direct Thermal Printer
  • Product Series: QLn
  • Brand Name: Zebra
  • Manufacturer: Zebra Technologies Corporation
  • Product Model: QLN320
  • Product Name: QLn320 Mobile Printer

Physical Characteristics

  • Height: 3.3"
  • Width: 4.6"
  • Depth: 6.8"
  • Form Factor: Portable
  • Weight (Approximate): 1.60 lb

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Platform Supported: PC
  • Package Contents:
    • QLn320 Mobile Printer
    • Software & Drivers CD
    • Battery
    • QLn320 Mobile Printer
    • Software & Drivers CD
    • Battery
  • Certifications & Standards:
    • IP54
    • FCC Part 15, Subpart B
    • EN55022 Class-B
    • EN60950
    • EN55024
    • VCCI class B
    • EN55024
    • EN61000-4-2
    • EN61000-4-3
    • EN61000-4-4
    • EN61000-4-5
    • CE
    • UL
    • TUV
    • CSA
    • IP43
    • IP54
    • Unicode
    • UTF-16

Media Types & Handling

  • Maximum Label Width: 3.10"
  • Maximum Label Length: 32"
  • Media Type:
    • Linered Media
    • Black Mark
    • Gap
    • Roll Fed
    • Direct Thermal Label
    • Label
  • Media Thickness: 6.50 mil
  • Media Sensor:
    • Transmissive Media Sensor
    • Label Taken Sensor
    • Reflective Media Sensor
  • Label Core Size: 0.75"
  • Maximum Roll Diameter: 2.60"

Fonts & Emulation

  • Language Emulation:
    • CPCL
    • ZPL
    • XML

Battery Information

  • Battery Included: Yes
  • Battery Rechargeable: Yes
  • Battery Chemistry: Lithium Ion (Li-Ion)

Network & Communication

  • Bluetooth: Yes
  • Ethernet: Yes
  • Ethernet Technology: Fast Ethernet

Memory

  • Standard Memory: 128 MB
  • Flash Memory: 256 MB

Power Description

  • Input Voltage: 7.4 V DC
  • Power Source: Battery

Warranty

  • Limited Warranty: 1 Year

Display & Graphics

  • Display Screen Type: LCD
