| Manufacturer | Zebra |
|---|---|
| Model Name | RW 220 |

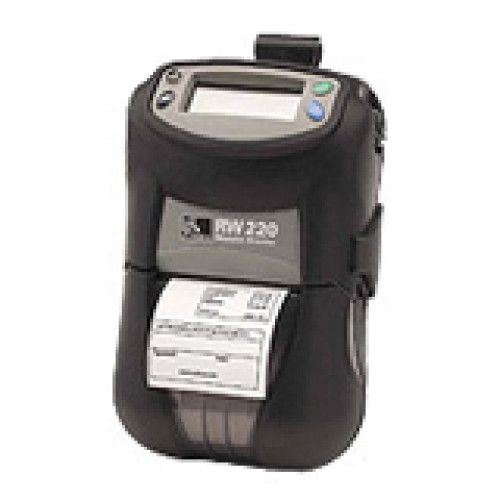

Zebra RW 220 Specs
Technical Information
- Maximum Mono Print Speed: 3 in/s
- Maximum Print Resolution: 203 dpi
- Print Color: Monochrome
- Maximum Print Width: 2.20"
- Recommended Use: Receipt Print
- Features:
- LCD Display
- Belt Clip
- Barcode Symbology Supported:
- Code 39
- Code 93
- UCC/EAN 128
- Code 128
- UPC-A
- UPC-E
- EAN-8
- EAN-13
- EAN-14
- UPC 2 or 5 Digit Extension
- EAN With 2 or 5 Digit Extension
- Plessey
- FIM
- POSTNET
- Interleaved 2 of 5
- MSI
- Codabar
- PDF-417
- Data Matrix
- Maxi Code
- RSS
- GS1 DataBar
- QR Code
- Aztec Code
General Information
- Product Type: Direct Thermal Printer
- Product Series: RW
- Brand Name: Zebra
- Manufacturer: Zebra Technologies Corporation
- Product Model: RW 220
- Product Name: RW 220 Thermal Receipt Printer
Physical Characteristics
- Height: 6.9"
- Width: 3"
- Depth: 2.9"
- Form Factor: Portable
Interfaces/Ports
- USB: Yes
- Serial Port: Yes
Other
- Platform Supported: PC
- Package Contents:
- RW 220 Thermal Receipt Printer
- Battery
- RW 220 Thermal Receipt Printer
- Battery
- Additional Information:
- Media sensors: Bar
- Six foot drop protection
- Auto detect firmware load
- Smart battery management
- Standard media (with IP54 rating)
- Advanced 32 bit architecture for high-speed processing
- Character Set: US/Canadian English/Latin 1 & 5 (Incl. Turkish)
- Regional Grouping Codes: (US/Canada/Australia/New Zealand/Mexico/Nicaragua)
- Construction: Impact-modified polycarbonate with fused oil-and-abrasion-resistant rubber overmold
Media Types & Handling
- Maximum Label Width: 2.37"
- Media Type:
- Receipt
- Tag
- Gap
- Continuous Form
- Continuous Receipt
- Synthetic Media
- UV Coated Media
- Media Thickness: 6.30 mil
- Media Sensor: Transmissive Media Sensor
- Label Core Size: 1.38"
- Maximum Roll Diameter: 2.25"
Fonts & Emulation
- Language Emulation:
- CPCL
- ZPL
- XML
- EPL
Battery Information
- Battery Included: Yes
- Battery Chemistry: Lithium Ion (Li-Ion)
Memory
- Standard Memory: 16 MB
- Flash Memory: 8 MB
Warranty
- Limited Warranty: 1 Year
