Additional Information
| Included Features | Magnetic Stripe Reader, Smart Card Reader |
|---|---|
| Interface Options | Bluetooth |
| Manufacturer | Zebra |
| Max Roll Outer Diameter | 2.25 |
| Model Name | RW 420 |
| Print Resolution | 203 dpi |
| Printer Type | Mobile |
| Printing Technology | Direct Thermal |

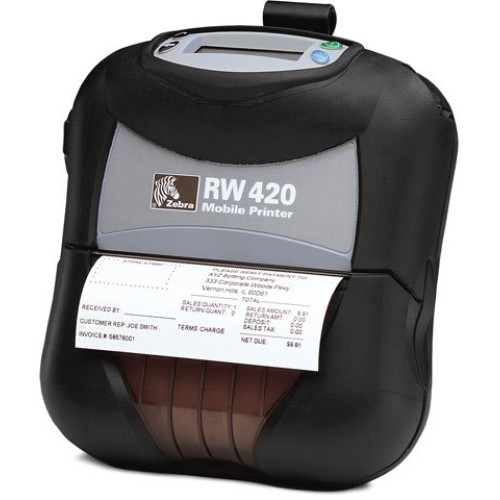

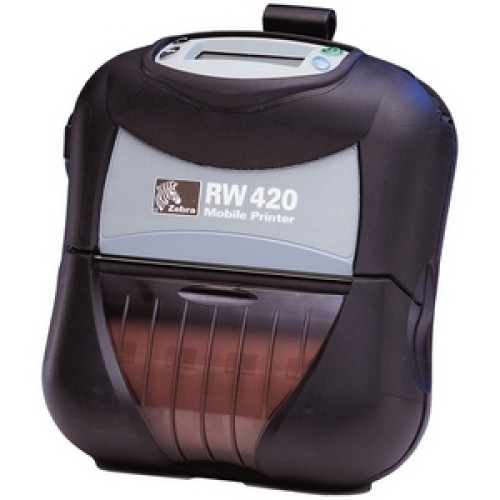

Zebra RW 420 Specs
Technical Information
- Interfaces: Bluetooth
- Data Buffer:
- 4MB
- 4 MB
- Print Speed: 3 ips
- Print Method:
- Direct Thermal
- Direct Thermal (DT)
- Printer Language:
- CPCL-native
- ZPL Emulation
- EPL Emulation
- Power Supply: External Included
- Mobile Printer: Yes
- Power Source: Battery
General Information
- Manufacturer:
- Product Name: RW 420 Mobile Receipt Printer
Physical Characteristics
- Dimensions:
- 6.9" (175mm) x 6.3" (160mm) x 3.1" (79mm)
- 6.9" (175mm) x 6.3" (160mm) x x 3.1" (79mm)
- Weight: 1.9 lb (0.86 kg)
Included Features
- Included Features:
- LCD Display
- Magnetic Card Reader
- Smart Card Reader
- Belt Clip
Agency Approvals
- Agency Approvals:
- FCC Part 15 Class B
- Canadian ICES-003
- VCCI
- NOM
- NYCE
- CE compliance (Class B)
- C-Tick
Other
- Package Contents:
- RW 420 Mobile Receipt Printer
- Lithium ion battery
- Additional Information:
- Flash Memory: 8 MB
- Maximum Print Width: 4.09"
- Country Code: North America (US/Canada/ Mexico/Australia/ Malaysia)
Environmental Conditions
- Temperature:
- -4°F (-20°C) to 131°F (55°C) Operating
- -2°F (-19°C) to 149°F (65°C) Storage
- Humidity:
- 10 to 90% Operating Non-condensing
- 10 to 90% Storage Non-condensing
Warranty
- Manufacturer Warranty: 1 Year(s)
