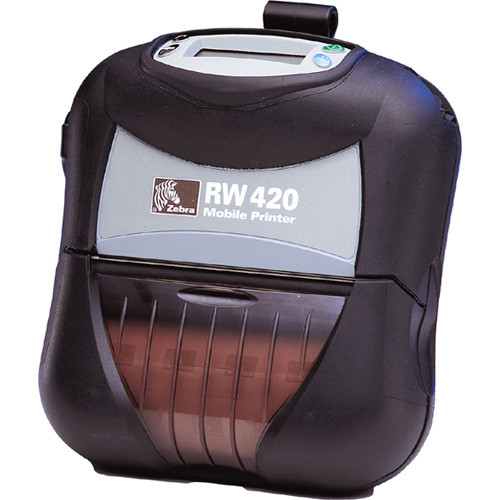

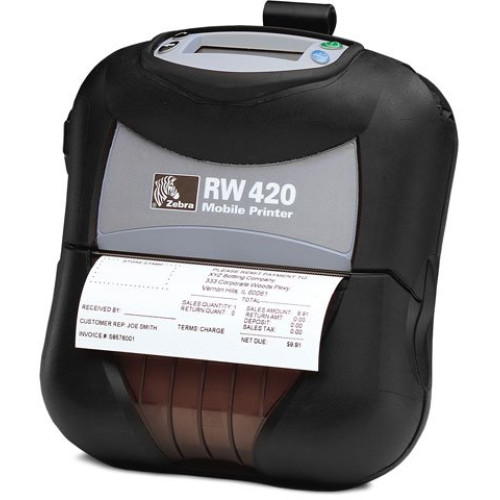

Zebra RW 420 Portable Barcode Printer
Part #: R4D-0U0A010N-00 | SKU: ZEB70684

As the only mobile printer to meet the stringent IP54 dust and water resistance rating, the RW 420 endures extreme temperatures and weather conditions. Bounce it in the truck, carry it in the rain, drop it to the pavement, and expect the same performance day in and day out. These resilient and lightweight printers can withstand the harsh demands of a number of Route Accounting and Field Service printing applications

Zebra RW 420 Portable Barcode Printer

Part Details: Direct Thermal mobile printer, 203 dpi, 4" print width, USB/RS-232 interfaces, Magnetic Stripe and Contact Smart Card reader. Includes belt clip. Charger and interface cables sold separately, see accessories.

Additional Information

Label Core Size 0.75 inches
Manufacturer Zebra
Max Label Width No
Max Roll Outer Diameter No
Model Name RW 420
Print Resolution No
Print Speed 3
Printer Type No
Printing Technology No

Technical Information

  • Maximum Mono Print Speed: 3 in/s
  • Maximum Print Resolution: 203 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 4.09"
  • Recommended Use: Receipt Print
  • Encoding Technology: Smart Card Encoder
  • Features: Magnetic Card Reader
  • Barcode Symbology Supported:
    • Code 39
    • Code 93
    • UCC/EAN 128
    • Code 128
    • UPC-A
    • UPC-E
    • EAN-8
    • EAN-13
    • EAN-14
    • UPC 2 or 5 Digit Extension
    • Plessey
    • FIM
    • POSTNET
    • Interleaved 2 of 5
    • MSI
    • Codabar
    • PDF-417
    • Data Matrix
    • Maxi Code
    • RSS
    • QR Code
    • GS1 DataBar

General Information

  • Product Type: Direct Thermal Printer
  • Product Series: RW
  • Brand Name: Zebra
  • Manufacturer: Zebra Technologies Corporation
  • Product Model: RW 420
  • Product Name: RW 420 Thermal Receipt Printer

Physical Characteristics

  • Height: 6.9"
  • Width: 6.3"
  • Depth: 3.1"
  • Form Factor: Portable

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes

Media Types & Handling

  • Maximum Label Width: 4.12"
  • Media Type:
    • Receipt
    • Tag
    • Continuous Form
    • Continuous Receipt
    • Gap
  • Media Thickness: 6.30 mil
  • Media Sensor: Transmissive Media Sensor
  • Label Core Size: 1.38"
  • Maximum Roll Diameter: 2.25"

Fonts & Emulation

  • Language Emulation:
    • CPCL
    • ZPL
    • EPL
    • XML

Memory

  • Standard Memory: 16 MB
  • Flash Memory: 8 MB

Warranty

  • Limited Warranty: 1 Year

Display & Graphics

  • Display Screen Type: LCD

Other

  • Platform Supported: PC

Battery Information

  • Battery Chemistry: Lithium Ion (Li-Ion)
Extended Details
