111479 Zebra

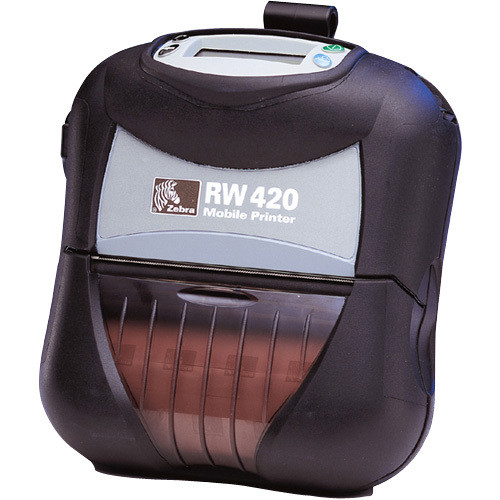

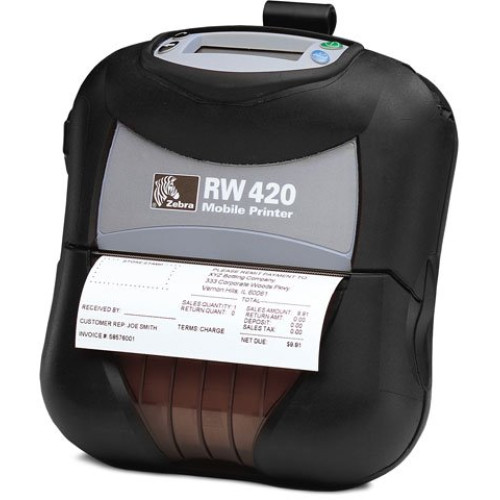

Zebra RW 420 Portable Bar code Printer Part # R4D-0UGA000N-00

As the only mobile printer to meet the stringent IP54 dust and water resistance rating, the RW 420 endures extreme temperatures and weather conditions. Bounce it in the truck, carry it in the rain, drop it to the pavement, and expect the same performance day in and day out. These resilient and lightweight printers can withstand the harsh demands of a number of Route Accounting and Field Service printing applications

R4D-0UGA000N-00 - Zebra RW 420 Portable Bar code Printer

Part Details: RW 420, Direct Thermal mobile printer, 203 dpi, 4" print width, USB/RS-232 interfaces, Wi-Fi (802.11b/g). Includes belt clip. Charger and interface cables sold separately, see accessories.
InStock

Additional Information

Brand Zebra
Label Core 0.75 inches
Manufacturer Zebra
Max Label Width 4.12
Max Roll Outer Diameter 2.25
Maximum Print Width 4.00
Print Method Direct Thermal
Print Resolution 203 dpi
Print Speed 3
Printer Mobility Mobile
Printer Type Mobile
Product Condition New
  • Simplifies transaction processing real-time
  • Ease-of-use
  • Weather and temperature resistant

Technical Information

  • Maximum Mono Print Speed: 2.99 in/s
  • Maximum Print Resolution: 203 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 4.09"
  • Recommended Use: Receipt Print
  • Barcode Symbology Supported:
    • PDF-417
    • Data Matrix
    • Maxi Code
    • RSS
    • GS1 DataBar
    • QR Code
    • Codabar
    • MSI
    • Interleaved 2 of 5
    • POSTNET
    • UPC 2 or 5 Digit Extension
    • EAN With 2 or 5 Digit Extension
    • EAN-8
    • EAN-13
    • EAN-14
    • UPC-A
    • UPC-E
    • Code 128
    • UCC/EAN 128
    • Code 39
    • Code 93

General Information

  • Product Type: Direct Thermal Printer
  • Product Series: RW
  • Brand Name: Zebra
  • Manufacturer: Zebra Technologies Corporation
  • Product Model: RW 420
  • Product Name: RW 420 Receipt Printer

Physical Characteristics

  • Height: 6.9"
  • Width: 6.3"
  • Depth: 3"
  • Form Factor: Portable
  • Weight (Approximate): 2 lb

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes

Media Types & Handling

  • Maximum Label Width: 4.13"
  • Media Type:
    • Receipt
    • Tag
    • Gap
    • Continuous Receipt
    • Linerless
    • Direct Thermal Paper
    • Synthetic Media
    • UV Coated Media
    • Label
  • Media Thickness: 6.30 mil
  • Media Sensor:
    • Reflective Media Sensor
    • Transmissive Media Sensor
  • Label Core Size: 1.37"
  • Maximum Roll Diameter: 2.24"

Other

  • Platform Supported: PC
  • Package Contents:
    • RW 420 Receipt Printer
    • Battery
    • Belt Clip
    • RW 420 Receipt Printer
    • Battery
    • Belt Clip
  • Certifications & Standards:
    • FCC Part 15 Class B
    • Canadian ICES-003
    • VCCI
    • NOM/NYCE
    • CE compliance (Class B)
    • C-Tick
    • CSA

Fonts & Emulation

  • Language Emulation:
    • CPCL
    • ZPL
    • EPL
    • XML

Battery Information

  • Battery Included: Yes
  • Battery Chemistry: Lithium Ion (Li-Ion)

Network & Communication

  • Wireless LAN: Yes
  • Wireless LAN Standard: IEEE 802.11b/g

Power Description

  • Input Voltage: 7.4 V DC
  • Power Source: Battery

Memory

  • Standard Memory: 16 MB
  • Flash Memory: 8 MB

Warranty

  • Limited Warranty: 1 Year

Display & Graphics

  • Display Screen Type: LCD
Extended Details
