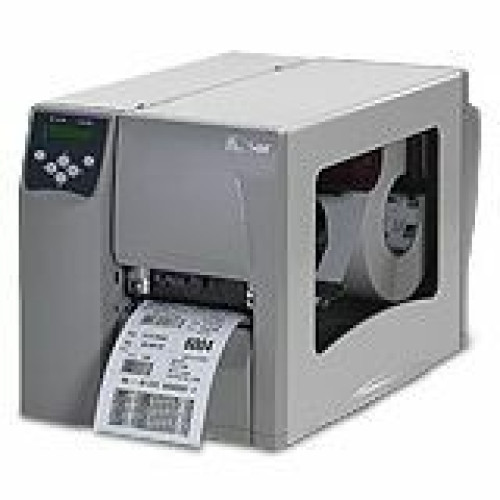

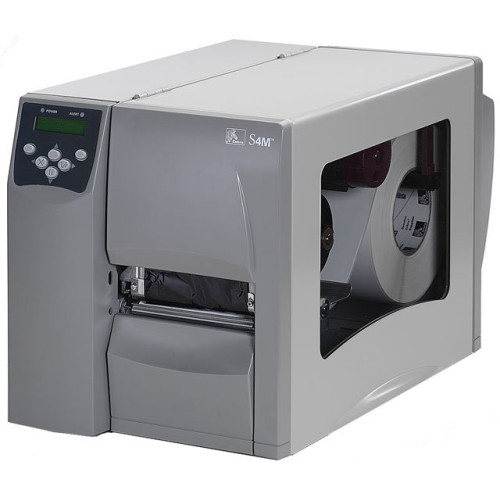

Zebra S4M Barcode Label Printer Zebra S4M Barcode Label Printer

Zebra S4M Barcode Label Printer
Part #: S4M00-2001-0200D | SKU: ZEB18042

The S4M printer from Zebra packages ease of use, metal construction, and a variety of connectivity options into a thermal printer that takes a full 8" roll of labels for fewer media changes. Designed for the budget-minded, the Zebra S4M has the features needed to support many applications at an affordable price. With easy controls and proven side-loading design, it's quick to learn, use, and load, so operators can focus on more productive tasks. The printer offers standard serial, parallel and USB connectivity, as well as optional internal 10/100 Ethernet and 802.11b wireless networking for simple integration and remote monitoring, plus it can be ordered with different printer programming languages. Compared to similar printers on the market, the S4M thermal printer is an outstanding value.

Zebra S4M Barcode Label Printer

Part Details: Direct Thermal only, 203 dpi, 4.09" print width, Serial, USB and Ethernet interfaces, 8MB RAM, 4MB flash and ZPL. Includes US power cord. Order cables separately, see accessories.
Need a different version of the Zebra S4M Barcode Label Printer? View all 35 configurations

Additional Information

Interface Options Ethernet, Serial (RS-232), USB
Manufacturer Zebra
Max Roll Outer Diameter 8
Model Name S4M
Print Resolution 203 dpi
Print Speed 6 ips
Printer Type Industrial
Printing Technology Direct Thermal
Ribbon Core Size 1 inch
Zebra S4M Specs Zebra S4M Specs (pdf)

Technical Information

  • Print Method:
    • Direct Thermal
    • Direct Thermal (DT)
  • Print Resolution: 203 dpi
  • Print Speed: 6 ips
  • Interfaces:
    • 1 x Fast Ethernet
    • 1 x Serial
    • 1 x USB
  • Maximum Print Width: 4.09"
  • Maximum Label Width: 4.50"
  • Maximum Label Length: 39"
  • Media Sensor:
    • Reflective
    • Transmissive
  • Printer Language: ZPL
  • Input Voltage Range: 90 to 265 V AC
  • RAM Memory: 8MB
  • Flash Memory: 4MB
  • Mobile Printer: No

General Information

Physical Characteristics

  • Dimensions:
    • 11.6" (294.64mm) x 10.7" (271.78mm) x 18.8" (478mm)
    • 11.6" (294.64mm) x 10.7" (271.78mm) x x 18.8" (478mm)
  • Weight: 27.2 lb (12.34 kg)
  • Shipping Weight: 33.5lb (15.2kg)

Included Features

  • Included Features: Internal ZebraNet 10/100 Print Server

Agency Approvals

  • Agency Approvals:
    • IEC 60950
    • EN 55022 Class B
    • EN55024
    • EN 61000-3-2
    • EN 61000-3-3
    • cULus
    • CE
    • FCC Class B
    • ICES-003
    • VCCI
    • C-Tick
    • NOM
    • IRAM
    • CCC
    • GOST-R

Environmental Conditions

  • Temperature:
    • 32°F (0°C) to 104°F (40°C) Operating
    • -40°F (-40°C) to 140°F (60°C) Storage
  • Humidity:
    • 20 to 85% Operating Non-condensing
    • 5 to 85% Storage Non-condensing

Other

  • Package Contents:
    • S4M Label Printer
    • Power Cord with US plug
    • Safety Guide
    • User's CD

Media Characteristics

  • Maximum Label Roll Diameter: 8"
  • Label Core Size: 3"
  • Ribbon Core Size: 1"
  • Ribbon Setup: Wound Out

Warranty

  • Manufacturer Warranty: 1 Year(s) Limited
Extended Details
