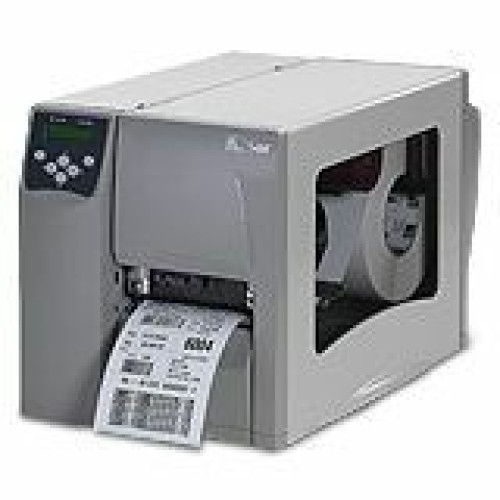

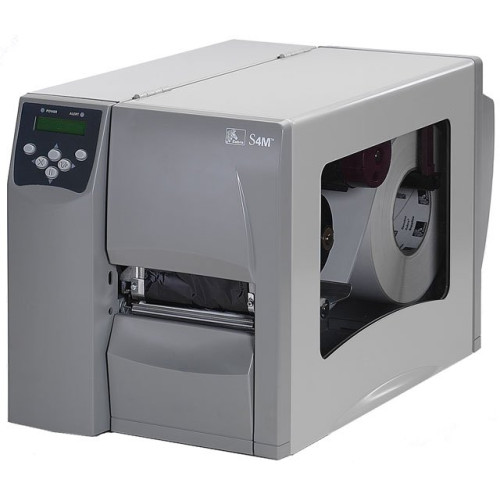

Zebra S4M Barcode Label Printer Zebra S4M Barcode Label Printer

Zebra S4M Barcode Label Printer
Part #: S4M00-2001-0300T | SKU: ZEB18045

The S4M printer from Zebra packages ease of use, metal construction, and a variety of connectivity options into a thermal printer that takes a full 8" roll of labels for fewer media changes. Designed for the budget-minded, the Zebra S4M has the features needed to support many applications at an affordable price. With easy controls and proven side-loading design, it's quick to learn, use, and load, so operators can focus on more productive tasks. The printer offers standard serial, parallel and USB connectivity, as well as optional internal 10/100 Ethernet and 802.11b wireless networking for simple integration and remote monitoring, plus it can be ordered with different printer programming languages. Compared to similar printers on the market, the S4M thermal printer is an outstanding value.

Zebra S4M Barcode Label Printer

Part Details: Thermal transfer & Direct thermal, 203 dpi, 4.09" print width, Serial, USB and 802.11b wireless interfaces, 8MB RAM, 4MB flash and ZPL. Includes US power cord. Order cables separately, see accessories. Wireless functionality requires wireless network compact flash card (Part# LA-4137-1020-WW), not included. See accessories.
Need a different version of the Zebra S4M Barcode Label Printer? View all 35 configurations

Additional Information

Interface Options Serial (RS-232), USB, Wi-Fi
Manufacturer Zebra
Max Roll Outer Diameter 8
Model Name S4M
Print Resolution 203 dpi
Print Speed 6 ips
Printer Type Industrial
Printing Technology Thermal Transfer
Zebra S4M Specs Zebra S4M Specs (pdf)

Technical Information

  • Print Method:
    • Direct Thermal
    • Thermal Transfer (TT)
    • Direct Thermal (DT)
  • Print Resolution: 203 dpi
  • Print Speed: 6 ips
  • Interfaces:
    • 1 x Serial
    • 1 x USB
  • Maximum Print Width: 4.09"
  • Maximum Label Width: 4.5"
  • Maximum Label Length: 39"
  • Media Sensor:
    • Reflective
    • Transmissive
  • Printer Language: ZPL
  • Input Voltage Range: 90 to 265 V AC
  • RAM Memory: 8MB
  • Flash Memory: 4MB
  • Mobile Printer: No

General Information

  • Manufacturer: Zebra
  • Product Name: S4M Label Printer

Physical Characteristics

  • Dimensions: 11.6" (294.64mm) x 10.7" (271.78mm) x 18.8" (478mm)
  • Weight: 27.2 lb (12.34 kg)
  • Shipping Weight: 33.5lb (15.2kg)

Included Features

  • Included Features:
    • Tear Bar
    • Internal ZebraNet Wireless PrintServer

Agency Approvals

  • Agency Approvals:
    • IEC 60950
    • EN 55022 Class B
    • EN55024
    • EN 61000-3-2
    • EN 61000-3-3
    • cULus
    • CE
    • FCC-B
    • ICES-003
    • VCCI
    • C-Tick
    • NOM
    • IRAM
    • CCC
    • GOST-R

Environmental Conditions

  • Temperature:
    • 32°F (0°C) to 104°F (40°C) Operating - Direct Thermal
    • 40°F (4°C) to 104°F (40°C) Operating - Thermal Transfer
    • -40°F (-40°C) to 140°F (60°C) Storage
  • Humidity:
    • 20 to 85% Operating Non-condensing
    • 5 to 85% Storage Non-condensing

Other

  • Package Contents:
    • S4M Label Printer
    • Safety Guide
    • User's CD
    • Power Cord with US plug

Media Characteristics

  • Maximum Label Roll Diameter: 8"
  • Label Core Size: 3"
  • Ribbon Core Size: 1"
  • Ribbon Setup: Wound Out

Warranty

  • Manufacturer Warranty: 1 Year(s) Limited
Extended Details
