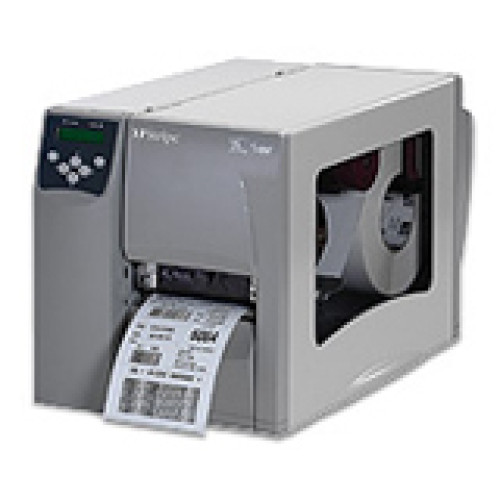

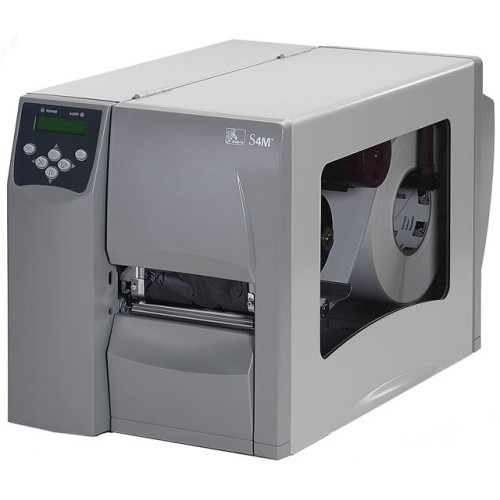

Zebra S4M Barcode Label Printer Zebra S4M Barcode Label Printer

Zebra S4M Barcode Label Printer
Part #: S4M00-2001-1200T | SKU: ZEB18047

The S4M printer from Zebra packages ease of use, metal construction, and a variety of connectivity options into a thermal printer that takes a full 8" roll of labels for fewer media changes. Designed for the budget-minded, the Zebra S4M has the features needed to support many applications at an affordable price. With easy controls and proven side-loading design, it's quick to learn, use, and load, so operators can focus on more productive tasks. The printer offers standard serial, parallel and USB connectivity, as well as optional internal 10/100 Ethernet and 802.11b wireless networking for simple integration and remote monitoring, plus it can be ordered with different printer programming languages. Compared to similar printers on the market, the S4M thermal printer is an outstanding value.

Zebra S4M Barcode Label Printer

Part Details: Thermal transfer & Direct thermal, 203 dpi, 4.09" print width, Serial, USB and Ethernet interfaces, 8MB RAM, 4MB flash, ZPL and peeler. Includes US power cord. Order cables separately, see accessories.
Need a different version of the Zebra S4M Barcode Label Printer? View all 35 configurations

Additional Information

Interface Options Ethernet, Serial (RS-232), USB
Manufacturer Zebra
Max Roll Outer Diameter 8
Model Name S4M
Print Resolution 203 dpi
Print Speed 6 ips
Printer Type Industrial
Printing Technology Thermal Transfer
Ribbon Core Size 1 inch
Zebra S4M Specs Zebra S4M Specs (pdf)

Technical Information

  • Print Method:
    • Direct Thermal
    • Thermal Transfer (TT)
    • Direct Thermal (DT)
  • Print Resolution: 203 dpi
  • Print Speed: 6 ips
  • Interfaces:
    • 1 x Fast Ethernet
    • 1 x Serial
    • 1 x USB
  • Maximum Print Width: 4.09"
  • Maximum Label Width: 4.50"
  • Maximum Label Length: 39"
  • Media Sensor:
    • Reflective
    • Transmissive
  • Printer Language: ZPL
  • Input Voltage Range: 90 to 265 V AC
  • RAM Memory: 8MB
  • Flash Memory: 4MB
  • Mobile Printer: No

General Information

Physical Characteristics

  • Dimensions:
    • 11.6" (294.64mm) x 10.7" (271.78mm) x 18.8" (478mm)
    • 11.6" (294.64mm) x 10.7" (271.78mm) x x 18.8" (478mm)
  • Weight: 27.2 lb (12.34 kg)
  • Shipping Weight: 33.5lb (15.2kg)

Included Features

  • Included Features:
    • Peel
    • Internal ZebraNet 10/100 Print Server

Agency Approvals

  • Agency Approvals:
    • IEC 60950
    • EN 55022 Class B
    • EN55024
    • EN 61000-3-2
    • EN 61000-3-3
    • cULus
    • CE
    • FCC Class B
    • ICES-003
    • VCCI
    • C-Tick
    • NOM
    • IRAM
    • CCC
    • GOST-R

Environmental Conditions

  • Temperature:
    • 40°F (4°C) to 104°F (40°C) Operating - Thermal Transfer
    • 32°F (0°C) to 104°F (40°C) Operating - Direct Thermal
    • -40°F (-40°C) to 140°F (60°C) Storage
  • Humidity:
    • 20 to 85% Operating Non-condensing
    • 5 to 85% Storage Non-condensing

Other

  • Package Contents:
    • S4M Label Printer
    • Power Cord with US plug
    • Safety Guide
    • User's CD

Media Characteristics

  • Maximum Label Roll Diameter: 8"
  • Label Core Size: 3"
  • Ribbon Core Size: 1"
  • Ribbon Setup: Wound Out

Warranty

  • Manufacturer Warranty: 1 Year(s) Limited
Extended Details

Recommended Accessories for Model: Zebra S4M Barcode Label Printer

  • Cables To Go 13400 Accessory
    Part #: 13400 | SKU: CAB143521

    10ft USB cable (USB 2.0, A to B). Replaces (Part# USB-5000-03M).
    Price: $8.69
    In Stock

  • Cables To Go 13172 Accessory
    Part #: 13172 | SKU: CAB143509

    6ft USB cable (USB 2.0, A to B). Replaces (Part# USB-5000-02M).
    MSRP: $6.99 Price: $6.67
    In Stock

  • Cables To Go 3019 Accessory
    Part #: 3019 | SKU: CAB143489

    Serial printer cable, 9-pin to 25-pin, 6ft. Replaces (Part# PCM-1970-06).
    Price: $10.43
    In Stock

  • Zebra 105950-079 Power Device
    Part #: 105950-079 | SKU: ZEB181070

    Power Device - Zebra - Kit - 3-Prong Power Cord - 125V Japan C13 (Quantity Of 5)
    Price: $111.90

  • Zebra 105950-087 Accessory
    Part #: 105950-087 | SKU: ZEB181072

    CD-ROM, Service, G-Series. This is a Zebra printer repair part.
    Price: $319.94
View All Options

Recommended Labels for Model: Zebra S4M Barcode Label Printer

  • Zebra Z-Perform 2000D Barcode Label
    Part #: 10000298 | SKU: ZEB16816

    Labels - Zebra Z-Perform 2000D - Label - Paper - 2x1" (50.8x25.4mm) - Direct Thermal - Z-Perform 2000D - Value Coated - All-Temp Adhesive - 3" (76.2mm) core - 5500/roll - 8/box - Plain
    MSRP: $236.08 Price: $212.51
    In Stock

  • Zebra Z-Select 4000T Barcode Label
    Part #: 72287 | SKU: ZEB9908

    Labels - Zebra Z-Select 4000T - Label - Paper - 3.25in x 486ft (82.6mm x 148.1m) - Thermal Transfer - Z-Select 4000T - High Performance Coated - Permanent Adhesive - 3" (76.2mm) core - 6/box - Plain
    MSRP: $237.06 Price: $213.40
    In Stock

  • Zebra Z-Select 4000T Barcode Label
    Part #: 98962 | SKU: ZEB16845

    Labels - Zebra Z-Select 4000T - Label - Paper - 4in x 466ft (101.6mm x 142m) - Thermal Transfer - Z-Select 4000T - High Performance Coated - Permanent Adhesive - 3" (76.2mm) core - 466/roll - 4/box - Plain
    MSRP: $162.36 Price: $145.34
    In Stock

  • Zebra Z-Select 4000T Barcode Label
    Part #: 72289 | SKU: ZEB9910

    Labels - Zebra Z-Select 4000T - Label - Paper - 4x2" (101.6x50.8mm) - Thermal Transfer - Z-Select 4000T - High Performance Coated - Permanent Adhesive - 3" (76.2mm) core - 2740/roll - 4/box - Plain
    MSRP: $169.68 Price: $151.91
    In Stock

  • Zebra Z-Select 4000T Barcode Label
    Part #: 94681 | SKU: ZEB16947

    Labels - Zebra Z-Select 4000T - Label - Paper - 4x2.5" (101.6x63.5mm) - Thermal Transfer - Z-Select 4000T - High Performance Coated - Permanent Adhesive - 3" (76.2mm) core - 2130/roll - 4/box
    MSRP: $164.44 Price: $148.01
    In Stock
View All Options

Recommended Printheads for Model: Zebra S4M Barcode Label Printer

  • Zebra G41400M Printhead
    Part #: G41400M | SKU: ZEB26673

    Thermal Printhead - Zebra - Kit Printhead 203 dpi S4M
    Price: $724.44
    In Stock

  • Zebra G41401M Printhead
    Part #: G41401M | SKU: ZEB30723

    Thermal Printhead - Zebra - Kit Printhead 300 dpi S4M

  • Zebra G20111 Printhead
    Part #: G20111 | SKU: ZEB43252

    Replacement Printhead Kit, 203 dpi, Compatible Printer Model S4M

  • Zebra G20067-106M Printhead
    Part #: G20067-106M | SKU: ZEB181618

    Replacement Printhead Kit, 300 dpi, Compatible Printer Model S4M. This is a Zebra printer repair part.

  • Zebra S4M Printhead
    Part #: 41400M | SKU: ZEB66242

    Replacement printhead, 203 dpi.
View All Options

Recommended Ribbons for Model: Zebra S4M Barcode Label Printer

  • Zebra 5586 Wax/Resin Ribbon
    Part #: 05586BK08345 | SKU: ZEB48159

    Thermal Transfer Ribbon - Zebra 5586 Wax/Resin - Wax/Resin Ribbon - 83mmx450m (3.27"x1476') - 5586 - Premium - 25mm (1") core - 6/box
    MSRP: $236.04 Price: $212.40
    In Stock

  • Zebra 5586 Wax/Resin Ribbon
    Part #: 05586BK06045 | SKU: ZEB48158

    Thermal Transfer Ribbon - Zebra 5586 Wax/Resin - Wax/Resin Ribbon - 60mmx450m (2.36"x1476') - 5586 - Premium - 25mm (1") core - 6/box
    Price: $136.18
    In Stock

  • Zebra 5555 Wax/Resin Ribbon
    Part #: 05555BK06045 | SKU: ZEB48148

    Thermal Transfer Ribbon - Zebra 5555 Wax/Resin - Wax/Resin Ribbon - 60mmx450m (2.36"x1476') - 5555 - Standard - 25mm (1") core - 6/box
    MSRP: $115.62 Price: $103.50
    In Stock

  • Zebra 5100 Resin Ribbon
    Part #: 05100BK04045 | SKU: ZEB48105

    Thermal Transfer Ribbon - Zebra 5100 Resin - Resin Ribbon - 40mmx450m (1.57"x1476') - 5100 - Premium - 25mm (1") core - 6/box
    MSRP: $348.42 Price: $313.56
    In Stock

  • Zebra 5100 Resin Ribbon
    Part #: 05100BK08945 | SKU: ZEB48110

    Thermal Transfer Ribbon - Zebra 5100 Resin - Resin Ribbon - 89mmx450m (3.5"x1476') - 5100 - Premium - 25mm (1") core - 6/box
    MSRP: $707.88 Price: $633.72
    In Stock
View All Options

Recommended Warranties for Model: Zebra S4M Barcode Label Printer

  • Zebra S4M Service Contract
    Part #: Z1B1-S4X0-100 | SKU: ZEB374220

    Essential, Purchased after 30 days of Device, Next Business Day Onsite, S4M, 1 Years, Non-Comprehensive
    MSRP: $425.88 Price: $350.29
    In Stock

  • Zebra S4M Service Contract
    Part #: Z1B1-S4X0-1C0 | SKU: ZEB374221

    Essential, Purchased after 30 days of Device, Next Business Day Onsite, S4M, 1 Years, Comprehensive
    MSRP: $644.28 Price: $529.91
    In Stock

  • Zebra S4M Service Contract
    Part #: Z1B4-S4X0-100 | SKU: ZEB374228

    Select, Purchased after 30 days of Device, Same Business Day Onsite, S4M, 1 Years, Non-Comprehensive
    MSRP: $677.04 Price: $556.84
    In Stock

  • Zebra S4M Service Contract
    Part #: Z1B4-S4X0-1C0 | SKU: ZEB374229

    Select, Purchased after 30 days of Device, Same Business Day Onsite, S4M, 1 Years, Comprehensive
    MSRP: $895.44 Price: $736.48
    In Stock

  • Zebra Service Contracts Service Contract
    Part #: ZA2-S4X0-3C0 | SKU: ZEB184448

    S4M 3YEAR ON-SITE STANDARD COMPR TWO DAY/NEW PRINTERS ONLY
View All Options
