8854 Zebra

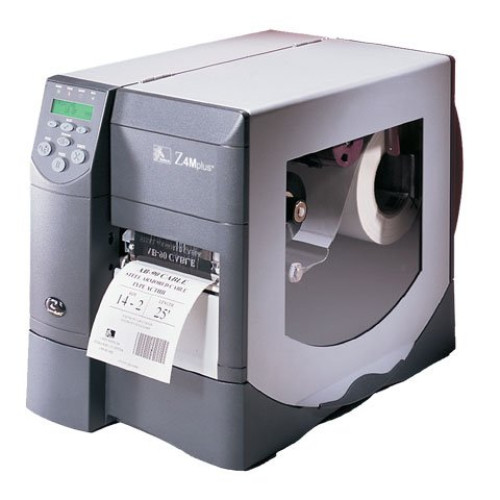

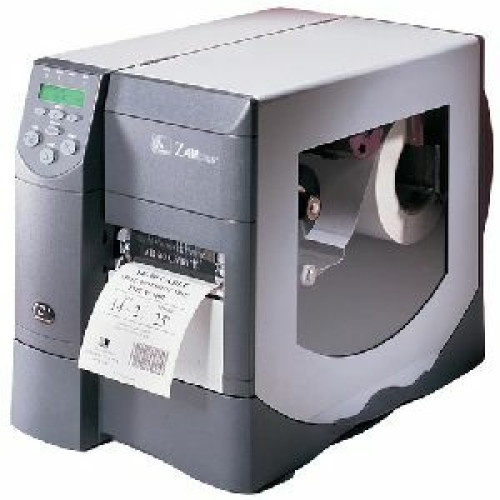

Z4M00-2001-1000 - Zebra Z4M Plus Bar code Printer

Z4M Plus, Thermal transfer, 203 dpi, 10 ips, 4" print width, parallel & serial interfaces, 8MB RAM & 2MB flash. Includes ZebraLink, US power cord, & cutter. Order cables separately. See accessories.
InStock
Free Shipping

Description

The Z4M Plus Thermal Printer has a personality all its own-along with a rugged look and feel characteristic of a Zebra workhorse. Among Zebra's fastest printers at 10 inches per second this state-of-the-art metal printer with back-lit LCD control panels works hard but is easy on your budget. The Z4M Plus is the price performance leader in its class - combining state-of-the-art technology and ruggedness in one.
  • 203 dpi (8 dots/mm)
  • 4 inch Wide Print width
  • Auto-Calibration
  • Color-Coded Operator Cues
  • Core Diameter: 3 inch (76 mm)
  • Label Ribbon Roll Diameter: 8 inch (203 mm)
  • Maximum Label Width: 4.5 inch (114 mm)
  • Metal Media Cover with enlarged clear window for easy viewing of media and ribbon levels
  • Minimum Label Gap: 2 mm
  • Print width: 4.09 inch (104 mm) maximum
  • Ribbon Core Size: 1.0 inch (25.4 mm) I.D.
  • Ribbon Roll Diameter: 3.2 inch (81.3 mm) maximum
  • Ribbon Width: 2.00 inch (51 mm) to 4.33 inch (110 mm)
  • Rugged Metal Design: Die-Cast Aluminum Frame, Base and Printhead Mechanism
  • Selectable Print speeds at 1 inch (25 mm) increments from 2 inch (50 mm) to 10 inch (254 mm) per second (203 dpi)
  • Standard ZebraLink Real Time Connectivity and Control System
  • Thin Film Printhead with Element Energy Equalizer (E3)
  • Total Thickness: .0023 inch (.058 mm) to .010 inch (0.25 mm)
  • Transmissive Media Sensor and Reflective Sensors

Additional Information

Print Speed 10
Printer Type Industrial
Print Method Thermal Transfer
Print Resolution 203 dpi
Included Features Cutter
Interface Options Parallel
Maximum Print Width 4.09
Filter Filter
Manufacturer Zebra

Technical Information

  • Maximum Mono Print Speed: 10 in/s
  • Maximum Print Resolution: 203 dpi
  • Maximum Print Width: 4.09"
  • Recommended Use: Label Print
  • Features: Cutter
  • Barcode Symbology Supported:
    • Codabar
    • Code 11
    • Code 39
    • Code 93
    • EAN-8
    • EAN-13
    • Interleaved 2 of 5
    • Industrial 2 of 5
    • ISBT-128
    • LOGMARS
    • MSI
    • Planet Code
    • Plessey
    • POSTNET
    • RSS
    • Standard 2 of 5
    • UPC 2 or 5 Digit Extension
    • EAN With 2 or 5 Digit Extension
    • UPC-A
    • UPC-E
    • Code 128-A
    • Code 128-B
    • Code 128-C
    • UCC Case Codes
    • Codablock
    • Code 49
    • Data Matrix
    • Maxi Code
    • PDF-417
    • QR Code
    • Micro PDF-417
    • Aztec Code

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Product Series: Z Series
  • Brand Name: Zebra
  • Manufacturer: Zebra Technologies Corporation
  • Product Model: Z4Mplus
  • Product Name: Z4Mplus Thermal Label Printer

Physical Characteristics

  • Height: 13.3"
  • Width: 10.9"
  • Depth: 18.7"

Interfaces/Ports

  • Serial Port: Yes
  • Parallel Port: Yes

Other

  • Platform Supported: PC
  • Package Contents:
    • Z4Mplus Label Printer
    • Safety Guide
    • User's CD
    • US Power Cord
    • Z4Mplus Label Printer
    • Safety Guide
    • User's CD
    • US Power Cord
  • Certifications & Standards:
    • IEC60950
    • EN55024 Class B
    • EN55024
    • EN61000-3-2
    • EN61000-3-3
    • Product Markings:
    • cULus
    • CE Marking
    • FCC-B
    • ICES-003
    • VCCI
    • C-Tick
    • NOM
    • IRAM
    • CCC
    • GOST-R
    • BSMI (pending)
  • Additional Information:
    • Auto-calibration
    • Real Time Clock
    • Color-coded operator cues
    • Auto-detectable power supply
    • External Socket: Standard version
    • Zebra's E3 Printhead Energy Control
    • Fonts and Graphics:
    • Sets: IBM Code Page 850 International character set
    • Supports user-defined fonts and graphics, including custom logos
    • Operating temperature:
    • Thermal transfer: 40° F (5° C) to 104° F (40° C)
    • Direct thermal: 32° F (0° C) to 104° F (40° C)

Media Types & Handling

  • Maximum Label Width: 4.50"
  • Maximum Label Length: 39"
  • Media Type:
    • Continuous Form
    • Fanfold
    • Die-cut Label
    • Notched
    • Tag Stock
    • Perforated Label
    • Black Mark
  • Media Thickness: 10 mil
  • Media Sensor:
    • Transmissive Media Sensor
    • Reflective Media Sensor
  • Label Core Size: 3"
  • Ribbon Core Size: 1"
  • Maximum Roll Diameter: 8"

Memory

  • Standard Memory: 8 MB
  • Memory Technology: DRAM
  • Flash Memory: 2 MB

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC

Display & Graphics

  • Display Screen Type: LCD

Cutter

  • Cutting Method: Automatic

Warranty

  • Limited Warranty: 1 Year

Fonts & Emulation

  • Language Emulation: ZPL
