16635 Zebra

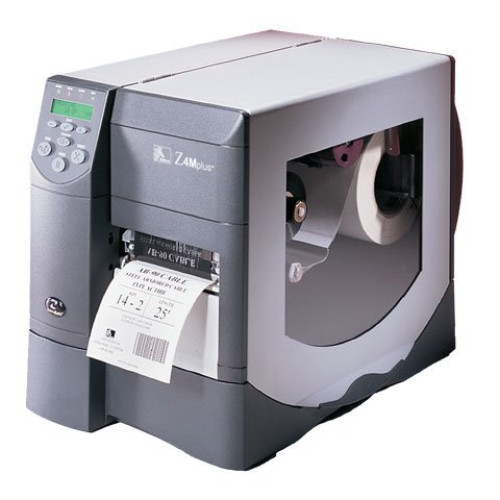

Z4M00-2009-0000 - Zebra Z4M Plus Bar code Printer

Z4M Plus, Thermal transfer, 203 dpi, 10 ips, 4" print width, serial & parallel interfaces, 8MB RAM & 2MB flash. Includes ZebraLink, power cord with Chinese Additions & memory socket board. Order cables separately. See accessories.
Free Shipping


The Z4M Plus Thermal Printer has a personality all its own-along with a rugged look and feel characteristic of a Zebra workhorse. Among Zebra's fastest printers at 10 inches per second this state-of-the-art metal printer with back-lit LCD control panels works hard but is easy on your budget. The Z4M Plus is the price performance leader in its class - combining state-of-the-art technology and ruggedness in one.
  • 203 dpi (8 dots/mm)
  • 4 inch Wide Print width
  • Auto-Calibration
  • Color-Coded Operator Cues
  • Core Diameter: 3 inch (76 mm)
  • Label Ribbon Roll Diameter: 8 inch (203 mm)
  • Maximum Label Width: 4.5 inch (114 mm)
  • Metal Media Cover with enlarged clear window for easy viewing of media and ribbon levels
  • Minimum Label Gap: 2 mm
  • Print width: 4.09 inch (104 mm) maximum
  • Ribbon Core Size: 1.0 inch (25.4 mm) I.D.
  • Ribbon Roll Diameter: 3.2 inch (81.3 mm) maximum
  • Ribbon Width: 2.00 inch (51 mm) to 4.33 inch (110 mm)
  • Rugged Metal Design: Die-Cast Aluminum Frame, Base and Printhead Mechanism
  • Selectable Print speeds at 1 inch (25 mm) increments from 2 inch (50 mm) to 10 inch (254 mm) per second (203 dpi)
  • Standard ZebraLink Real Time Connectivity and Control System
  • Thin Film Printhead with Element Energy Equalizer (E3)
  • Total Thickness: .0023 inch (.058 mm) to .010 inch (0.25 mm)
  • Transmissive Media Sensor and Reflective Sensors

Additional Information

Print Speed 10
Printer Type Industrial
Print Method Thermal Transfer
Print Resolution 203 dpi
Interface Options Serial
Maximum Print Width 4.09
Filter Filter
Manufacturer Zebra
Barcode Giant
