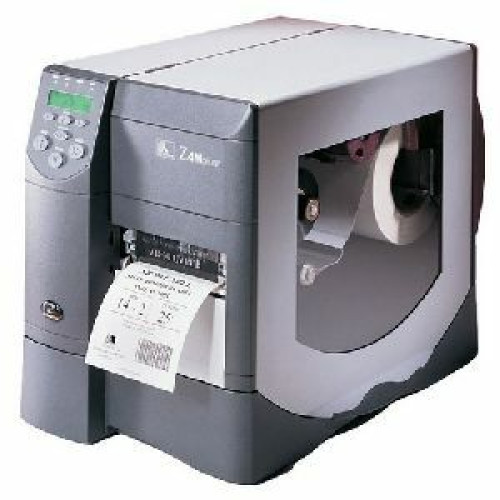

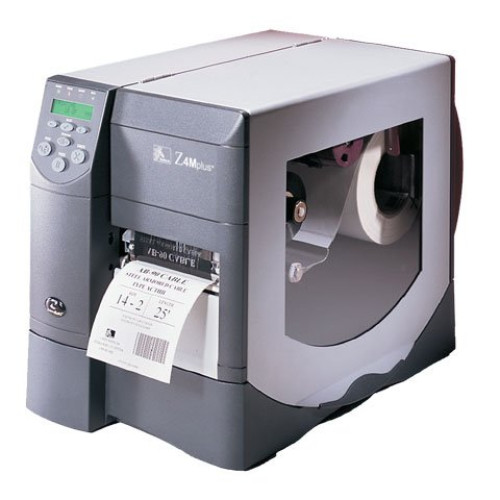

Zebra Z4M Plus Barcode Label Printer Zebra Z4M Plus Barcode Label Printer

Zebra Z4M Plus Barcode Label Printer
Part #: Z4M00-3001-0000 | SKU: ZEB8859

The Z4M Plus Thermal Printer has a personality all its own-along with a rugged look and feel characteristic of a Zebra workhorse. Among Zebra's fastest printers at 10 inches per second this state-of-the-art metal printer with back-lit LCD control panels works hard but is easy on your budget. The Z4M Plus is the price performance leader in its class - combining state-of-the-art technology and ruggedness in one.

Zebra Z4M Plus Barcode Label Printer

Part Details: Thermal transfer & direct thermal, 300 dpi, 10 ips, 4" print width, parallel & serial interfaces, 8MB RAM & 2MB flash. Includes ZebraLink & US power cord. Order cables separately. See accessories.
Need a different version of the Zebra Z4M Plus Barcode Label Printer? View all 33 configurations

Additional Information

Interface Options Parallel, Serial (RS-232)
Manufacturer Zebra
Max Roll Outer Diameter 8
Model Name Z4M Plus
Print Resolution 300 dpi, 305 dpi
Print Speed 6 ips
Printer Type Industrial
Printing Technology Thermal Transfer
Ribbon Core Size 1 inch
Zebra Z4M Plus Specs Zebra Z4M Plus Specs (pdf)

Technical Information

  • Print Method:
    • Direct Thermal
    • Thermal Transfer (TT)
    • Direct Thermal (DT)
  • Print Resolution: 300 dpi
  • Print Speed: 12 ips
  • Interfaces:
    • 1 x Serial
    • 1 x Parallel
  • Maximum Print Width: 4.09"
  • Maximum Label Width: 4.5"
  • Maximum Label Length: 39"
  • Media Sensor:
    • Transmissive
    • Reflective
  • Input Voltage Range: 90 to 265 V AC
  • RAM Memory: 8MB
  • Flash Memory: 2MB
  • Printer Language: ZPL
  • Mobile Printer: No

General Information

Physical Characteristics

  • Dimensions: 13.32" (338.33mm) x 10.93" (277.62mm) x 18.69" (474.73mm)
  • Weight: 32.4 lb (14.7 kg) - without packaging

Included Features

  • Included Features: ZPL

Agency Approvals

  • Agency Approvals:
    • IEC60950
    • EN55024 Class B
    • EN55024
    • EN61000-3-2
    • EN61000-3-3
    • cULus
    • CE Marking
    • FCC-B
    • ICES-003
    • VCCI
    • C-Tick
    • NOM
    • IRAM
    • CCC
    • GOST-R
    • BSMI (pending)

Environmental Conditions

  • Temperature:
    • 32°F (0°C) to 104°F (40°C) Operating - Direct Thermal
    • 41°F (5°C) to 104°F (40°C) Operating - Thermal Transfer
    • -40°F (-40°C) to 140°F (60°C) Storage
  • Humidity:
    • 20 to 85% Operating Non-condensing
    • 5 to 85% Storage Non-condensing

Other

  • Package Contents:
    • Z4Mplus Label Printer
    • Safety Guide
    • User's CD
    • Power Cord with US plug

Media Characteristics

  • Maximum Label Roll Diameter: 8"
  • Label Core Size: 3"
  • Ribbon Core Size: 1"
  • Ribbon Setup: Wound Out

Warranty

  • Manufacturer Warranty:
    • 1 Year(s)
    • 1 Year(s) Limited
Extended Details
