8863 Zebra

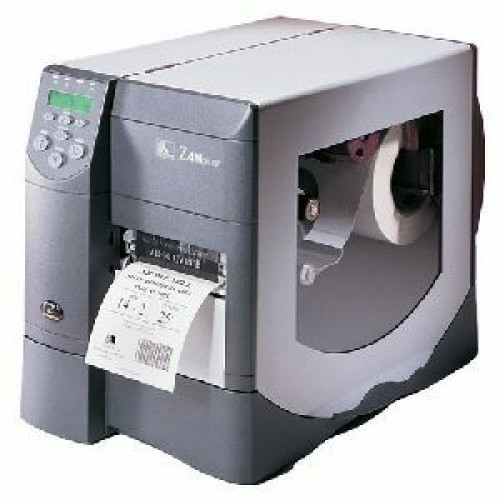

Z4M00-3001-5000 - Zebra Z4M Plus Bar code Printer

Z4M Plus, Thermal transfer printing, 300 dpi, 4" print width, Parallel and Serial Interfaces, Rewinder and Peeler, ZPL, 8MB DRAM, 2MB Flash. Includes US power cord. Order cables separately.
InStock
Free Shipping

Description

The Z4M Plus Thermal Printer has a personality all its own-along with a rugged look and feel characteristic of a Zebra workhorse. Among Zebra's fastest printers at 10 inches per second this state-of-the-art metal printer with back-lit LCD control panels works hard but is easy on your budget. The Z4M Plus is the price performance leader in its class - combining state-of-the-art technology and ruggedness in one.
  • 203 dpi (8 dots/mm)
  • 4 inch Wide Print width
  • Auto-Calibration
  • Color-Coded Operator Cues
  • Core Diameter: 3 inch (76 mm)
  • Label Ribbon Roll Diameter: 8 inch (203 mm)
  • Maximum Label Width: 4.5 inch (114 mm)
  • Metal Media Cover with enlarged clear window for easy viewing of media and ribbon levels
  • Minimum Label Gap: 2 mm
  • Print width: 4.09 inch (104 mm) maximum
  • Ribbon Core Size: 1.0 inch (25.4 mm) I.D.
  • Ribbon Roll Diameter: 3.2 inch (81.3 mm) maximum
  • Ribbon Width: 2.00 inch (51 mm) to 4.33 inch (110 mm)
  • Rugged Metal Design: Die-Cast Aluminum Frame, Base and Printhead Mechanism
  • Selectable Print speeds at 1 inch (25 mm) increments from 2 inch (50 mm) to 10 inch (254 mm) per second (203 dpi)
  • Standard ZebraLink Real Time Connectivity and Control System
  • Thin Film Printhead with Element Energy Equalizer (E3)
  • Total Thickness: .0023 inch (.058 mm) to .010 inch (0.25 mm)
  • Transmissive Media Sensor and Reflective Sensors

Additional Information

Print Speed 6
Printer Type Industrial
Print Method Thermal Transfer
Print Resolution 305 dpi
Interface Options Parallel
Maximum Print Width 4.09
Filter Filter
Manufacturer Zebra

Technical Information

  • Maximum Mono Print Speed: 6 in/s
  • Peel Facility: Yes
  • Maximum Print Resolution: 300 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 4.09"
  • Recommended Use: Label Print
  • Features: Peel Facility
  • Barcode Symbology Supported:
    • Codabar
    • Code 11
    • Code 39
    • Code 93
    • EAN-8
    • EAN-13
    • Interleaved 2 of 5
    • Industrial 2 of 5
    • ISBT-128
    • LOGMARS
    • MSI
    • Planet Code
    • Plessey
    • POSTNET
    • RSS
    • Standard 2 of 5
    • UPC 2 or 5 Digit Extension
    • EAN With 2 or 5 Digit Extension
    • UPC-A
    • UPC-E
    • Code 128-A
    • Code 128-B
    • Code 128-C
    • UCC
    • Codablock
    • Code 49
    • Data Matrix
    • Maxi Code
    • PDF-417
    • QR Code
    • Micro PDF-417

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Product Series: Z Series
  • Brand Name: Zebra
  • Manufacturer: Zebra Technologies Corporation
  • Product Model: Z4Mplus
  • Product Name: Z4Mplus Thermal Label Printer

Physical Characteristics

  • Height: 13.3"
  • Width: 10.9"
  • Depth: 18.7"

Other

  • Platform Supported: PC
  • Package Contents:
    • Zebra Z4Mplus Label Printer
    • Safety Guide
    • User's CD
    • Power Cord
    • Zebra Z4Mplus Label Printer
    • Safety Guide
    • User's CD
    • Power Cord
  • Certifications & Standards:
    • IEC60950
    • EN55024 Class B
    • EN55024
    • EN61000-3-2
    • EN61000-3-3
    • Product Markings:
    • cULus
    • CE Marking
    • FCC-B
    • ICES-003
    • VCCI
    • C-Tick
    • NOM
    • IRAM
    • CCC
    • GOST-R
    • BSMI (pending)
  • Additional Information:
    • Print length: 73" (1,851 mm)
    • 32-bit processor
    • Media thickness: 0.0023" (.058 mm) to 0.010" (.25 mm)
    • Metal media cover with large clear window
    • Auto-calibration
    • Color-coded operator cues
    • Zebra's E3 Printhead Energy Control
    • Real Time Clock
    • Media sensors:
    • Transmissive
    • Reflective
    • Ribbon Characteristics:
    • Outside diameter: 3.2" (81.3 mm)
    • Standard length: 1476' (450 m) or 984' (300 m)
    • Ratio: 3:1 media roll to ribbon ratios
    • Ribbon width: 2" (51 mm) to 4.33" (110 mm)
    • Ribbon setup: Ribbon wound ink side out
    • ID Core: 1.0" (25.4 mm)
    • Fonts and Graphics:
    • Sets: IBM Code Page 850 International character set
    • Optional European and Asian font sets
    • Supports user-defined fonts and graphics, including custom logos
    • ZPL II drawing commands, including boxes and lines
    • Operating temperature:
    • Thermal transfer: 40° F (5° C) to 104° F (40° C)
    • Direct thermal: 32° F (0° C) to 104° F (40° C)

Media Types & Handling

  • Maximum Label Width: 4.50"
  • Maximum Label Length: 39"
  • Media Type:
    • Continuous Form
    • Fanfold
    • Die-cut Label
    • Notched
    • Tag Stock
    • Perforated Label
    • Black Mark
  • Media Thickness: 10 mil
  • Media Sensor:
    • Transmissive Media Sensor
    • Reflective Media Sensor
  • Label Core Size: 3"
  • Ribbon Core Size: 1"
  • Maximum Roll Diameter: 8"

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC

Fonts & Emulation

  • Language Emulation:
    • ZPL
    • ZPL II

Network & Communication

  • Ethernet: Yes
  • Ethernet Technology: Fast Ethernet

Memory

  • Standard Memory: 8 MB
  • Flash Memory: 2 MB

Display & Graphics

  • Display Screen Type: LCD

Warranty

  • Limited Warranty: 1 Year
