26753 Zebra

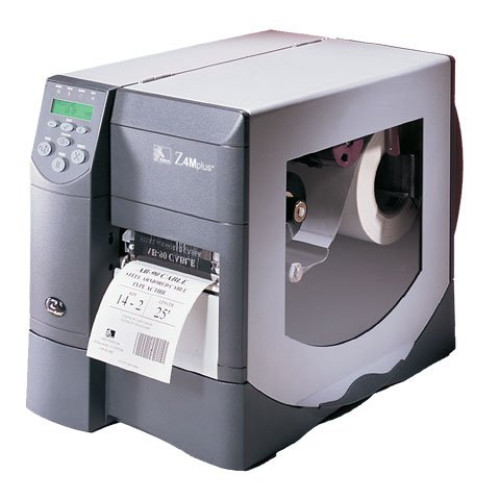

Zebra Z4M Plus Bar code Printer Part # Z4M00-3001-5020

The Z4M Plus Thermal Printer has a personality all its own-along with a rugged look and feel characteristic of a Zebra workhorse. Among Zebra's fastest printers at 10 inches per second this state-of-the-art metal printer with back-lit LCD control panels works hard but is easy on your budget. The Z4M Plus is the price performance leader in its class - combining state-of-the-art technology and ruggedness in one.

Z4M00-3001-5020 - Zebra Z4M Plus Bar code Printer

Part Details: Z4M Plus, Thermal transfer printing, 300 dpi, 4" print width, Serial and Ethernet Interfaces, Rewinder and Peeler, ZPL, 8MB DRAM, 2MB Flash. Includes US power cord. Order cables separately.
InStock

Additional Information

Filter Filter
Interface Options Parallel
Label Core 3 inches
Manufacturer Zebra
Max Label Width 4.25
Max Roll Outer Diameter 8
Maximum Print Width 4.09
Print Method Thermal Transfer
Print Resolution 305 dpi
Print Speed 6
Printer Mobility Not Mobile
Printer Type Industrial
Product Condition New
Ribbon Core 1
  • 203 dpi (8 dots/mm)
  • 4 inch Wide Print width
  • Auto-Calibration
  • Color-Coded Operator Cues
  • Core Diameter: 3 inch (76 mm)
  • Label Ribbon Roll Diameter: 8 inch (203 mm)
  • Maximum Label Width: 4.5 inch (114 mm)
  • Metal Media Cover with enlarged clear window for easy viewing of media and ribbon levels
  • Minimum Label Gap: 2 mm
  • Print width: 4.09 inch (104 mm) maximum
  • Ribbon Core Size: 1.0 inch (25.4 mm) I.D.
  • Ribbon Roll Diameter: 3.2 inch (81.3 mm) maximum
  • Ribbon Width: 2.00 inch (51 mm) to 4.33 inch (110 mm)
  • Rugged Metal Design: Die-Cast Aluminum Frame, Base and Printhead Mechanism
  • Selectable Print speeds at 1 inch (25 mm) increments from 2 inch (50 mm) to 10 inch (254 mm) per second (203 dpi)
  • Standard ZebraLink Real Time Connectivity and Control System
  • Thin Film Printhead with Element Energy Equalizer (E3)
  • Total Thickness: .0023 inch (.058 mm) to .010 inch (0.25 mm)
  • Transmissive Media Sensor and Reflective Sensors

Technical Information

  • Maximum Mono Print Speed: 6 in/s
  • Maximum Print Resolution: 300 dpi
  • Maximum Print Width: 4.09"
  • Recommended Use: Label Print
  • Features:
    • Peel Facility
    • Rewind
  • Barcode Symbology Supported:
    • Codabar
    • Code 11
    • Code 39
    • Code 93
    • EAN-8
    • EAN-13
    • Interleaved 2 of 5
    • Industrial 2 of 5
    • ISBT-128
    • LOGMARS
    • MSI
    • Planet Code
    • Plessey
    • POSTNET
    • RSS
    • Standard 2 of 5
    • UPC 2 or 5 Digit Extension
    • EAN With 2 or 5 Digit Extension
    • UPC-A
    • UPC-E
    • Code 128-A
    • Code 128-B
    • Code 128-C
    • UCC Case Codes
    • Codablock
    • Code 49
    • Data Matrix
    • Maxi Code
    • PDF-417
    • QR Code
    • Micro PDF-417
    • Aztec Code
    • TLC 39

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Product Series: Z Series
  • Brand Name: Zebra
  • Manufacturer: Zebra Technologies Corporation
  • Product Model: Z4Mplus
  • Product Name: Z4Mplus Thermal Label Printer

Physical Characteristics

  • Height: 13.3"
  • Width: 10.9"
  • Depth: 18.7"

Interfaces/Ports

  • Serial Port: Yes
  • Parallel Port: Yes

Other

  • Platform Supported: PC
  • Package Contents:
    • Z4Mplus Label Printer
    • Safety Guide
    • User's CD
    • Power Cord With US Plug
    • Z4Mplus Label Printer
    • Safety Guide
    • User's CD
    • Power Cord With US Plug
  • Certifications & Standards:
    • IEC60950
    • EN55022 Class B
    • EN55024
    • EN61000-3-2
    • EN61000-3-3
    • CULus
    • CE Marking
    • FCC-B
    • ICES-003
    • VCCI
    • C-Tick
    • NOM
    • IRAM
    • CCC
    • GOST-R
    • BSMI
  • Additional Information:
    • 32 bit processor
    • Transmissive/reflective media sensor
    • Metal media cover with large clear window
    • Real time clock
    • Auto-calibration
    • Auto-ranging power supply
    • Color-coded operator cues
    • Ribbon width: 1" to 4.25" Peel/Cutter
    • Print Length: 165"
    • Graphic Features:
    • Supports user-defined fonts and graphics including custom logos

Media Types & Handling

  • Maximum Label Width: 4.25"
  • Maximum Label Length: 39"
  • Media Type:
    • Fanfold
    • Continuous Form
    • Die-cut Label
    • Notched
    • Tag Stock
    • Black Mark
    • Perforated Label
  • Media Thickness: 9.84 mil
  • Media Sensor:
    • Reflective Media Sensor
    • Transmissive Media Sensor
  • Label Core Size: 3"
  • Ribbon Core Size: 1"
  • Maximum Roll Diameter: 8"

Memory

  • Standard Memory: 8 MB
  • Memory Technology: DRAM
  • Flash Memory: 2 MB

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC

Network & Communication

  • Ethernet: Yes
  • Ethernet Technology: Fast Ethernet

Display & Graphics

  • Display Screen Type: LCD

Warranty

  • Limited Warranty: 1 Year

Fonts & Emulation

  • Language Emulation: ZPL
