Newer Version Is Available

ZM600, Thermal transfer printing, 203 dpi, 6" print width, Ethernet/RS-232/Parallel/USB interfaces. Includes US power cord. Interface cables sold separately.
Free Shipping

Product was successfully added to your shopping cart.
8864 Zebra

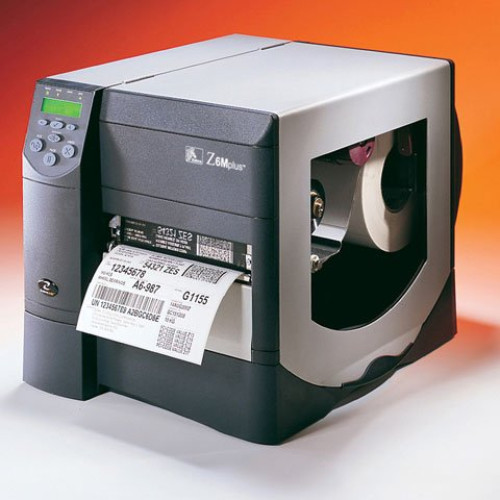

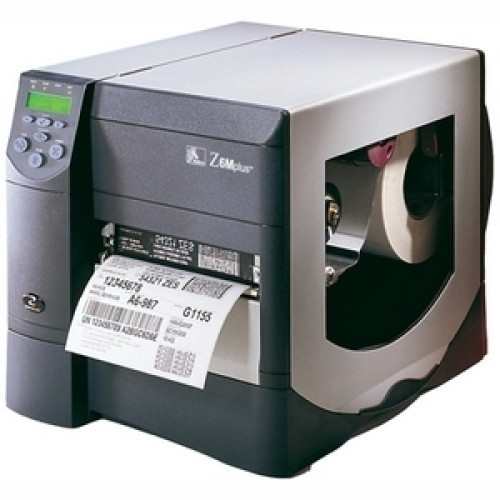

Z6M00-2001-0000 - Zebra Z6M Plus Bar code Printer

Z6M Plus, Thermal transfer, 203 dpi, 10 ips, 6.6" print width, parallel & serial interfaces, 8MB RAM & 2MB flash. Includes ZebraLink & US power cord. Order cables separately. See accessories.
InStock
Free Shipping

Description

The Z6M Plus Thermal Printer has a personality all its own-along with a rugged look and feel characteristic of a Zebra workhorse. Among Zebra's fastest printers at 10 inches per second this state-of-the-art metal printer with back-lit LCD control panels works hard but is easy on your budget. The Z6M Plus is the price performance leader in its class - combining state-of-the-art technology and ruggedness in one.
  • 203 dpi (8 dots/mm)
  • 6 inch Wide Print width
  • Auto-Calibration
  • Color-Coded Operator Cues
  • Core Diameter: 3 inch (76 mm)
  • Label Ribbon Roll Diameter: 8 inch (203 mm)
  • Maximum Label Width: 7 inch (178 mm)
  • Metal Media Cover with enlarged clear window for easy viewing of media and ribbon levels
  • Minimum Label Gap: 2 mm
  • Print width: 6.6 inch (168 mm) maximum
  • Ribbon Core Size: 1.0 inch (25.4 mm) I.D.
  • Ribbon Roll Diameter: 3.2 inch (81.3 mm) maximum
  • Ribbon Width: 2.00
  • Rugged Metal Design: Die-Cast Aluminum Frame, Base and Printhead Mechanism
  • Selectable Print speeds at 1 inch (25 mm) increments from 2 inch (50 mm) to 10 inch (254 mm) per second (203 dpi)
  • Serial and Bi-directional Parallel Ports
  • Standard Back-lit LCD Control Panel
  • Standard ZebraLink Real Time Connectivity and Control System
  • Thin Film Printhead with Element Energy Equalizer (E3)
  • Total Thickness: .0023 inch (.058 mm) to .010 inch (0.25 mm)
  • Transmissive Media Sensor and Reflective Sensors

Additional Information

Print Speed 10
Printer Type Industrial
Print Method Thermal Transfer
Print Resolution 203 dpi
Interface Options Parallel
Maximum Print Width 6.60
Filter Filter
Manufacturer Zebra

Technical Information

  • Print Method:
    • Direct Thermal
    • Thermal Transfer (TT)
    • Direct Thermal (DT)
  • Print Resolution: 203 dpi
  • Print Speed: 10 ips
  • Interfaces:
    • 1 x Serial
    • 1 x Parallel
  • Maximum Print Width: 6.6"
  • Maximum Label Width: 7"
  • Maximum Label Length: 39"
  • Media Sensor:
    • Transmissive
    • Reflective
  • Printer Language:
    • ZPL II
    • ZPL
  • Input Voltage Range: 90 to 265 V AC
  • RAM Memory: 8MB
  • Flash Memory: 2MB
  • Mobile Printer: No

General Information

Physical Characteristics

  • Dimensions:
    • 13.32" (338.33mm) x 13.43" (341.12mm) x 18.69" (475mm)
    • 13.32" (338.33mm) x 13.43" (341.12mm) x x 18.69" (475mm)
  • Weight: 34.7 lb (15.74 kg) - without packaging

Agency Approvals

  • Agency Approvals:
    • IEC60950
    • EN55024 Class B
    • EN55024
    • EN61000-3-2
    • EN61000-3-3
    • cULus
    • CE Marking
    • FCC-B
    • ICES-003
    • VCCI
    • C-Tick
    • NOM
    • IRAM
    • CCC
    • GOST-R
    • BSMI (pending)

Environmental Conditions

  • Temperature:
    • 32°F (0°C) to 104°F (40°C) Operating - Direct Thermal
    • 41°F (5°C) to 104°F (40°C) Operating - Thermal Transfer
    • -40°F (-40°C) to 140°F (60°C) Storage
  • Humidity:
    • 20 to 85% Operating
    • 5 to 85% Storage

Other

  • Package Contents:
    • Z6Mplus Label Printer
    • Safety Guide
    • User's CD
    • Power Cord with US plug

Media Characteristics

  • Maximum Label Roll Diameter: 8"
  • Label Core Size: 3"
  • Ribbon Core Size: 1"
  • Ribbon Setup: Wound Out

Warranty

  • Manufacturer Warranty:
    • 1 Year(s)
    • 1 Year(s) Limited
