21709 Zebra

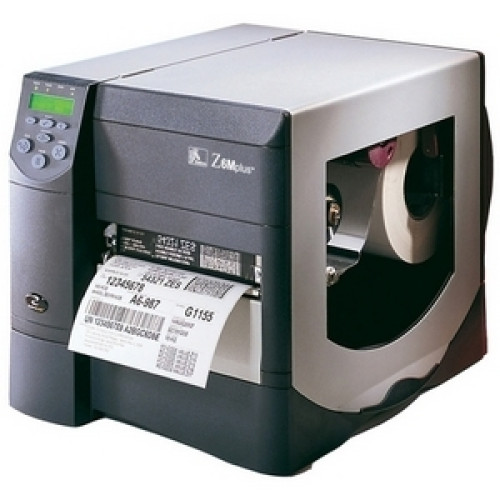

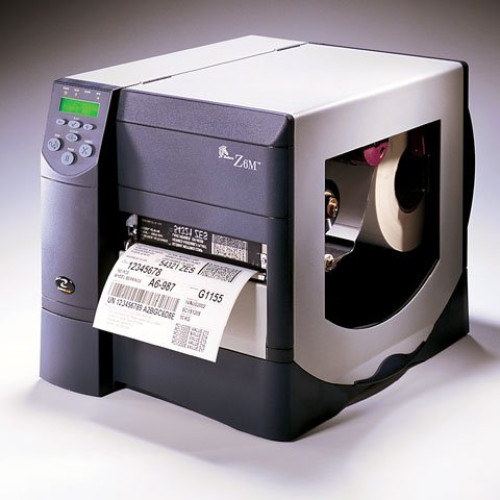

Zebra Z6M Bar code Printer Part # Z6M00-2001-0030

The Z6M Thermal Printer has a personality all its own-along with a rugged look and feel characteristic of a Zebra workhorse. Among Zebra's fastest printers at 10 inches per second this state-of-the-art metal printer with back-lit LCD control panels works hard but is easy on your budget. The Z6M is the price performance leader in its class - combining state-of-the-art technology and ruggedness in one.

Z6M00-2001-0030 - Zebra Z6M Bar code Printer

Part Details: Z6M, Thermal transfer, 203 dpi, 6 ips, 6.6" print width, ZebraNet PrintServer II & serial interfaces, 8MB RAM & 2MB flash. Includes ZPL, ZebraLink & US power cord. Order cables separately. See accessories.
InStock

Additional Information

Filter Filter
Interface Options Ethernet, Serial
Label Core 3 inches
Manufacturer Zebra
Max Label Width 6.75
Max Roll Outer Diameter 8
Maximum Print Width 6.60
Print Method Thermal Transfer
Print Resolution 203 dpi
Print Speed 10
Printer Mobility Not Mobile
Printer Type Industrial
Product Condition New
  • 203 dpi (8 dots/mm)
  • 6 inch Wide Print width
  • Auto-Calibration
  • Color-Coded Operator Cues
  • Core Diameter: 3 inch (76 mm)
  • Label Ribbon Roll Diameter: 8 inch (203 mm)
  • Maximum Label Width: 7 inch (178 mm)
  • Metal Media Cover with enlarged clear window for easy viewing of media and ribbon levels
  • Minimum Label Gap: 2 mm
  • Print width: 6.6 inch (168 mm) maximum
  • Ribbon Core Size: 1.0 inch (25.4 mm) I.D.
  • Ribbon Roll Diameter: 3.2 inch (81.3 mm) maximum
  • Ribbon Width: 2.00
  • Rugged Metal Design: Die-Cast Aluminum Frame, Base and Printhead Mechanism
  • Selectable Print speeds at 1 inch (25 mm) increments from 2 inch (50 mm) to 10 inch (254 mm) per second (203 dpi)
  • Serial and Bi-directional Parallel Ports
  • Standard Back-lit LCD Control Panel
  • Standard ZebraLink Real Time Connectivity and Control System
  • Thin Film Printhead with Element Energy Equalizer (E3)
  • Total Thickness: .0023 inch (.058 mm) to .010 inch (0.25 mm)
  • Transmissive Media Sensor and Reflective Sensors

Technical Information

  • Maximum Mono Print Speed: 10 in/s
  • Maximum Print Resolution: 203 dpi
  • Maximum Print Width: 6.60"
  • Recommended Use: Label Print
  • Barcode Symbology Supported:
    • Codabar
    • Code 11
    • Code 39
    • Code 93
    • EAN-13
    • EAN-8
    • Industrial 2 of 5
    • Interleaved 2 of 5
    • ISBT-128
    • LOGMARS
    • MSI
    • Planet Code
    • Plessey
    • POSTNET
    • RSS
    • Standard 2 of 5
    • UPC 2 or 5 Digit Extension
    • EAN With 2 or 5 Digit Extension
    • UPC-A
    • UPC-E
    • Codablock
    • Code 49
    • Data Matrix
    • Maxi Code
    • PDF-417
    • QR Code
    • Micro PDF-417
    • Aztec Code
    • Code 128-A
    • Code 128-B
    • Code 128-C
    • UCC Case Codes
    • TLC 39

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Product Series: Z Series
  • Brand Name: Zebra
  • Manufacturer: Zebra Technologies Corporation
  • Product Model: Z6Mplus
  • Product Name: Z6Mplus Thermal Label Printer

Physical Characteristics

  • Height: 13.3"
  • Width: 13.4"
  • Depth: 18.7"

Interfaces/Ports

  • Serial Port: Yes
  • Parallel Port: Yes

Other

  • Platform Supported: PC
  • Package Contents:
    • Zebra Z6Mplus Label Printer
    • Power Cord with US Plug
    • Safety Guide
    • User's CD
    • Zebra Z6Mplus Label Printer
    • Power Cord with US Plug
    • Safety Guide
    • User's CD
  • Certifications & Standards:
    • IEC60950
    • EN55022 Class B
    • EN55024
    • EN61000-3-2
    • EN61000-3-3
    • CULus
    • CE
    • FCC-B
    • ICES-003
    • VCCI
    • C-Tick
    • NOM
    • IRAM
    • CCC
    • GOST-R
    • BSMI
  • Additional Information:
    • Real time clock
    • Unicode -Compliant
    • Color-coded operator cues
    • Auto-detectable power supply
    • Zebra's E3 Printhead Energy Control

Media Types & Handling

  • Maximum Label Width: 6.75"
  • Maximum Label Length: 39"
  • Media Type:
    • Fanfold
    • Continuous Form
    • Die-cut Label
    • Notched
    • Tag Stock
    • Black Mark
    • Perforated Label
  • Media Sensor:
    • Reflective Media Sensor
    • Transmissive Media Sensor
  • Label Core Size: 3"
  • Ribbon Core Size: 1"
  • Maximum Roll Diameter: 8"

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC

Memory

  • Standard Memory: 8 MB
  • Memory Technology: DRAM
  • Flash Memory: 2 MB

Network & Communication

  • Ethernet: Yes
  • Ethernet Technology: Fast Ethernet

Warranty

  • Limited Warranty: 1 Year

Fonts & Emulation

  • Language Emulation: ZPL
Extended Details
