234989 Zebra

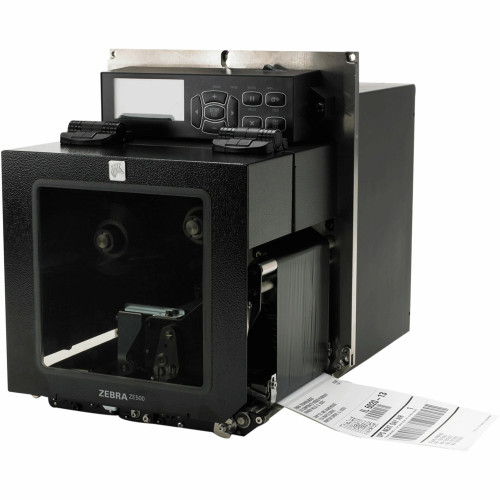

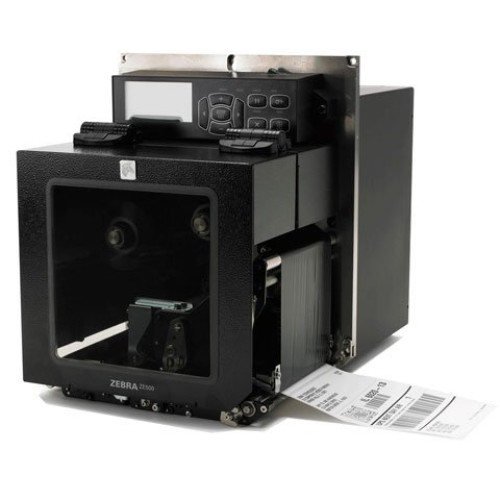

ZE50042-L013000Z - Zebra ZE500 Print Engine

ZE500, 4LH TT 203 dpi Serial Parallel USB 11BG PRINT SVR US CORD
InStock
$7,440.00
Ships In 3-5 Days
Free Shipping
- +

Additional Information

Item Condition New
Manufacturer Zebra

Recommended Accessories

Kit Pivot Bar and Toggle ZE500 -4 RH & LH
$105.00 $77.17
Ships In 3-5 Days
Free Shipping
- +
Platen Roller, Kit Platen Roller ZE500-4 RH & LH
$85.00 $62.47
Ships Today
Free Shipping
- +
Kit Pinch & Peel Rollers ZE500 - 4 RH & LH
$137.00 $111.43
Ships Today
Free Shipping
- +
Kit Media Drive Motor ZE500 LH Series
$357.00 $290.36
Ships In 3-5 Days
Free Shipping
- +
Kit Latch for Print Mechanism ZE500 Series
$48.00 $39.28
Ships In 3-5 Days
Free Shipping
- +

Recommended Labels

Z-Select 4000T, 3.25" x 5,831" Thermal transfer paper label. Continuous roll. 6 roll/case. Also available as a roll (Part# 72287-R).
$160.52
Ships Today
- +
Z-Select 4000T, 2.25" x 2" Thermal transfer paper label. 3,292 labels/roll. 4 roll case. Also available as a roll (Part# 800622-205-R).
$100.51
Ships Today
- +
Z-Select 4000T All-Temp, 4" x 6.50" Thermal transfer paper label. Not perforated. 880 labels/roll. 4 roll case.
$124.28
Ships In 3-5 Days
- +
Z-Select 4000T, 4" x 5,594" Thermal transfer paper label. Continuous roll. 4 roll case. Also available as a roll (Part# 98962-R).
$109.93
Ships Today
- +
Z-Select 4000T, 2.75" x 1.25" Thermal transfer paper label. Not perforated. 4,240 labels/roll, single roll. Also available as a roll (Part# 72282-R).
$187.92
Ships Today
- +

Recommended Printheads

ZE500, Replacement Printhead Kit, 300 dpi, RH & LH, Compatible Printer Model ZE500
$500.00 $425.00
Ships Today
Free Shipping
- +
ZE500, Replacement Printhead Kit, 203 dpi, Compatible Printer Model ZE500
$315.00 $267.75
Ships Today
Free Shipping
- +

Recommended Ribbons

5586 Premium Wax-Resin, 1.57" x 1,476' Black Wax-Resin Ribbon. Compatible with Industrial Printers. 6 ribbon case. Used with polypropylene labels. Also available as a single roll (Part# 05586BK04045-R).
$104.59
Ships Today
- +
5586 Premium Wax-Resin, 3.5" x 1476' Black Wax-Resin Ribbon, Compatible with Industrial printers and Polypropylene Labels, rolls/case: 6, Core Size: 1", Available as a single roll (05586BK08945-R)
$233.06
Ships Today
- +
5586 Premium Wax-Resin, 4" x 1476' Black Wax-Resin Ribbon, Compatible with Industrial printers and Polypropylene Labels, rolls/case: 6, Core Size: 1", Available as a single roll (05586BK10245-R)
$267.69
Ships In 3-5 Days
- +
5586 Premium Wax-Resin, 3.27" x 1476' Black Wax-Resin Ribbon, Compatible with Industrial printers and Polypropylene Labels, rolls/case: 6, Core Size: 1", Available as a single roll (05586BK08345-R)
$217.93
Ships Today
- +
5586 Premium Wax-Resin, 2.36" x 1476' Black Wax-Resin Ribbon, Compatible with Industrial printers and Polypropylene Labels, rolls/case: 6, Core Size: 1", Available as a single roll (05586BK06045-R)
$157.09
Ships Today
- +

Recommended Warranties

Service Contract - 3 year, Essential, Purchased within 30 days of Device, 3 Day TAT NA, MX, 5 DAY TAT ROW, ZE500, 3 Years, Comprehensive
$1,080.00
Ships In 3-5 Days
Free Shipping
- +
Service Contract - 3 year, Select, Purchased within 30 days of Device, Advanced Exchange, ZE500, 3 Years, Non-Comprehensive
$820.00 $632.31
Ships In 3-5 Days
Free Shipping
- +
Service Contract - 3 year, Select, Purchased after 30 days of Device, Advanced Exchange, ZE500, 3 Years, Comprehensive
$2,075.00 $1,600.05
Ships In 3-5 Days
Free Shipping
- +
Service Contract - 1 year, Select, Purchased after 30 days of Device, Advanced Exchange, ZE500, 1 Years, Comprehensive
$715.00 $551.34
Ships In 3-5 Days
Free Shipping
- +
Service Contract - 2 year, Essential, Renewal, NBD TAT, NA MX only, ZE500, 2 Years, Non-Comprehensive
$780.00 $601.47
Ships In 3-5 Days
Free Shipping
- +

Technical Information

  • Maximum Mono Print Speed: 12 in/s
  • Maximum Print Resolution: 203 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 4.10"
  • Recommended Use: Label Print
  • Features:
    • Element Energy Equalizer
    • Real Time Clock
    • Rotatable Display
  • Barcode Symbology Supported:
    • Code 11
    • Code 39
    • Code 93
    • Code 128-A
    • Code 128-B
    • Code 128-C
    • UCC Case Codes
    • ISBT-128
    • UPC-E
    • UPC-A
    • EAN-13
    • EAN-8
    • UPC 2 or 5 Digit Extension
    • EAN With 2 or 5 Digit Extension
    • Plessey
    • POSTNET
    • Standard 2 of 5
    • Industrial 2 of 5
    • Interleaved 2 of 5
    • LOGMARS
    • MSI
    • Codabar
    • Planet Code
    • Codablock
    • PDF-417
    • Code 49
    • Data Matrix
    • Maxi Code
    • QR Code
    • TLC 39
    • Micro PDF
    • RSS-14
    • RSS Composite
    • Aztec Code

General Information

  • Product Type: Thermal Transfer Printer
  • Product Series: ZE500
  • Brand Name: Zebra
  • Manufacturer: Zebra Technologies Corporation
  • Product Model: ZE500-4
  • Product Name: ZE500-4 Label Printer Left-Handed

Physical Characteristics

  • Height: 11.8"
  • Width: 9.6"
  • Depth: 14.9"
  • Form Factor: Desktop
  • Weight (Approximate): 33.95 lb

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes
  • Parallel Port: Yes

Other

  • Platform Supported: PC
  • Package Contents:
    • ZE500-4 Label Printer Left-Handed
    • ZebraNet Connectivity Guide
    • Software & Drivers CD
    • North America Power Cords
    • User's Guide
    • ZPL II Programming Guide
    • ZE500-4 Label Printer Left-Handed
    • ZebraNet Connectivity Guide
    • Software & Drivers CD
    • North America Power Cords
    • User's Guide
    • ZPL II Programming Guide
  • Certifications & Standards:
    • EN55022
    • Class A
    • EN55024
    • EN61000-3-2, 3-3
    • NRTL
    • CE
    • FCC A
    • ICES-003
    • VCCI
    • C-Tick
    • CCC
    • NOM
    • Gost-R
    • S- Mark
    • KCC
    • BSMI
    • Unicode

Media Types & Handling

  • Maximum Label Width: 4.49"
  • Maximum Label Length: 39"
  • Media Type:
    • Black Mark
    • Continuous Label
    • Die-cut Label
  • Media Thickness: 10 mil
  • Media Sensor:
    • Transmissive Media Sensor
    • Reflective Media Sensor
  • Label Core Size: 1"
  • Ribbon Core Size: 1"

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC
  • Power Source: AC Supply

Network & Communication

  • Ethernet: Yes
  • Wireless LAN: Yes
  • Ethernet Technology: Fast Ethernet
  • Wireless LAN Standard: IEEE 802.11b/g

Fonts & Emulation

  • Language Emulation:
    • ZPL
    • ZPL II
    • ZPL 1

Memory

  • Standard Memory: 16 MB
  • Memory Technology: SDRAM
  • Flash Memory: 64 MB

Display & Graphics

  • Display Screen Type: LCD
