234990 Zebra

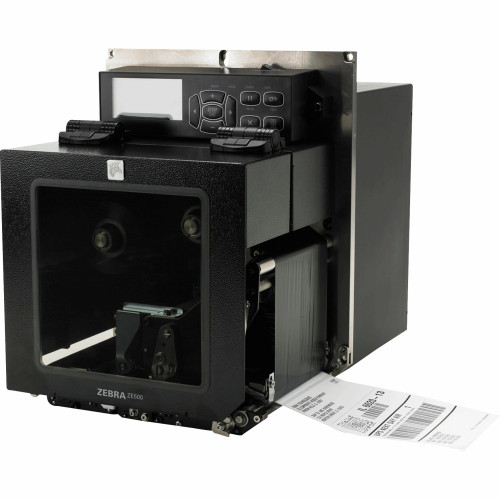

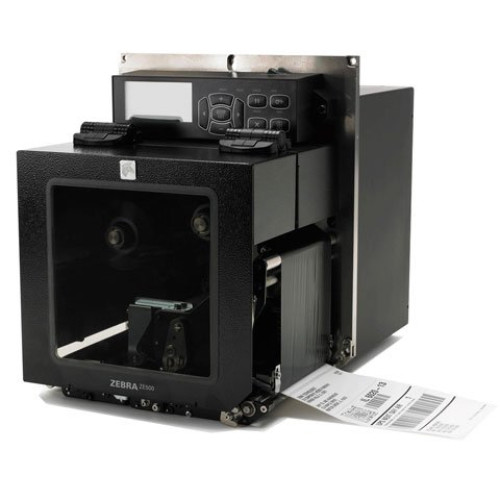

Zebra ZE500 Print Engine Part # ZE50043-L013000Z

The ZE500 series takes an innovative approach to OEM print engines. Leveraging customer research, the design focuses on ease of use, integration and servicing. Built with the customer in mind, the ZE500 is designed to keep mission-critical print-and-apply applications operating with no interruptions.

ZE50043-L013000Z - Zebra ZE500 Print Engine

Part Details: ZE500, TT LH 300 DPI Serial Parallel USB INT 11BG ZebraNet 4IN PRINT SERVER
InStock
Price: $7,680.00
Ship Free in 3-5 Days

Additional Information

Manufacturer Zebra
Product Condition New

Technical Information

  • Maximum Mono Print Speed: 12 in/s
  • Maximum Print Resolution: 300 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 4.10"
  • Recommended Use: Label Print
  • Features:
    • Element Energy Equalizer
    • Real Time Clock
    • Rotatable Display
  • Barcode Symbology Supported:
    • Code 11
    • Code 39
    • Code 93
    • Code 128-A
    • Code 128-B
    • Code 128-C
    • UCC Case Codes
    • ISBT-128
    • UPC-E
    • UPC-A
    • EAN-13
    • EAN-8
    • UPC 2 or 5 Digit Extension
    • EAN With 2 or 5 Digit Extension
    • Plessey
    • POSTNET
    • Standard 2 of 5
    • Industrial 2 of 5
    • Interleaved 2 of 5
    • LOGMARS
    • MSI
    • Codabar
    • Planet Code
    • Codablock
    • PDF-417
    • Code 49
    • Data Matrix
    • Maxi Code
    • QR Code
    • TLC 39
    • Micro PDF
    • RSS-14
    • RSS Composite
    • Aztec Code

General Information

  • Product Type: Thermal Transfer Printer
  • Product Series: ZE500
  • Brand Name: Zebra
  • Manufacturer: Zebra Technologies Corporation
  • Product Model: ZE500-4
  • Product Name: ZE500-4 Label Printer Left-Handed

Physical Characteristics

  • Height: 11.8"
  • Width: 9.6"
  • Depth: 14.9"
  • Form Factor: Desktop
  • Weight (Approximate): 33.95 lb

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes
  • Parallel Port: Yes

Other

  • Platform Supported: PC
  • Package Contents:
    • ZE500-4 Label Printer Left-Handed
    • ZebraNet Connectivity Guide
    • Software & Drivers CD
    • North America Power Cord
    • User's Guide
    • ZPL II Programming Guide
    • ZE500-4 Label Printer Left-Handed
    • ZebraNet Connectivity Guide
    • Software & Drivers CD
    • North America Power Cord
    • User's Guide
    • ZPL II Programming Guide
  • Certifications & Standards:
    • IEC 60950-1
    • EN55022
    • Class A
    • EN55024
    • EN61000-3-2, 3-3
    • NRTL
    • CE
    • FCC A
    • ICES-003
    • VCCI
    • C-Tick
    • CCC
    • NOM
    • Gost-R
    • S- Mark
    • KCC
    • BSMI
    • Unicode

Media Types & Handling

  • Maximum Label Width: 4.49"
  • Maximum Label Length: 39"
  • Media Type:
    • Black Mark
    • Continuous Label
    • Die-cut Label
  • Media Thickness: 10 mil
  • Media Sensor:
    • Transmissive Media Sensor
    • Reflective Media Sensor
  • Ribbon Core Size: 1"

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC
  • Power Source: AC Supply

Network & Communication

  • Ethernet: Yes
  • Wireless LAN: Yes
  • Ethernet Technology: Fast Ethernet
  • Wireless LAN Standard: IEEE 802.11b/g

Memory

  • Standard Memory: 16 MB
  • Memory Technology: SDRAM
  • Flash Memory: 64 MB

Fonts & Emulation

  • Language Emulation:
    • ZPL
    • XML

Display & Graphics

  • Display Screen Type: LCD

Warranty

  • Limited Warranty: 1 Year
Extended Details

Recommended Accessories

Recommended Labels

  • Zebra Z-Select 4000T Label (72287)

    Z-Select 4000T, 3.25" x 5,831" Thermal transfer paper label. Continuous roll. 6 roll/case. Also available as a roll (Part# 72287-R).
    Price: $165.25
    In Stock
  • Zebra Z-Select 4000T Label (800622-205)

    Z-Select 4000T, 2.25" x 2" Thermal transfer paper label. 3,292 labels/roll. 4 roll case. Also available as a roll (Part# 800622-205-R).
    Price: $103.49
    In Stock
  • Zebra Z-Select 4000T Label (72378)

    Z-Select 4000T All-Temp, 4" x 6.50" Thermal transfer paper label. Not perforated. 880 labels/roll. 4 roll case.
    Price: $123.03
    Ships in 3-5 Days
  • Zebra Z-Select 4000T Label (98962)

    Z-Select 4000T, 4" x 5,594" Thermal transfer paper label. Continuous roll. 4 roll case. Also available as a roll (Part# 98962-R).
    Price: $113.20
    In Stock
  • Zebra Z-Select 4000T Label (72282)

    Z-Select 4000T, 2.75" x 1.25" Thermal transfer paper label. Not perforated. 4,240 labels/roll, single roll. Also available as a roll (Part# 72282-R).
    Price: $193.49
    In Stock

Recommended Printheads

  • Zebra ZE500 Print head (P1046696-099)

    ZE500, Replacement Printhead Kit, 203 dpi, Compatible Printer Model ZE500
    MSRP: $315.00 Price: $267.75
    In Stock - Ships Free
  • Zebra ZE500 Print head (P1046696-016)

    ZE500, Replacement Printhead Kit, 300 dpi, RH & LH, Compatible Printer Model ZE500
    MSRP: $500.00 Price: $425.00
    In Stock - Ships Free

Recommended Ribbons

  • Zebra 5586 Premium Wax-Resin Ribbon (05586BK04045)

    5586 Premium Wax-Resin, 1.57" x 1,476' Black Wax-Resin Ribbon. Compatible with Industrial Printers. 6 ribbon case. Used with polypropylene labels. Also available as a single roll (Part# 05586BK04045-R).
    Price: $103.54
    Ships in 3-5 Days
  • Zebra 5586 Premium Wax-Resin Ribbon (05586BK08945)

    5586 Premium Wax-Resin, 3.5" x 1476' Black Wax-Resin Ribbon, Compatible with Industrial printers and Polypropylene Labels, rolls/case: 6, Core Size: 1", Available as a single roll (05586BK08945-R)
    Price: $230.72
    In Stock
  • Zebra 5586 Premium Wax-Resin Ribbon (05586BK10245)

    5586 Premium Wax-Resin, 4" x 1476' Black Wax-Resin Ribbon, Compatible with Industrial printers and Polypropylene Labels, rolls/case: 6, Core Size: 1", Available as a single roll (05586BK10245-R)
    Price: $265.00
    In Stock
  • Zebra 5586 Premium Wax-Resin Ribbon (05586BK08345)

    5586 Premium Wax-Resin, 3.27" x 1476' Black Wax-Resin Ribbon, Compatible with Industrial printers and Polypropylene Labels, rolls/case: 6, Core Size: 1", Available as a single roll (05586BK08345-R)
    Price: $215.74
    In Stock
  • Zebra 5586 Premium Wax-Resin Ribbon (05586BK06045)

    5586 Premium Wax-Resin, 2.36" x 1476' Black Wax-Resin Ribbon, Compatible with Industrial printers and Polypropylene Labels, rolls/case: 6, Core Size: 1", Available as a single roll (05586BK06045-R)
    Price: $156.46
    In Stock

Recommended Warranties

  • Zebra ZE500 Service Contract (Z1AE-ZE50-3C0)

    Service Contract - 3 year, Essential, Purchased within 30 days of Device, 3 Day TAT NA, MX, 5 DAY TAT ROW, ZE500, 3 Years, Comprehensive
    MSRP: $1,080.00 Price: $832.80
    Ship Free in 3-5 Days
  • Zebra ZE500 Service Contract (Z1AS-ZE50-300)

    Service Contract - 3 year, Select, Purchased within 30 days of Device, Advanced Exchange, ZE500, 3 Years, Non-Comprehensive
    MSRP: $820.00 Price: $632.31
    Ship Free in 3-5 Days
  • Zebra ZE500 Service Contract (Z1BS-ZE50-3C0)

    Service Contract - 3 year, Select, Purchased after 30 days of Device, Advanced Exchange, ZE500, 3 Years, Comprehensive
    MSRP: $2,075.00 Price: $1,600.05
    Ship Free in 3-5 Days
  • Zebra ZE500 Service Contract (Z1BS-ZE50-1C0)

    Service Contract - 1 year, Select, Purchased after 30 days of Device, Advanced Exchange, ZE500, 1 Years, Comprehensive
    MSRP: $715.00 Price: $551.34
    Ship Free in 3-5 Days
  • Zebra ZE500 Service Contract (Z1RF-ZE50-200)

    Service Contract - 2 year, Essential, Renewal, NBD TAT, NA MX only, ZE500, 2 Years, Non-Comprehensive
    MSRP: $780.00 Price: $601.47
    Ship Free in 3-5 Days
