234985 Zebra

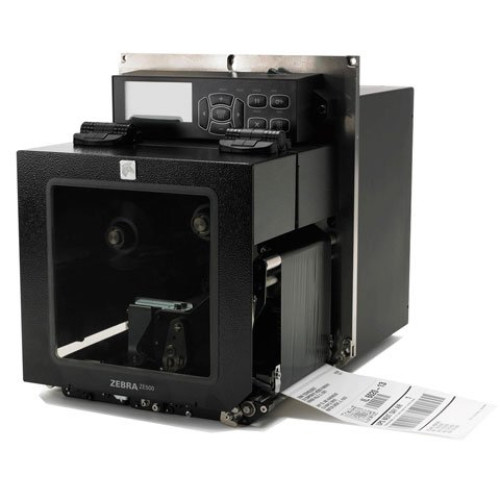

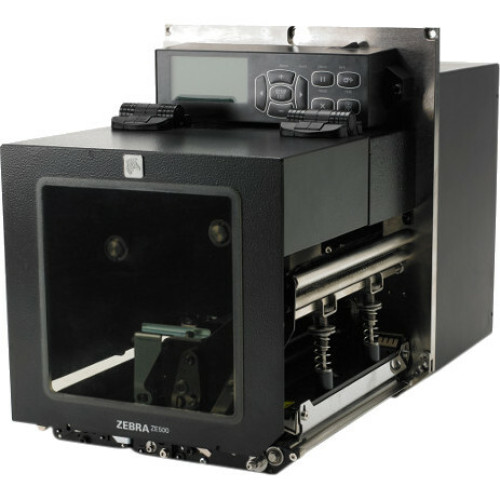

Zebra ZE500 Print Engine Part # ZE50062-L010000Z

The ZE500 series takes an innovative approach to OEM print engines. Leveraging customer research, the design focuses on ease of use, integration and servicing. Built with the customer in mind, the ZE500 is designed to keep mission-critical print-and-apply applications operating with no interruptions.

ZE50062-L010000Z - Zebra ZE500 Print Engine

Part Details: ZE500, Thermal transfer Print Engine, Left Hand, Print width - 6", dpi - 203, Interface Options - Serial (RS-232), Parallel, USB and Ethernet, Installation available upon request
InStock
MSRP: $5,380.00 Price: $4,970.00
In Stock - Ships Free

Additional Information

Interface Options Ethernet, Parallel, Serial (RS-232), USB
Manufacturer Zebra
Print Orientation Left Hand
Print Resolution 203 dpi
Print Width 6"
Product Condition New
Resident Fonts 8 Bit map

Technical Information

  • Maximum Mono Print Speed: 12 in/s
  • Maximum Print Resolution: 203 dpi
  • Print Color: Monochrome
  • Recommended Use: Label Print
  • Features:
    • Real Time Clock
    • Element Energy Equalizer
    • Rotatable Display
  • Barcode Symbology Supported:
    • Code 11
    • Code 39
    • Code 93
    • Code 128-A
    • Code 128-B
    • Code 128-C
    • UCC Case Codes
    • ISBT-128
    • UPC-E
    • UPC-A
    • EAN-13
    • EAN-8
    • UPC 2 or 5 Digit Extension
    • EAN With 2 or 5 Digit Extension
    • Plessey
    • POSTNET
    • Standard 2 of 5
    • Industrial 2 of 5
    • Interleaved 2 of 5
    • LOGMARS
    • MSI
    • Codabar
    • Planet Code
    • Codablock
    • PDF-417
    • Code 49
    • Data Matrix
    • Maxi Code
    • QR Code
    • TLC 39
    • Micro PDF
    • RSS-14
    • RSS Composite
    • Aztec Code

General Information

  • Product Type: Thermal Transfer Printer
  • Product Series: ZE500
  • Brand Name: Zebra
  • Manufacturer: Zebra Technologies Corporation
  • Product Model: ZE500-6
  • Product Name: ZE500-6 Label Printer Left-Handed

Physical Characteristics

  • Height: 11.8"
  • Width: 9.6"
  • Depth: 15"
  • Form Factor: Wall Mount
  • Weight (Approximate): 33.95 lb

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes
  • Parallel Port: Yes

Other

  • Package Contents:
    • ZE500-6 Label Printer Left-Handed
    • Safety Guide
    • User's CD
    • North American Edition 120 VAC Power Cord
    • ZE500-6 Label Printer Left-Handed
    • Safety Guide
    • User's CD
    • North American Edition 120 VAC Power Cord
  • Certifications & Standards:
    • IEC 60950-1
    • EN55022
    • Class A
    • EN55024
    • EN61000-3-2, 3-3
    • NRTL
    • CE
    • FCC A
    • ICES-003
    • VCCI
    • C-Tick
    • CCC
    • NOM
    • Gost-R
    • S- Mark
    • KCC
    • BSMI
    • Unicode

Media Types & Handling

  • Maximum Label Width: 7.10"
  • Maximum Label Length: 39"
  • Media Type:
    • Black Mark
    • Continuous Label
    • Die-cut Label
  • Media Thickness: 12 mil
  • Media Sensor:
    • Transmissive Media Sensor
    • Reflective Media Sensor
  • Ribbon Core Size: 1"

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC
  • Power Source: AC Supply

Memory

  • Standard Memory: 16 MB
  • Memory Technology: SDRAM
  • Flash Memory: 64 MB

Fonts & Emulation

  • Language Emulation:
    • ZPL
    • XML

Network & Communication

  • Ethernet: Yes
  • Ethernet Technology: Fast Ethernet

Warranty

  • Limited Warranty: 1 Year

Display & Graphics

  • Display Screen Type: LCD
Extended Details
