234987 Zebra

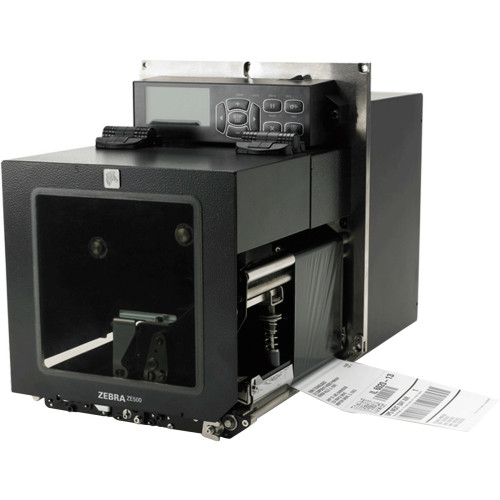

ZE50063-L010000Z - Zebra ZE500 Print Engine

ZE500, Thermal transfer Print Engine, Left Hand, Print width - 6", dpi - 300, Interface Options - Serial (RS-232), Parallel, USB and Ethernet, Installation available upon request
InStock
$5,580.00 $5,156.67
Ships Today
Free Shipping
- +

Additional Information

Resident Fonts 8 Bit map
Print Orientation Left Hand
Print Width 6"
Interface Options Ethernet
Item Condition New
Manufacturer Zebra

Recommended Accessories

Recommended Labels

  • Zebra Z-Select 4000T Label (72287)

    Z-Select 4000T, 3.25" x 5,831" Thermal transfer paper label. Continuous roll. 6 roll/case. Also available as a roll (Part# 72287-R).
    $160.52
    Ships Today
    - +
  • Zebra Z-Select 4000T Label (800622-205)

    Z-Select 4000T, 2.25" x 2" Thermal transfer paper label. 3,292 labels/roll. 4 roll case. Also available as a roll (Part# 800622-205-R).
    $100.51
    Ships Today
    - +
  • Zebra Z-Select 4000T Label (72378)

    Z-Select 4000T All-Temp, 4" x 6.50" Thermal transfer paper label. Not perforated. 880 labels/roll. 4 roll case.
    $124.28
    Ships In 3-5 Days
    - +
  • Zebra Z-Select 4000T Label (98962)

    Z-Select 4000T, 4" x 5,594" Thermal transfer paper label. Continuous roll. 4 roll case. Also available as a roll (Part# 98962-R).
    $109.93
    Ships Today
    - +
  • Zebra Z-Select 4000T Label (72282)

    Z-Select 4000T, 2.75" x 1.25" Thermal transfer paper label. Not perforated. 4,240 labels/roll, single roll. Also available as a roll (Part# 72282-R).
    $187.92
    Ships Today
    - +

Recommended Printheads  | View All Options

Recommended Ribbons  | View All Options

  • Zebra 5586 Premium Wax-Resin Ribbon (05586BK04045)

    5586 Premium Wax-Resin, 1.57" x 1,476' Black Wax-Resin Ribbon. Compatible with Industrial Printers. 6 ribbon case. Used with polypropylene labels. Also available as a single roll (Part# 05586BK04045-R).
    $104.59
    Ships Today
    - +
  • Zebra 5586 Premium Wax-Resin Ribbon (05586BK08945)

    5586 Premium Wax-Resin, 3.5" x 1476' Black Wax-Resin Ribbon, Compatible with Industrial printers and Polypropylene Labels, rolls/case: 6, Core Size: 1", Available as a single roll (05586BK08945-R)
    $233.06
    Ships Today
    - +
  • Zebra 5586 Premium Wax-Resin Ribbon (05586BK10245)

    5586 Premium Wax-Resin, 4" x 1476' Black Wax-Resin Ribbon, Compatible with Industrial printers and Polypropylene Labels, rolls/case: 6, Core Size: 1", Available as a single roll (05586BK10245-R)
    $267.69
    Ships In 3-5 Days
    - +
  • Zebra 5586 Premium Wax-Resin Ribbon (05586BK08345)

    5586 Premium Wax-Resin, 3.27" x 1476' Black Wax-Resin Ribbon, Compatible with Industrial printers and Polypropylene Labels, rolls/case: 6, Core Size: 1", Available as a single roll (05586BK08345-R)
    $217.93
    Ships Today
    - +
  • Zebra 5586 Premium Wax-Resin Ribbon (05586BK06045)

    5586 Premium Wax-Resin, 2.36" x 1476' Black Wax-Resin Ribbon, Compatible with Industrial printers and Polypropylene Labels, rolls/case: 6, Core Size: 1", Available as a single roll (05586BK06045-R)
    $157.09
    Ships Today
    - +

Recommended Warranties

Technical Information

  • Maximum Mono Print Speed: 10 in/s
  • Maximum Print Resolution: 300 dpi
  • Print Color: Monochrome
  • Recommended Use: Label Print
  • Features:
    • Real Time Clock
    • Element Energy Equalizer
    • Rotatable Display
  • Barcode Symbology Supported:
    • Code 11
    • Code 39
    • Code 93
    • Code 128-A
    • Code 128-B
    • Code 128-C
    • UCC Case Codes
    • ISBT-128
    • UPC-E
    • UPC-A
    • EAN-13
    • EAN-8
    • UPC 2 or 5 Digit Extension
    • EAN With 2 or 5 Digit Extension
    • Plessey
    • POSTNET
    • Standard 2 of 5
    • Industrial 2 of 5
    • Interleaved 2 of 5
    • LOGMARS
    • MSI
    • Codabar
    • Planet Code
    • Codablock
    • PDF-417
    • Code 49
    • Data Matrix
    • Maxi Code
    • QR Code
    • TLC 39
    • Micro PDF
    • RSS-14
    • RSS Composite
    • Aztec Code

General Information

  • Product Type: Thermal Transfer Printer
  • Product Series: ZE500
  • Brand Name: Zebra
  • Manufacturer: Zebra Technologies Corporation
  • Product Model: ZE500-6
  • Product Name: ZE500-6 Label Printer Left-Handed

Physical Characteristics

  • Height: 11.8"
  • Width: 9.6"
  • Depth: 15"
  • Form Factor: Wall Mount
  • Weight (Approximate): 33.95 lb

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes
  • Parallel Port: Yes

Other

  • Package Contents:
    • ZE500-6 Label Printer Left-Handed
    • Safety Guide
    • User's CD
    • North American Edition 120 VAC Power Cord
    • ZE500-6 Label Printer Left-Handed
    • Safety Guide
    • User's CD
    • North American Edition 120 VAC Power Cord
  • Certifications & Standards:
    • IEC 60950-1
    • EN55022
    • Class A
    • EN55024
    • EN61000-3-2, 3-3
    • NRTL
    • CE
    • FCC A
    • ICES-003
    • VCCI
    • C-Tick
    • CCC
    • NOM
    • Gost-R
    • S- Mark
    • KCC
    • BSMI
    • Unicode

Media Types & Handling

  • Maximum Label Width: 7.10"
  • Maximum Label Length: 39"
  • Media Type:
    • Black Mark
    • Continuous Label
    • Die-cut Label
  • Media Thickness: 12 mil
  • Media Sensor:
    • Transmissive Media Sensor
    • Reflective Media Sensor
  • Ribbon Core Size: 1"

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC
  • Power Source: AC Supply

Memory

  • Standard Memory: 16 MB
  • Memory Technology: SDRAM
  • Flash Memory: 64 MB

Fonts & Emulation

  • Language Emulation:
    • ZPL
    • XML

Network & Communication

  • Ethernet: Yes
  • Ethernet Technology: Fast Ethernet

Warranty

  • Limited Warranty: 1 Year

Display & Graphics

  • Display Screen Type: LCD
