Zebra ZT230 Barcode Label Printer Zebra ZT230 Barcode Label Printer Zebra ZT230 Barcode Label Printer Zebra ZT230 Barcode Label Printer Zebra ZT230 Barcode Label Printer

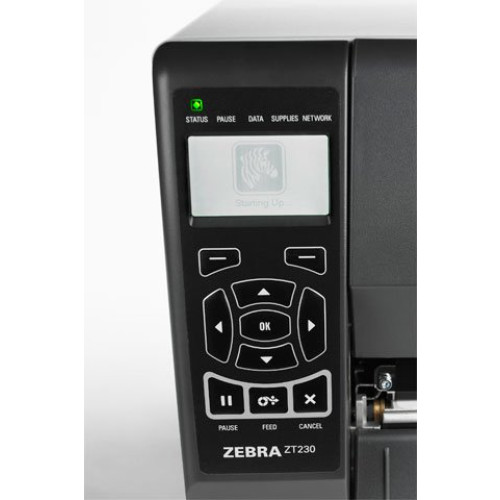

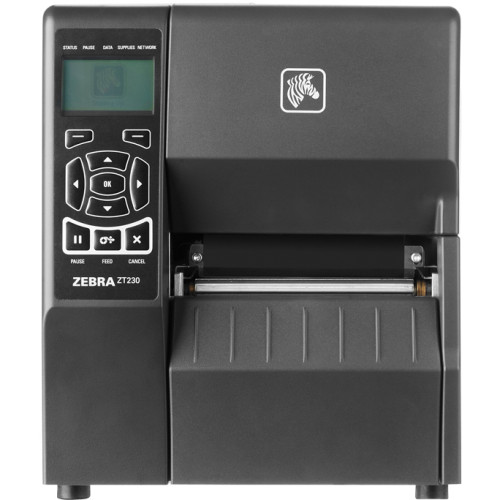

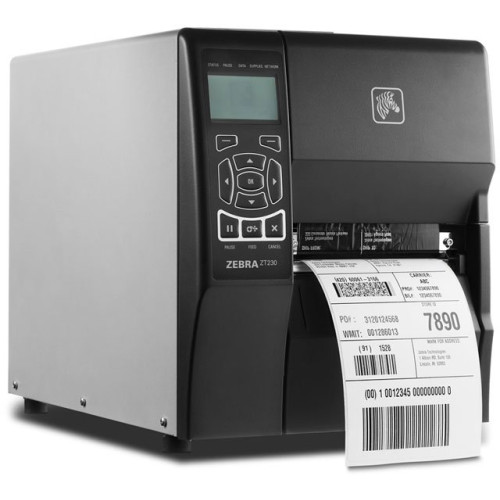

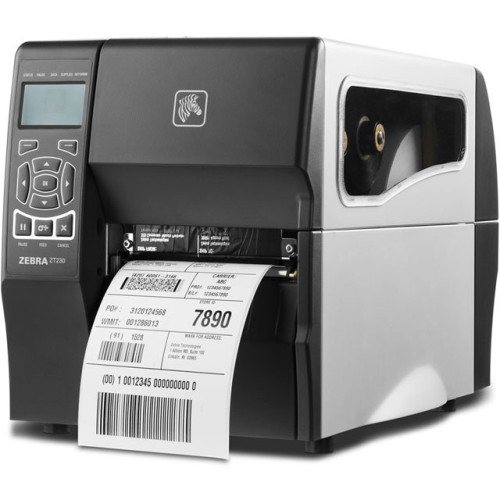

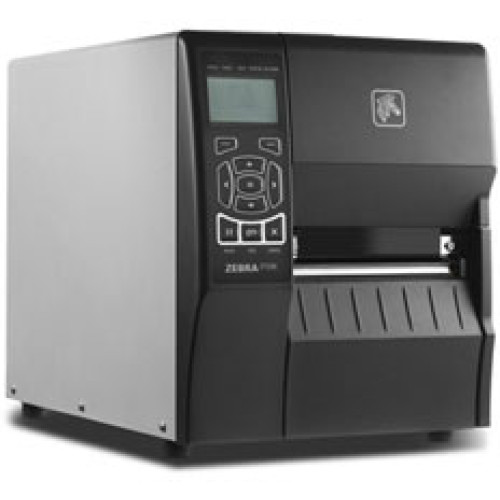

Zebra ZT230 Barcode Label Printer
Part #: ZT23042-T11C00FZ | SKU: ZEB196361

Introducing Zebra's ZT230 Industrial Printers, Zebra's rugged industrial printers that incorporate extensive customer feedback and the learnings from legacy printers�creating innovative printers with a space-saving design. Featuring Zebra's Link-OS environment, the ZT230 delivers users with effortless setup, intuitive operation and easy service and maintenance. Whether you are adopting barcode technology for the first time or upgrading existing printer models, the ZT230 is the right choice for a variety of labeling applications. These innovative printers deliver many user benefits, and they are ENERGY STAR qualified to save you money throughout their lifecycle. With its rugged all-metal case for long-lasting use, the ZT230 offers a graphical LCD user interface for easy printer setup and control, and S4M replacement that easily integrates into your environment. The ZT230 is ideal for barcode-labeling applications requiring more frequent format or printer setting changes.

Zebra ZT230 Barcode Label Printer

Part Details: Thermal Transfer printing, 203 dpi, 4" print width, Serial, USB, and Wi-Fi (802.11n - Wordlwide) Interfaces, Peeler, and US Power cord. Cables sold separately.
Need a different version of the Zebra ZT230 Barcode Label Printer? View all 80 configurations

Additional Information

Included Features EPL2
Interface Options Serial (RS-232), USB, Wi-Fi
Manufacturer Zebra
Max Roll Outer Diameter 6, 8
Model Name ZT230
Print Resolution 203 dpi
Print Speed 6 ips
Printer Type Industrial
Ribbon Core Size 1 inch
Zebra ZT230 Specs Zebra ZT230 Specs (pdf) Zebra ZT230 Driver Zebra ZT230 Driver (download)

Technical Information

  • Maximum Mono Print Speed: 6 in/s
  • Peel Facility: Yes
  • Maximum Print Resolution: 203 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 4.09"
  • Recommended Use: Label Print
  • Features:
    • Clear Bi-fold Media Side Door
    • Bi-color LED
    • Icon-graphics
    • Element Energy Equalizer
    • Peel Facility
  • Barcode Symbology Supported:
    • Code 11
    • Code 39
    • Code 93
    • Code 128-A
    • Code 128-B
    • Code 128-C
    • UCC Case Codes
    • ISBT-128
    • UPC-A
    • UPC-E
    • EAN-13
    • EAN-8
    • EAN With 2 or 5 Digit Extension
    • UPC 2 or 5 Digit Extension
    • Plessey
    • POSTNET
    • Standard 2 of 5
    • Industrial 2 of 5
    • Interleaved 2 of 5
    • LOGMARS
    • MSI
    • RSS Composite
    • Planet Code
    • Codablock
    • PDF-417
    • Code 49
    • Data Matrix
    • Maxi Code
    • QR Code
    • TLC 39
    • Macro PDF
    • RSS-14
    • Aztec Code
    • Macro PDF-417

General Information

  • Product Type: Direct Thermal Printer
  • Product Series: ZT200
  • Brand Name: Zebra
  • Manufacturer: Zebra Technologies Corporation
  • Product Model: ZT230
  • Product Name: ZT230 Industrial Printer

Physical Characteristics

  • Height: 10.9"
  • Width: 9.5"
  • Depth: 17"
  • Form Factor: Desktop
  • Weight (Approximate): 20 lb

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority:
    • ENERGY STAR
    • RoHS
  • Platform Supported: PC
  • Package Contents:
    • ZT230 Industrial Printer
    • Power Cord with US Plug
    • ZT230 Industrial Printer
    • Power Cord with US Plug
  • Certifications & Standards:
    • IEC 60950
    • EN 55022 Class B
    • EN55024
    • EN 61000-3-2
    • EN 61000-3-3
    • UL
    • CE Marking
    • FCC-B
    • ICES-003
    • VCCI
    • C-Tick
    • NOM
    • IRAM
    • CCC
    • GOST-R
    • Unicode
    • KCC
    • BSMI
    • UkrSepro

Media Types & Handling

  • Maximum Label Width: 4.50"
  • Maximum Label Length: 39"
  • Media Type:
    • Continuous Label
    • Die-cut Label
    • Notch
    • Black Mark
  • Media Thickness: 10 mil
  • Media Sensor:
    • Transmissive Media Sensor
    • Reflective Media Sensor
  • Label Core Size: 3"
  • Maximum Roll Diameter: 8"

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC
  • Power Source: AC Supply

Memory

  • Standard Memory: 128 MB
  • Memory Technology: DRAM
  • Flash Memory: 128 MB

Network & Communication

  • Wireless LAN: Yes
  • Wireless LAN Standard: IEEE 802.11n

Display & Graphics

  • Display Screen Type: LCD

Warranty

  • Limited Warranty: 1 Year

Fonts & Emulation

  • Language Emulation: ZPL
